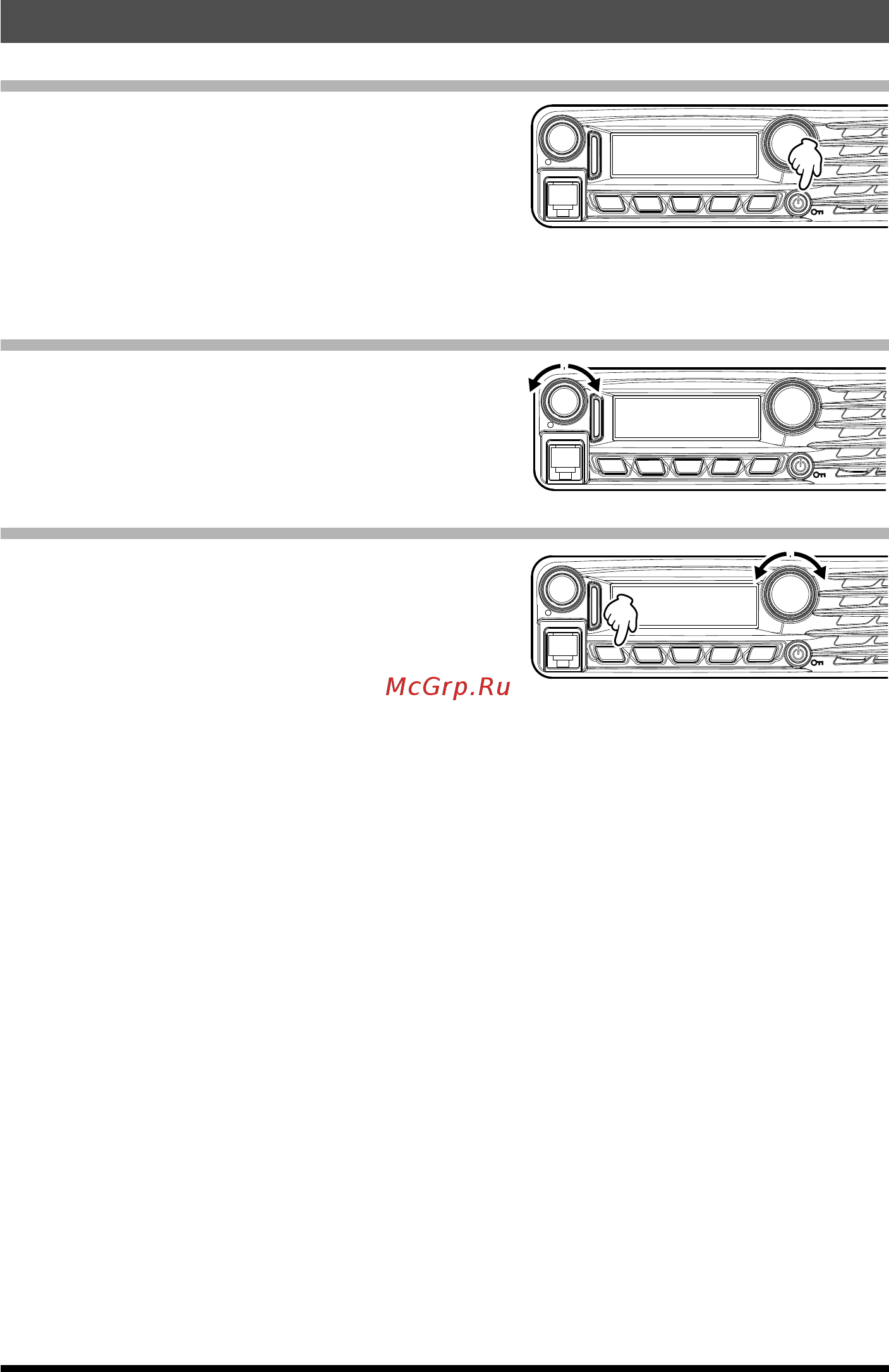

14 FTM-3100R Operating Manual
Basic Operation
Turning the Transceiver ON and OFF
1. To turn the transceiver ON, press and hold
the PWR/LOCK key for one second.
2. To turn the transceiver OFF, again press and
hold the PWR/LOCK key for one second.
VOL
DIAL
DW MW
SETUP
REV V/MMHz
SQL
TXPO
You can compose any desired Opening Message (up to 8 characters) via Setup Menu
Item “20 OPEN MSG” see page 30 for details.
Adjusting the Audio Volume Level
Rotate the VOL knob to adjust the receiver
volume. Clock-wise rotation increases the audio
output level.
VOL
DIAL
DW MW
SETUP
REV V/MMHz
SQL
TXPO
Adjusting the Squelch Setting
1. Press the
[
SQL
]
key, and then rotate the
DAIL knob to select the Squelch level.
2. Press the
[
SQL
]
key again.
Note: A special “RF Squelch” feature is pro-
vided on this radio. This feature al-
lows setting the squelch so that only
signals exceeding a certain S-meter
level will open the squelch. For de-
tails, refer to the Advanced Manual
(download from the Yaesu website).
VOL
DIAL
DW MW
SETUP
REV V/MMHz
SQL
TXPO
