16
Basic Operation
FTM-3100R Operating Manual
Transmission

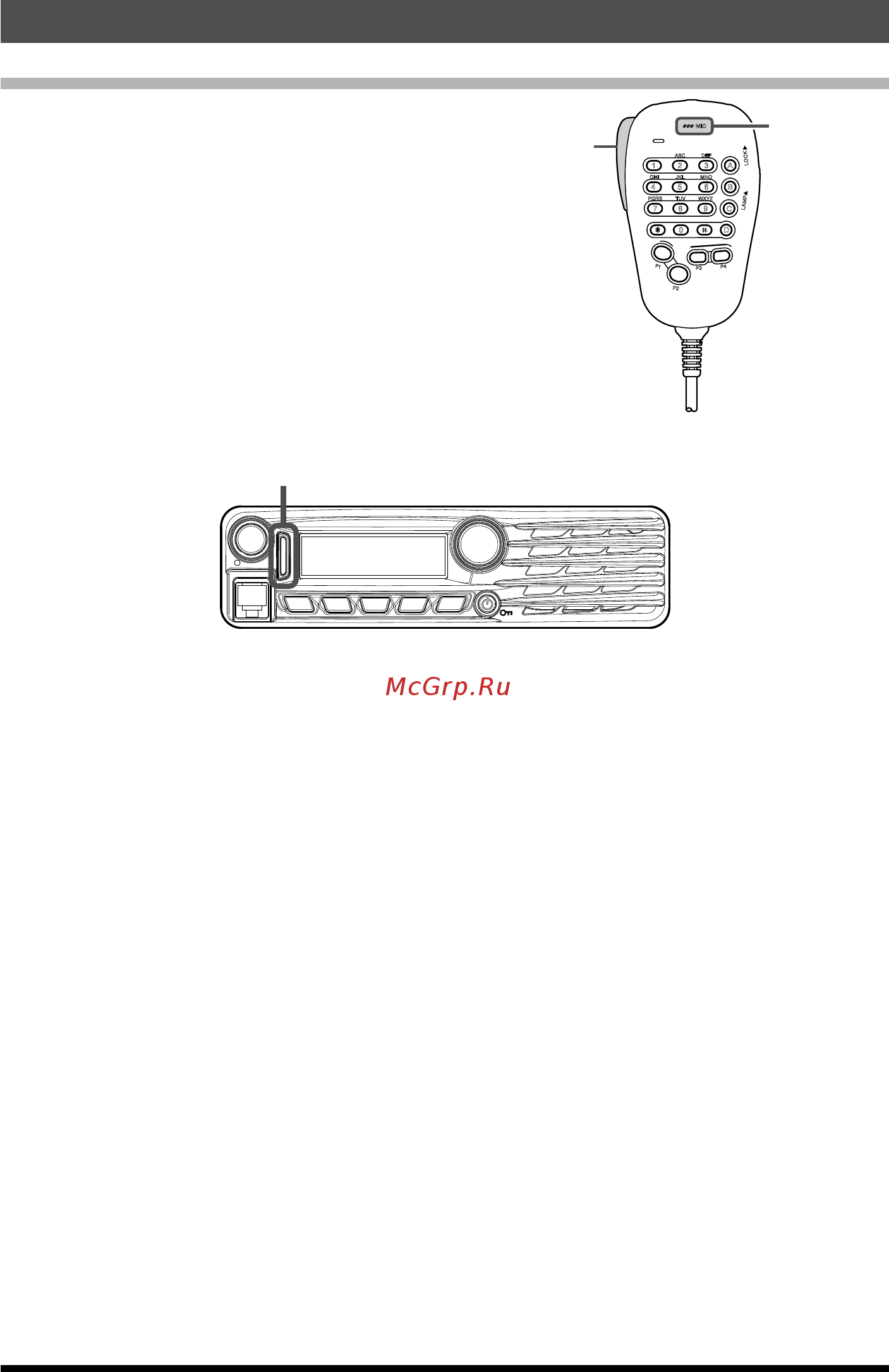

1. Press and hold PTT on the microphone.
Both the upper and lower portions of the PTT
mode/status indicator light red.
LOCK
P3
P2
P1
7
1
4
8
2
0
5
9
B
A
C
D
3
6
P4
LAMP
DTMF MICROPHONE
MH-48
ABC
JKL
TUV
GHI
PQRS
DEF
MNO
WXYZ
MIC
MIC
PTT
VOL
DIAL
DW MW
SETUP
REV V/M
SQL
TXPO
MHz
Both the upper and lower portions light red
2. Speak into MIC on the microphone.
Note: Keep the microphone about 5 cm away from your mouth.
The sensitivity (gain) of the microphone can be adjusted. For details, refer to the
Advanced Manual (download from the Yaesu website).
3. Release PTT.
The transmit mode/status indicator turns off and the transceiver returns to the receive
mode.
Caution: Do not continue transmitting for a prolonged period. The transceiver may
overheat, resulting in malfunction or injury.
Note: “ERROR” appears if you attempt to transmit on an unavailable frequency.
