Basic Operation
FTM-3100R Operating Manual

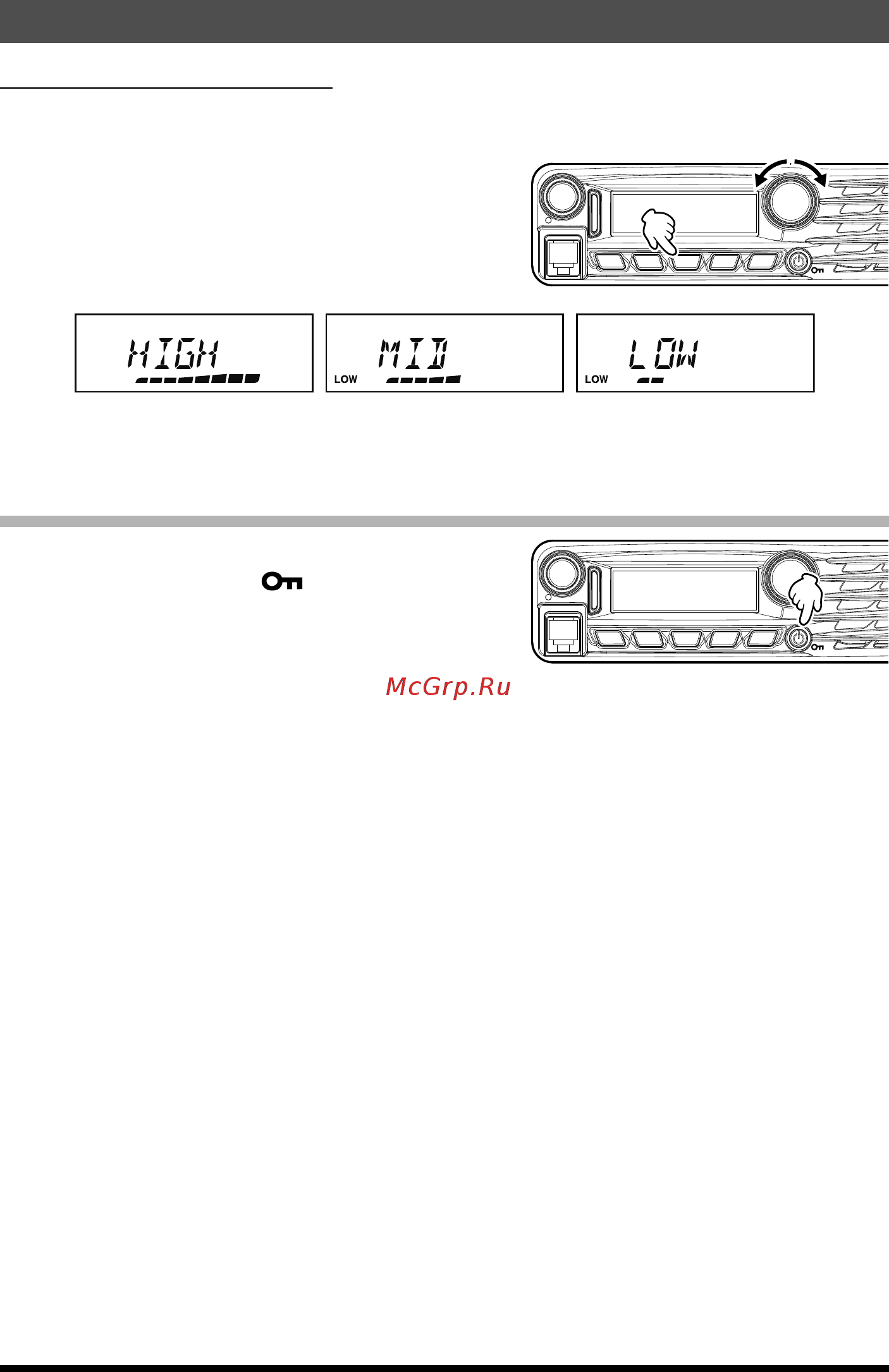

Adjusting the transmit power
When communicating with a nearby station, the transmit power level may be lowered to
reduce the battery power consumption.
1. Press the
[
TXPO
]
key.
2. Rotate the DIAL to select the transmit pow-
er.
Note: The default setting: HIGH
VOL
DIAL
DW MW
SETUP
REV V/MMHz
SQL
TXPO
HIGH (65 W) MID (30 W) LOW (5 W)
3. Press the
[
TXPO
]
key to save the new setting and exit to normal operation.
Lock Feature
To activate the key-lock feature, press the
[
Power
(
Lock
)]
key. The “
” icon will appear
on the LCD.
To cancel key-lock, press the
[
Power
(
Lock
)]
key again.
VOL
DIAL
DW MW
SETUP
REV V/MMHz
SQL
TXPO
To select which keys are locked, use the Setup Menu Item “16 LOCK” see page 30 for
details.
