Base Station Installation

The FTM-3100R is ideal for base station use as well as in mobile installations. The FTM-

3100R is specifically designed to integrate into your station easily, using the following

information as a reference.

AC Power Supplies

Operation of the FTM-3100R from an AC line requires a power source capable of pro-

viding at least 20 Amps continuously at 13.8 Volts DC. The FP-1023 (USA market only)

and FP-1030A AC Power Supplies are available from your Yaesu dealer to satisfy these

requirements. Other well-regulated power supplies may be used as well, if they meet the

above voltage and current specifications.

Use the DC power cable supplied with the transceiver to make the power connection to

the power supply. Connect the RED power cable lead to the POSITIVE

(

)

power supply

terminal, and connect the BLACK power cable lead to the NEGATIVE

(

–

)

power supply

terminal.

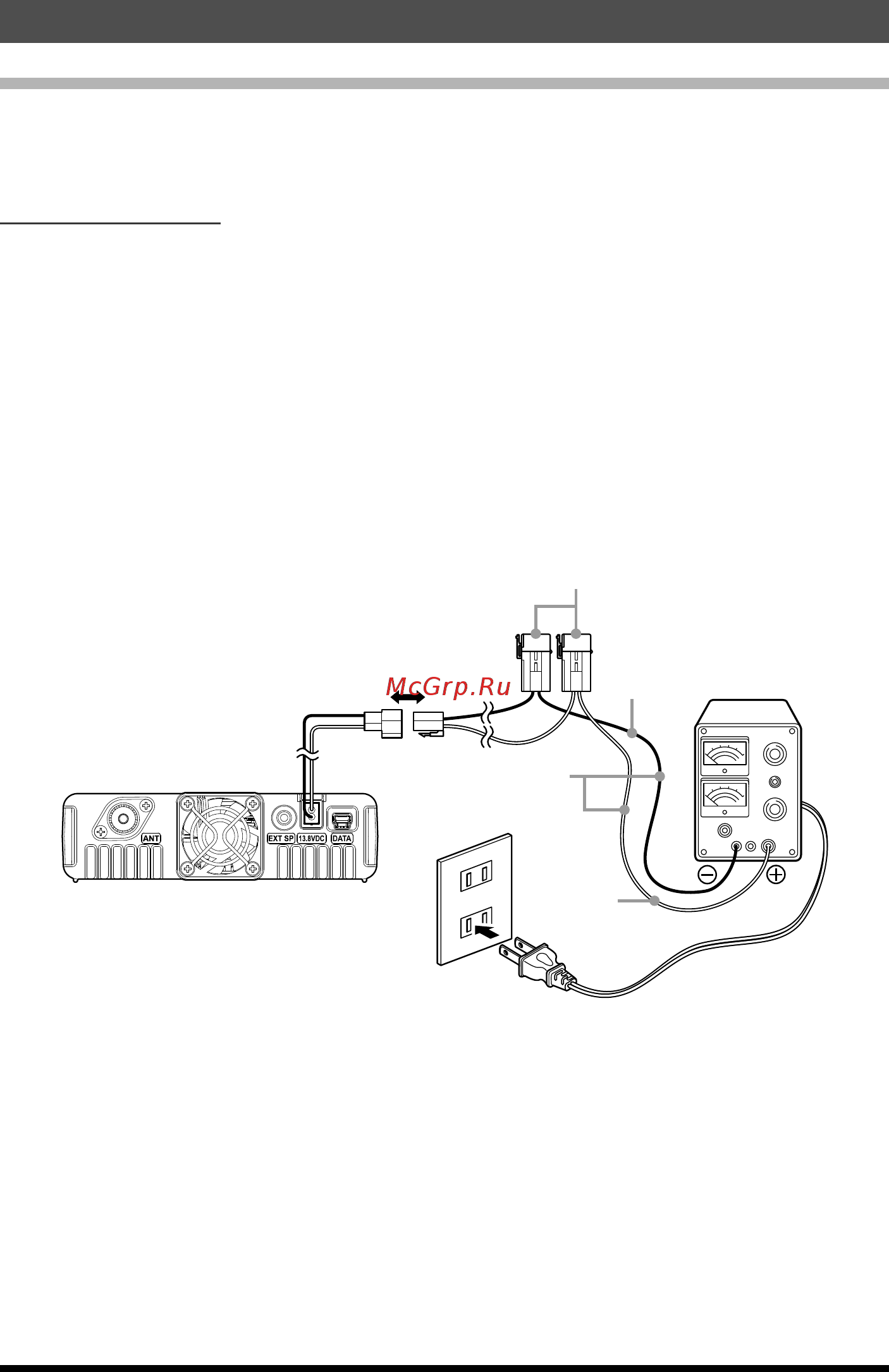

Rear panel

Power cable

(DC 13.8 V)

Black

Direct current

power supply

AC power

outlet

DC power supply

cable (supplied)

Red

Fuse holder
