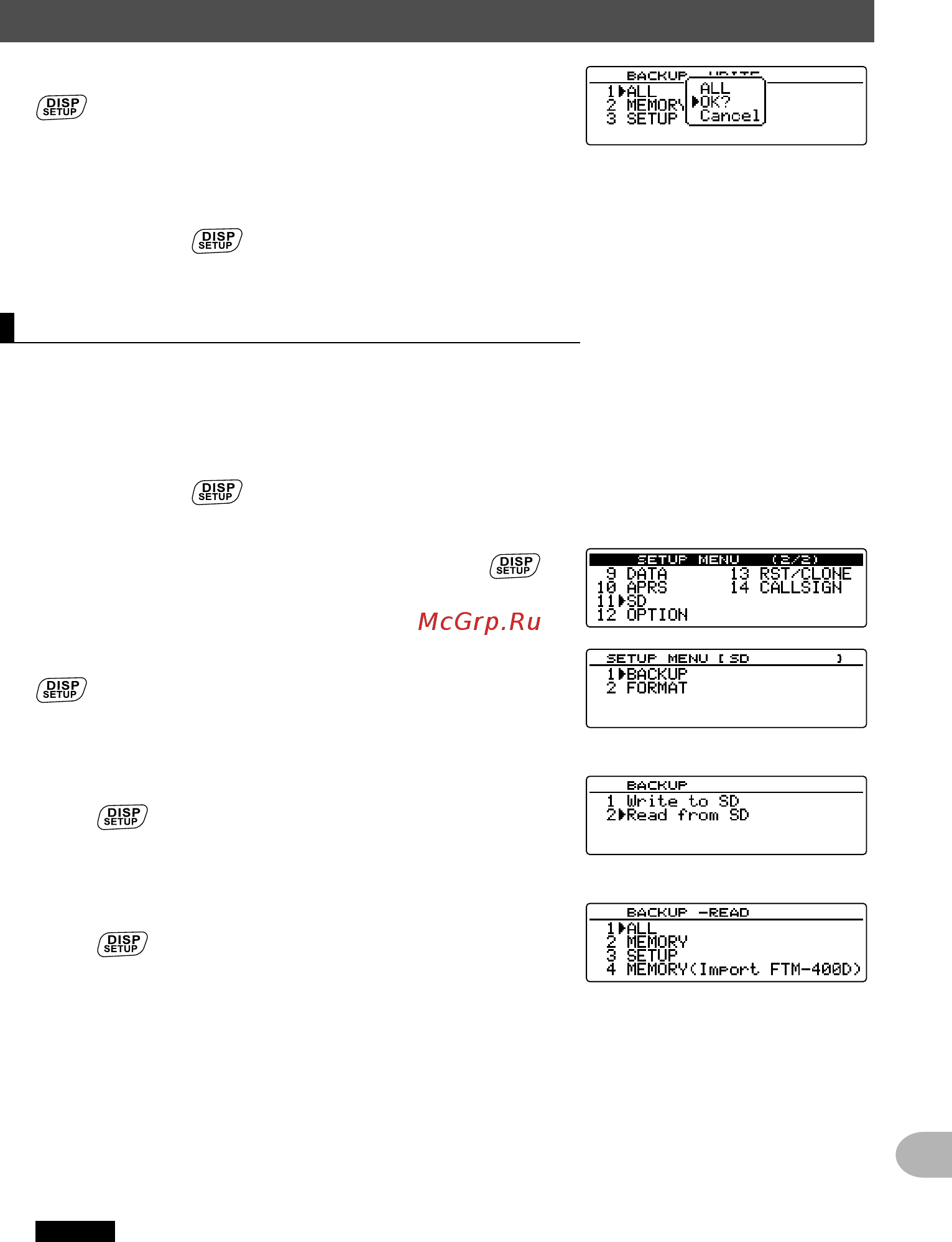

105
Functions to Use as Necessary
Copying the radio data to another transceiver
7 Rotate the DIAL to select [OK?], and then press
.
The data selected in step 6 is copied to the micro-SD
memory card. While copying, “Writing…” appears,
and when completing, it disappears.
8 Press and hold for over one second.
The display returns to the previously viewed operating screen.
Copying data from the micro-SD memory card
1 Insert the micro-SD memory card into the FTM-100DR/DE transceiver from which
data is to be copied, and then copy the data to the card.
2 Remove the micro-SD memory card and insert it into the FTM-100DR/DE
transceiver to which the data is to be copied.
3 Press and hold for over one second.
The Setup menu appears.
4 Rotate the DIAL to select [11 SD], then press .
The menu list appears.
5 Rotate the DIAL to select [1 BACKUP], then press
.
Displays the screen where the copy direction may be
selected.
6 Rotate the DIAL to select [2 Read from SD], then
press
.
Displays the screen where the data type may be
selected.
7 Rotate the DIAL to select the desired data type, then
press
.
1 ALL: Copies all data in the transceiver.
2 MEMORY: Copies only information registered to
the memory channels.
3 SETUP: Copies only settings in the Setup menu.
4 MEMORY (Import FTM-400DR):
Copies the memory channel data saved on
the micro-SD memory card of the FTM-400DR
transceiver.
Caution Insert the micro-SD memory card to which the FTM-
400DR transceiver memory channel data is copied,
into the transceiver.
The confirmation screen appears.
