18
Before Use
Nameandfunctionofeachcomponent

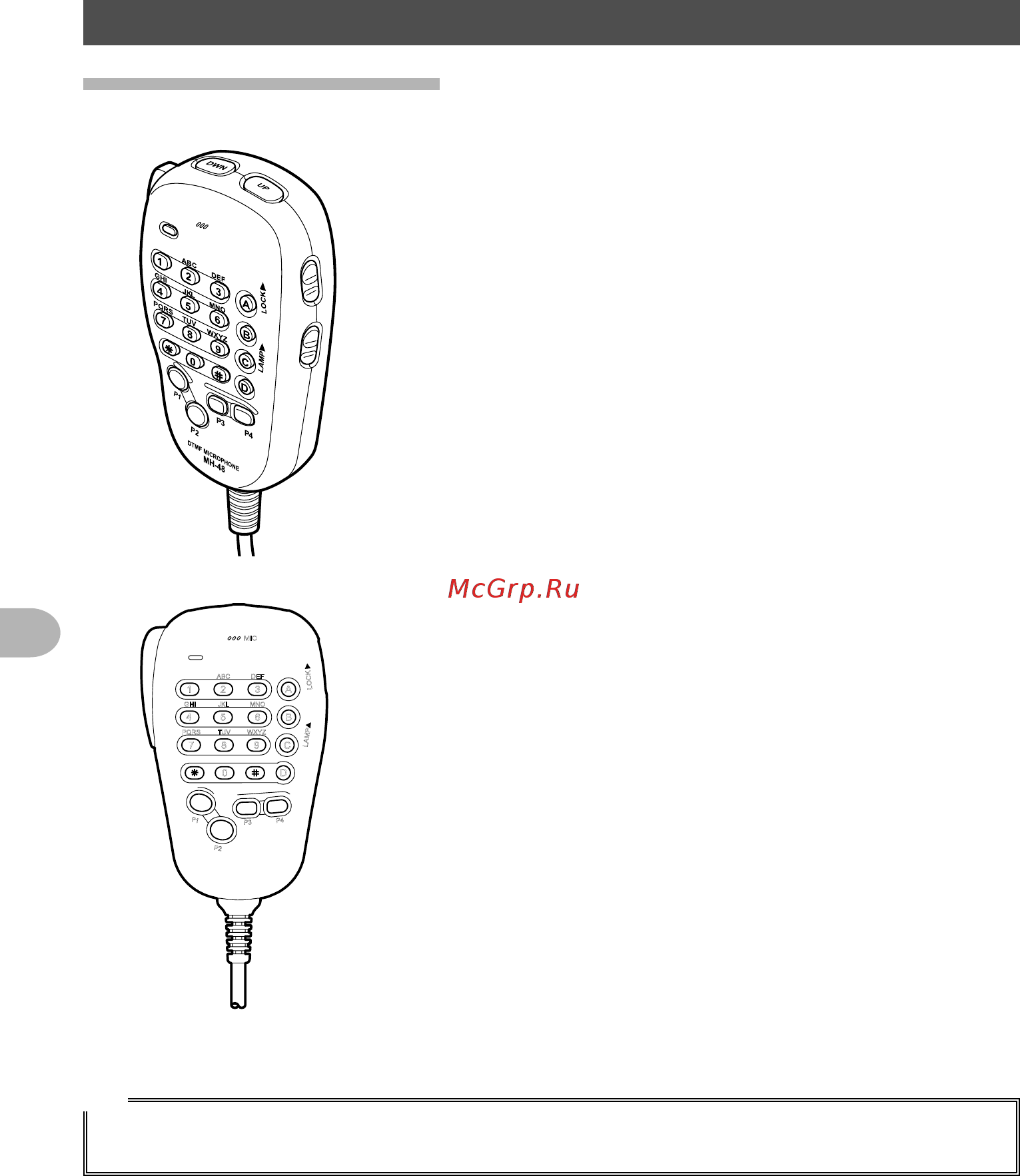

Microphone(MH-48A6JA)
LOCK
P3
P2
P1
7
1
4
8
2
0
5
9
B
A
C
D
3
6
P4
LAMP
DTMF MICROPHONE
MH-48
ABC
JKL
TUV
GHI
PQRS
DEF
MNO
WXYZ
MIC
[UP] Increases the frequency by one step.
[DWN] Decreases the frequency by one step.
[LOCK] Locks / unlocks the [UP] and [DWN] keys and
[P1] to [P4] keys.
[LAMP] Turns the lamp on the body of the microphone
on/off.
[MIC] Speak into this part during transmission.
[1]to[0] Enters the numbers.
[✽] Switches between VFO and Memory operating
mode of the operating band.
[#] Activates the GM (Group Monitor) functions.
[A] Switches the operating band to the A-band.
[B] Switches the operating band to the B-band.
[C] Adjusts the squelch level.
[D] Switches the display.
[P1] Turns off the squelch function.
(T.CALL: European version)
[P2] Recalls the receiver home channel.
[P3] Changes the communication mode.
[P4] Changes the transmit power.
[PTT] Switches the transceiver to transmission mode.
Tip
The desired functions can be assigned to buttons [P1] to [P4]. Select the function from [8CONFIG]
→ [10MICPROGRAMKEY] in the Setup menu (page 138).
