Asus WS X299 SAGE [42/130] Chapter 2

2-2

Chapter 2: Basic Installation

Chapter 2

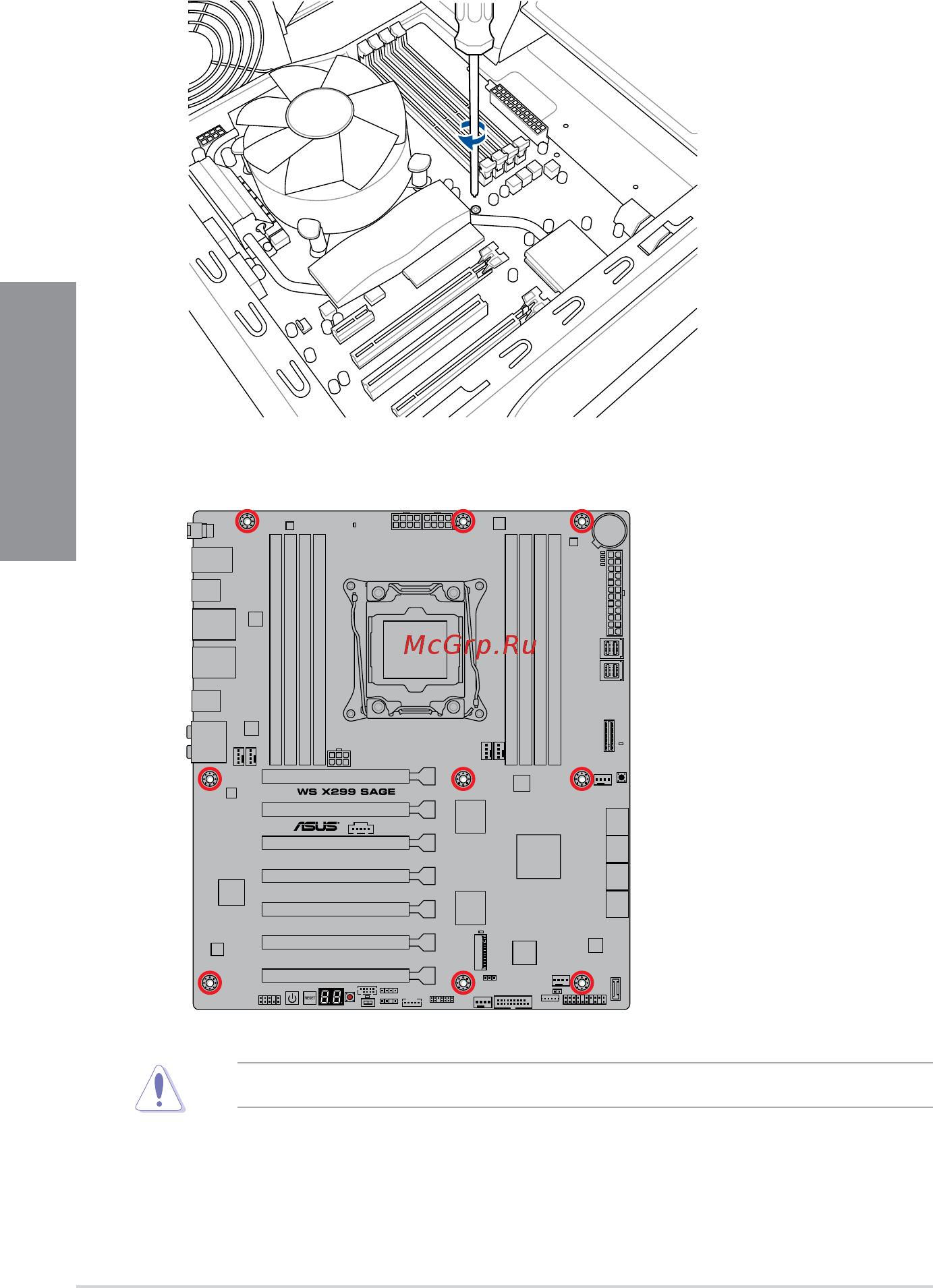

3. Place nine screws into the holes indicated by circles to secure the motherboard to the

chassis.

DO NOT overtighten the screws! Doing so can damage the motherboard.
