ROG MAXIMUS X HERO
1-11
Chapter 1

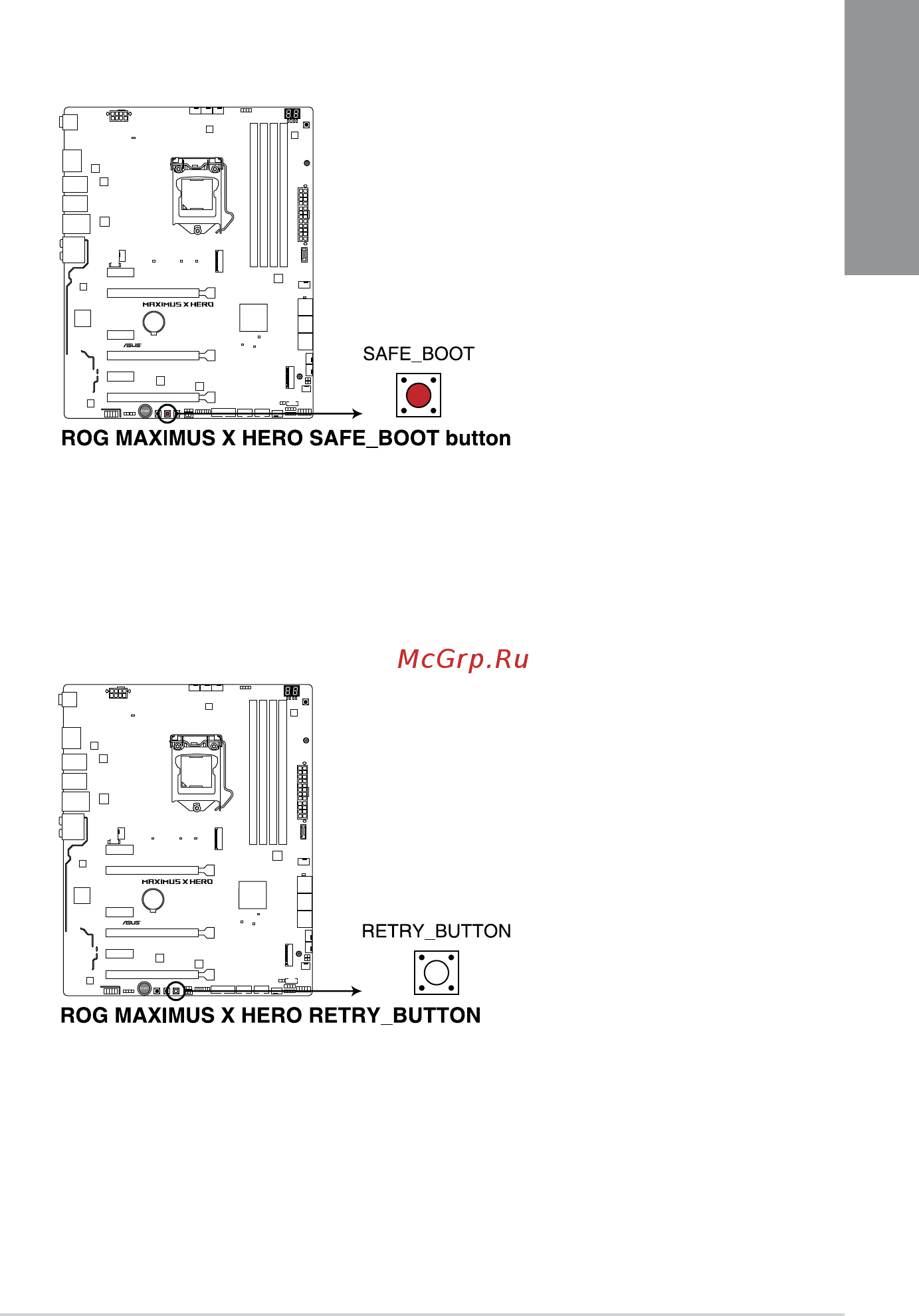

4. Safe Boot button (SAFE_BOOT)
TheSafeBootbuttoncanbepressedanytimetoforcethesystemtorebootintothe
BIOSsafemode.ThisbuttontemporarilyappliessafesettingstotheBIOSwhile
retaininganyoverclockedsettingsallowingyoutomodifythesettingscausingboot
failure.Usethisbuttonwhenoverclockingortweakingthesettingsofyoursystem.
5. ReTry button (RETRY_BUTTON)
TheReTrybuttonisspeciallydesignedforoverclockersandismostusefulduringthe
bootingprocesswheretheResetbuttonisrendereduseless.Whenpressed,itforces
thesystemtorebootwhileretainingthesamesettingstoberetriedinquicksuccession
toachieveasuccessfulPOST.
