ROG MAXIMUS X HERO
1-13
Chapter 1
2. 3D Mount
Secure3Dprintedpartstothese3DMountholesforapersonalizedmotherboard.

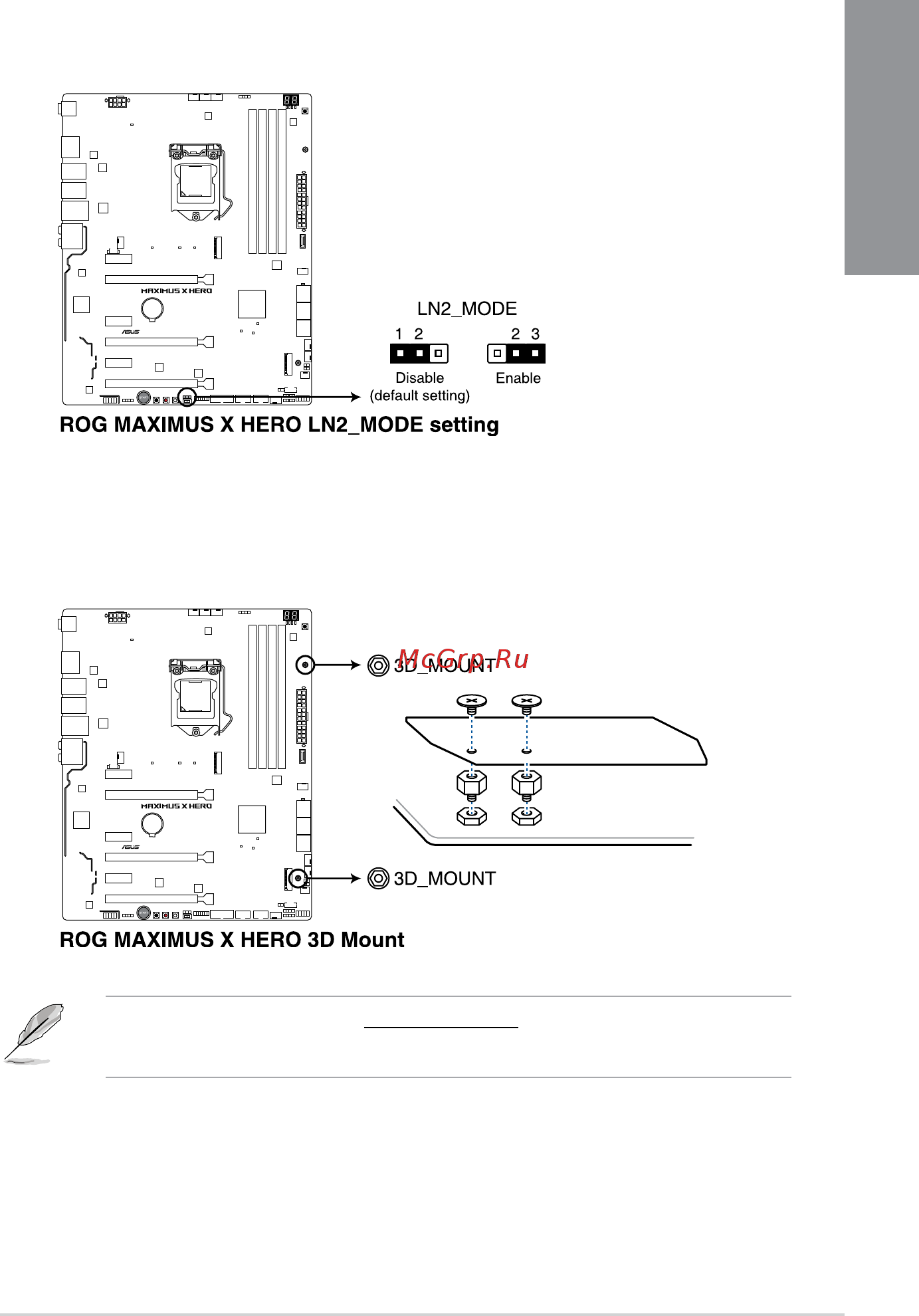

1.1.7 Jumper and holes
1. LN2 Mode jumper (3-pin LN2_MODE)
WithLN2modeactivated,theROGmotherboardisoptimizedtoremedythecold-boot
bugduringPOSTandhelpthesystembootsuccessfully.
• Download3Dsourcelesathttp://www.asus.com.
• Usethebundled3DMountscrewstoinstallthe3Dprintedparts.
