Asus ROG MAXIMUS X HERO [38/110] Chapter 1
![Asus ROG MAXIMUS X HERO [38/110] Chapter 1](/views2/1307905/page38/bg26.png)
1-22
Chapter 1: Product Introduction
Chapter 1

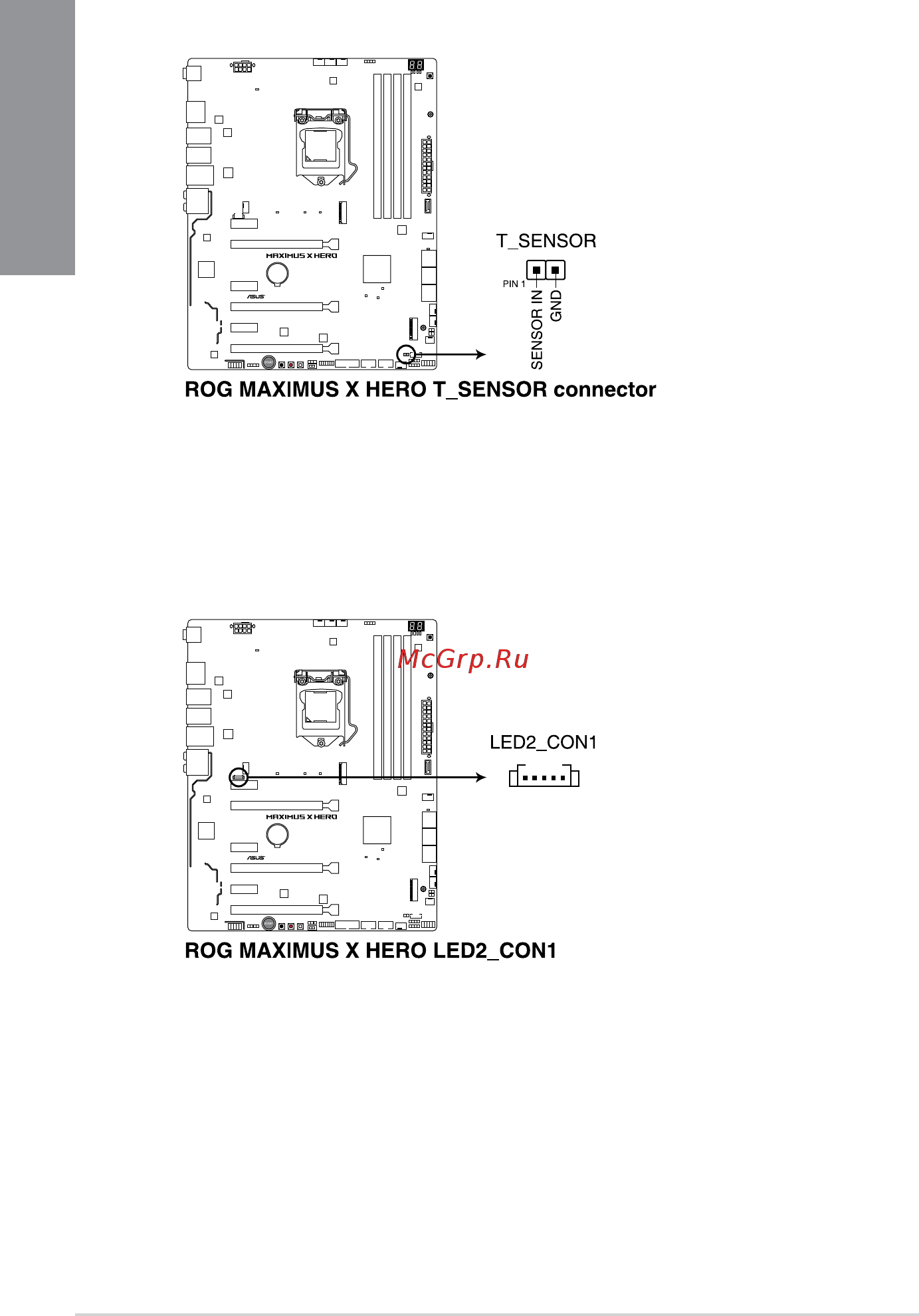

9. Thermal sensor connector (2-pin T_SENSOR)
Thisconnectorisforthethermistorcablethatallowsyoutomonitorthetemperatureof
yourmotherboard’scriticalcomponentsandconnecteddevices.
10. LED connector (5-pin LED2_CON1)
ThisconnectorisforconnectingLEDstripsonyourbackI/Ocover.
