1-32
Chapter 1: Product Introduction
Chapter 1
1.1.10 ProbeIt
TheROGProbeItallowsyoutodetectyoursystem’scurrentvoltageandOCsettings.Usea
multimetertomeasuretheProbeItpointsevenduringoverclocking.

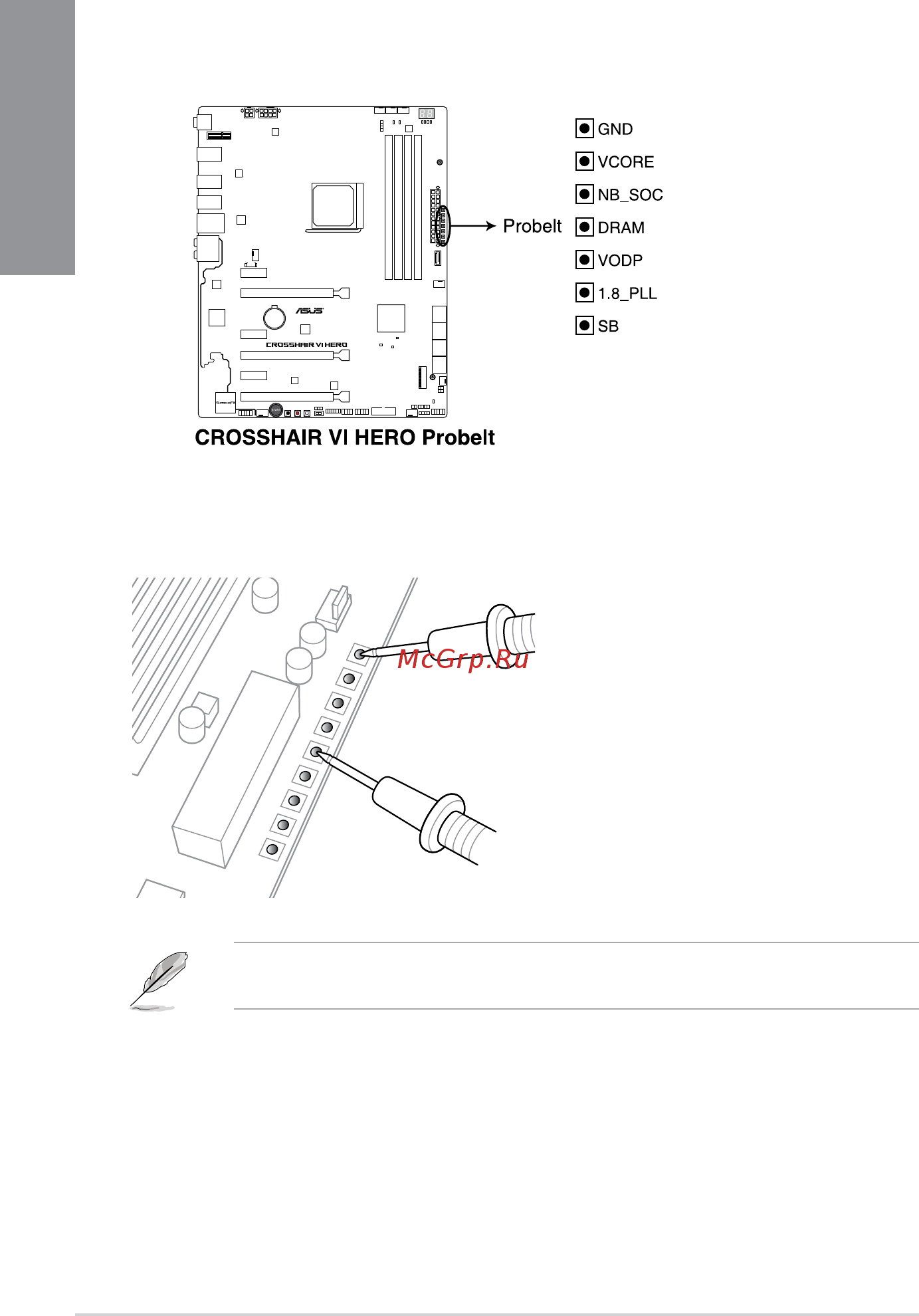

SeetheillustrationbelowtolocatetherespectiveProbeItpoints.
Using ProbeIt
Youcanconnectthemultimetertothemotherboardasshownonthefollowinggure.
Theillustrationaboveisforreferenceonly,theactualmotherboardlayoutandmeasure
pointsmaydifferbymodel.
