2-14
Chapter 2: Basic Installation
Chapter 2
2.3 Motherboard rear and audio connections

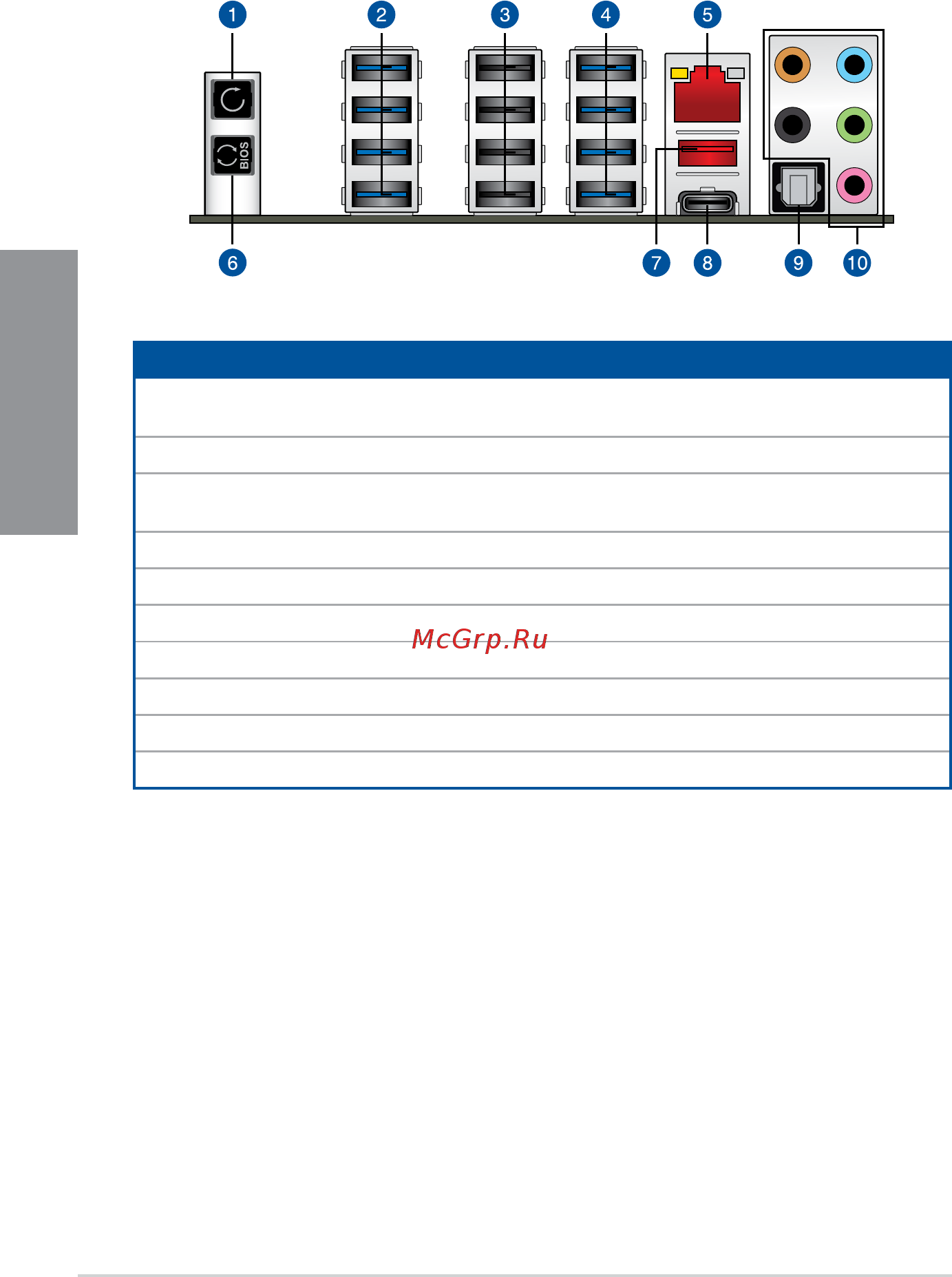

2.3.1 Rear I/O connection
* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port definitions.
Rear panel connectors
1.
Clear CMOS button (CLR_CMOS). Press this button to clear the BIOS setup
information only when the systems hangs due to overclocking.
2. USB 3.0 ports 1, 2, 3, and 4
3.
USB 2.0 ports 11, 12, 13, and 14. Second port from the bottom supports the
KeyBot II feature.
4. USB 3.0 ports 5, 6, 7, and 8
5. LAN (RJ-45) port*
6. USB BIOS Flashback button
7. USB 3.1 Type-A port EA3
8. USB 3.1 Type-C port EC2
9. Optical S/PDIF OUT port
10. Audio I/O ports**
