ASUS CROSSHAIR VI HERO
2-5
Chapter 2
Type 2
1 2

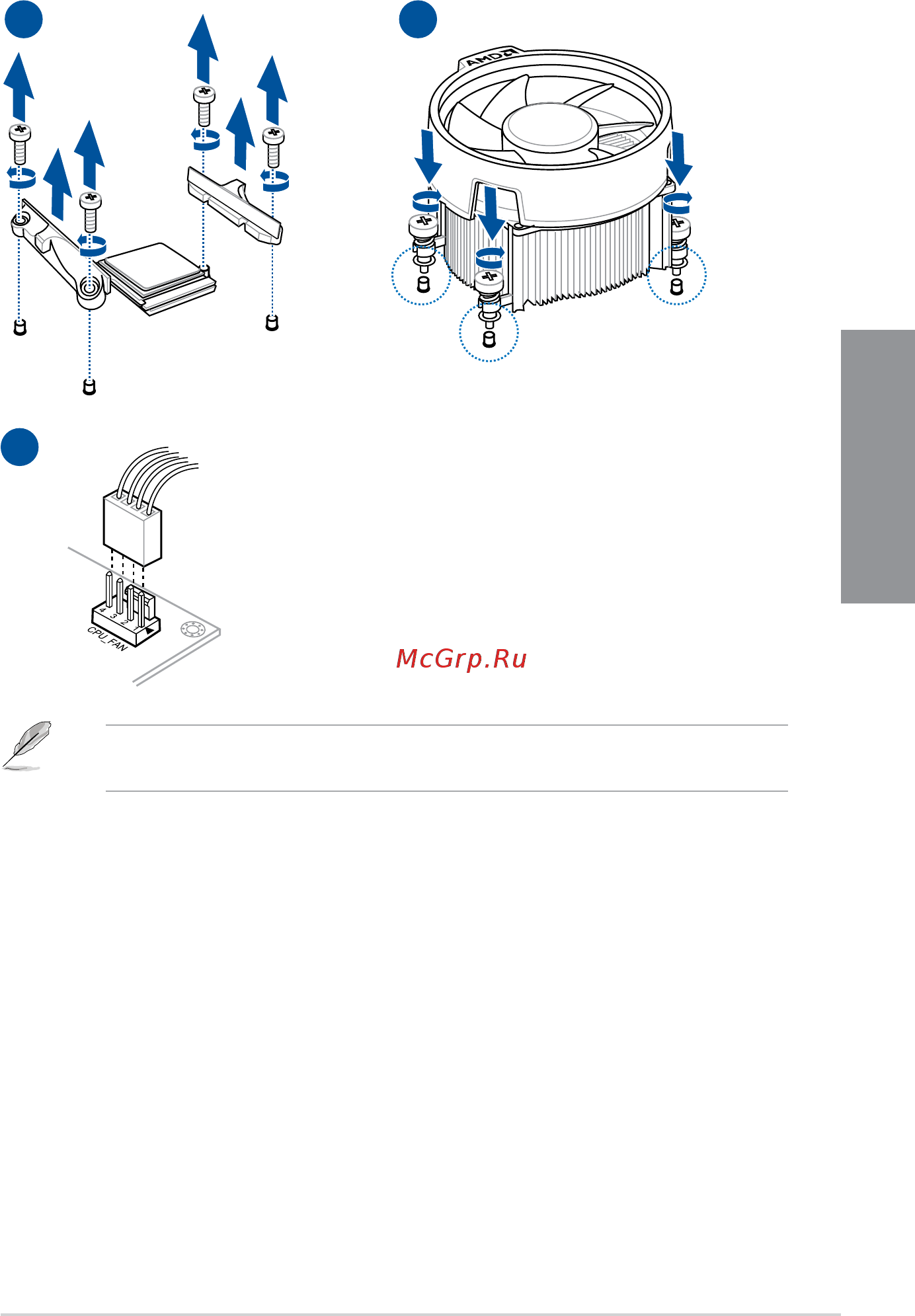

When using this type of CPU fan, remove the screws and the retention module only. Do not
remove the plate on the bottom.
3
