ASUS P10S-M WS Series
3-43
Chapter 3
3.11 Event Logs menu
The Event Logs menu items allow you to change the event log settings and view the system
event logs.

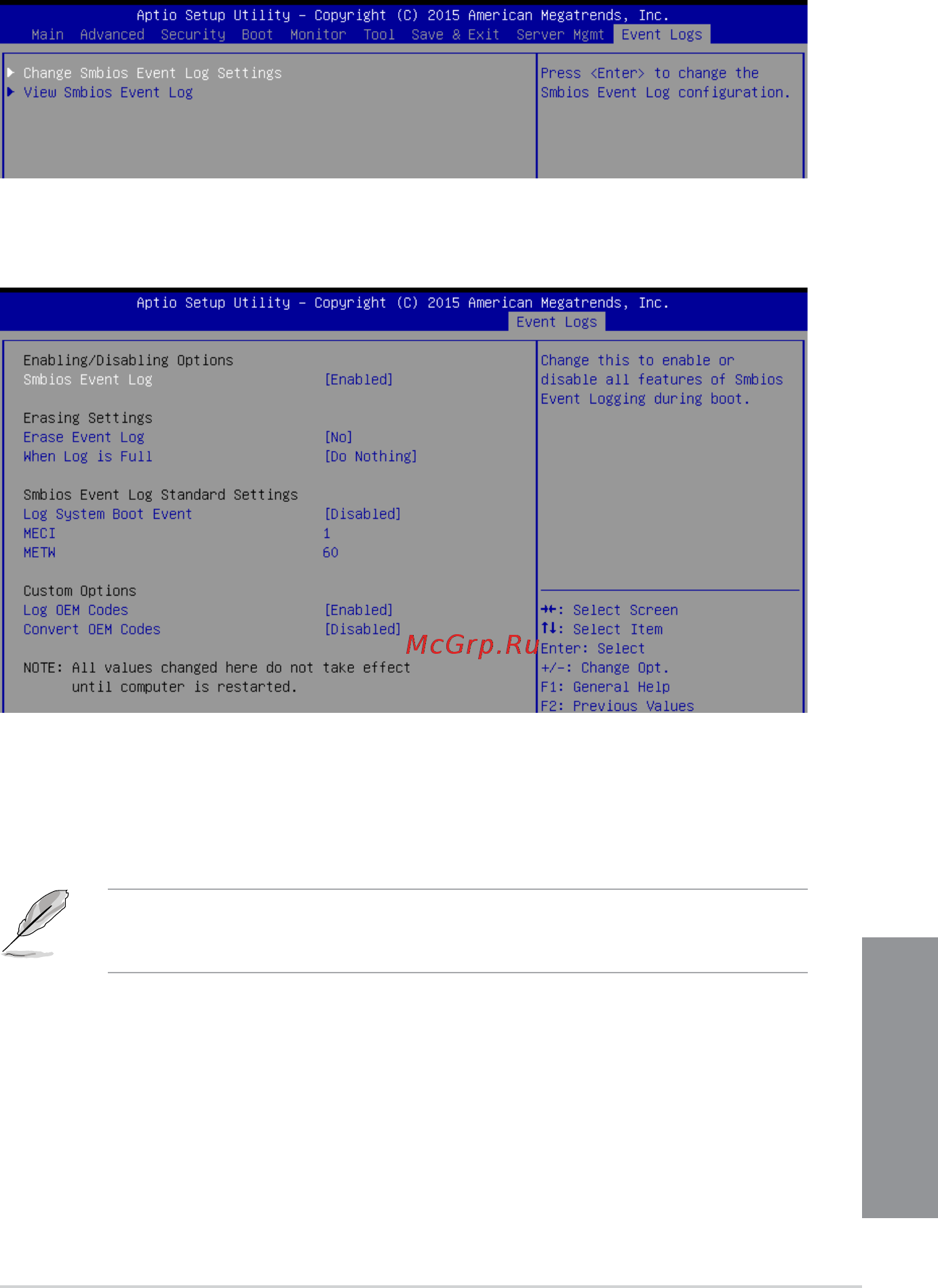

3.11.1 Change Smbios Event Log Settings
Press<Enter>tochangetheSmbiosEventLogconguration.
Enabling/Disabling Options
Smbios Event Log [Enabled]
Change this to enable or disable all features of Smbios Event Logging during boot.
Congurationoptions:[Disabled][Enabled]
• ThefollowingitemsappearsonlywhenyousetSmbiosEventLogto [Enabled].
• Allvalueschangedheredonottakeeffectuntilcomputerisrestarted.
Erasing Settings
Erase Event Log [No]
Choose options for erasing Smbios Event Log. Erasing is done prior to any logging activation
during reset.
Congurationoptions:[No][Yes,Nextreset][Yes,Everyreset]
