Asus P10S-M WS/IPMI-O [121/146] Chapter 4

ASUS P10S-M WS Series

4-11

Chapter 4

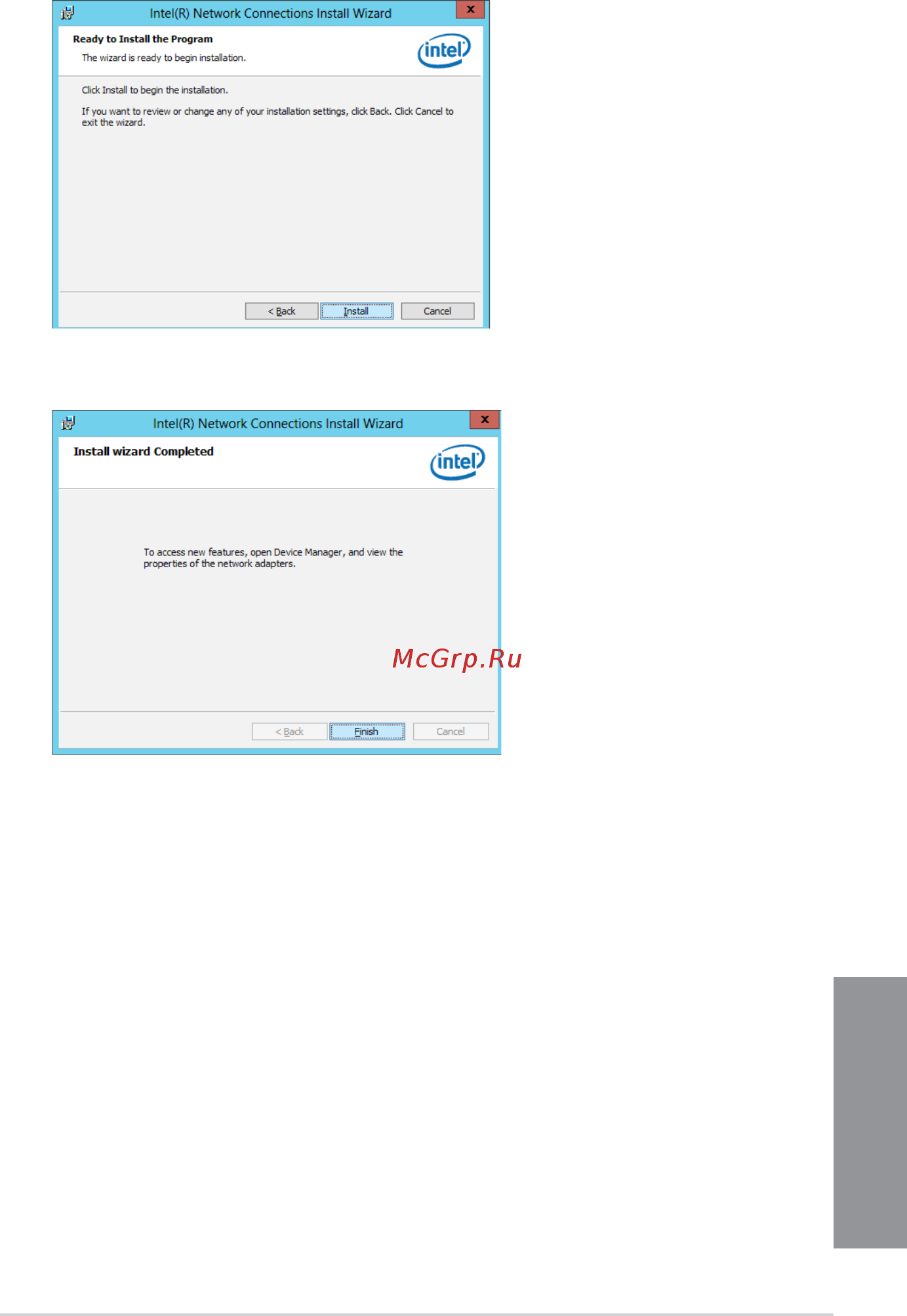

9. Click Install to start the installation.

10. When the installation is done, press Finish to complete the installation.
