Asus P10S-M WS/IPMI-O [26/146] Chapter 1

1-12

Chapter 1: Product Introduction

Chapter 1

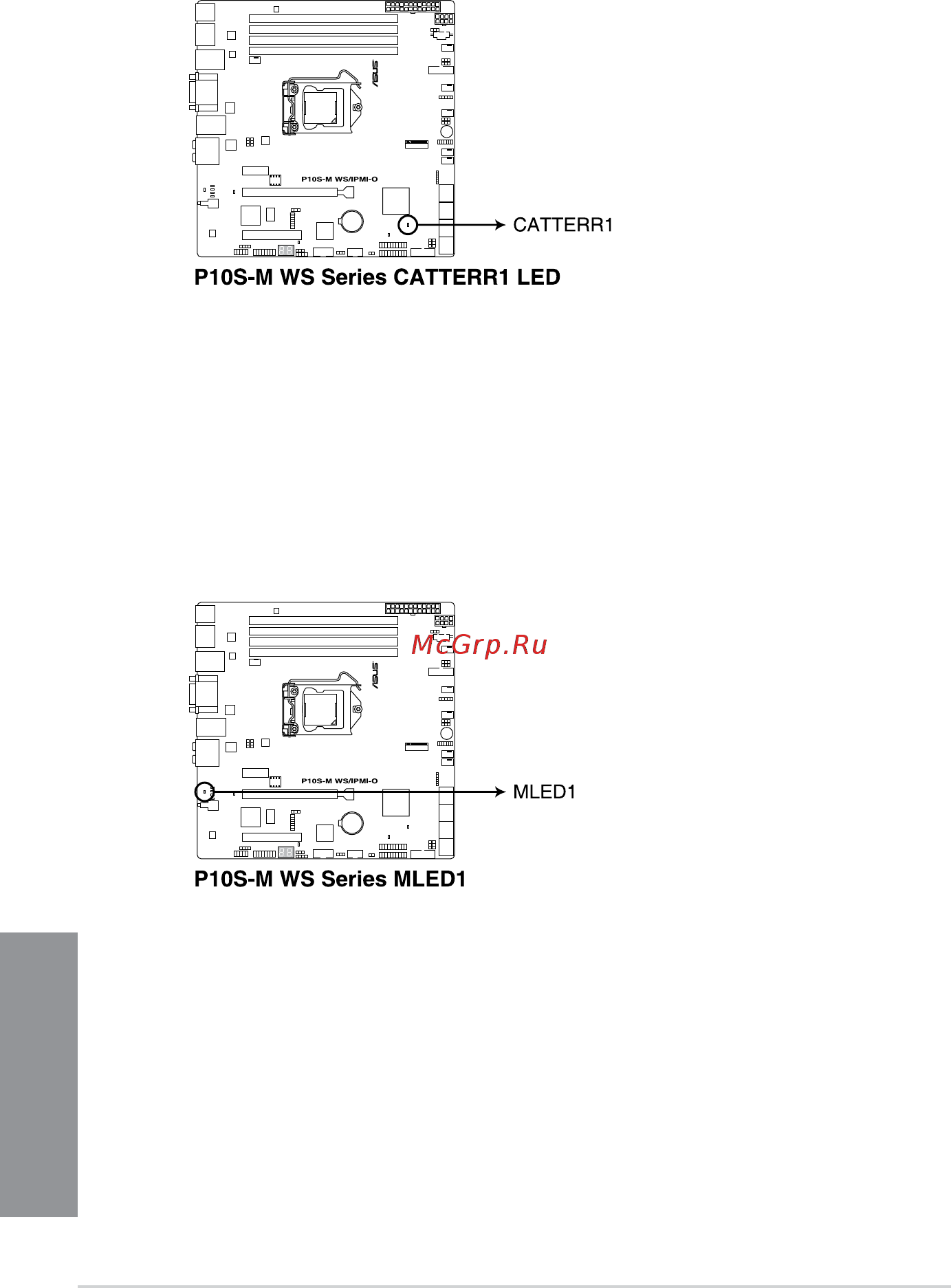

3. CATT ERR LED (CATTERR1)

The CATT LED indicates that the system has experienced a fatal or catastrophic error

and cannot continue to operate.

4. Message LED (MLED1)

This onboard LED lights up to red when there is temperature warning or a BMC event

log is generated.
