18

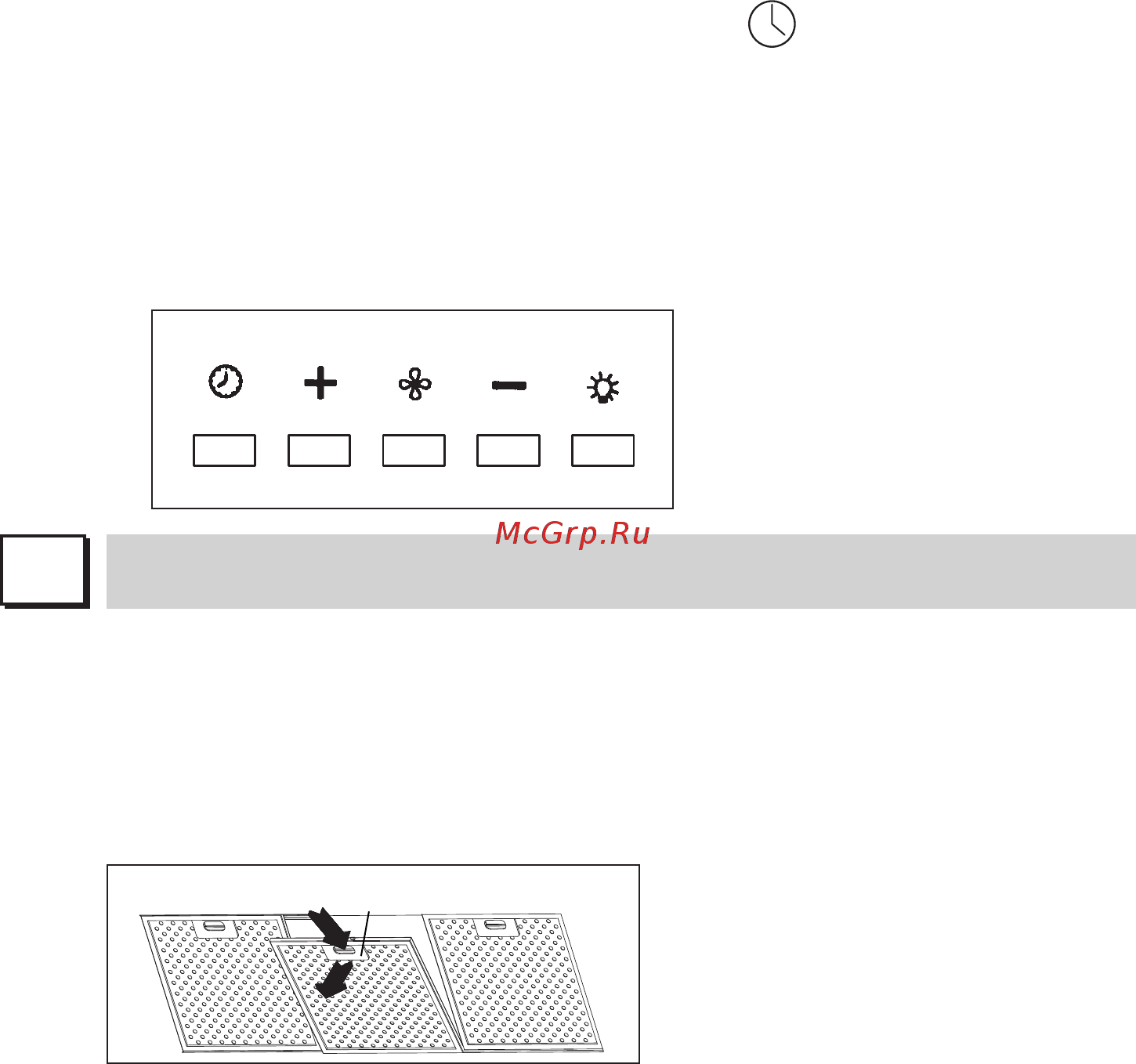

– and + pushbutton: increase/decrease speed (to start the motor press
either the + or the – pushbutton).
Timer pushbutton: see instructions below.
Timer and ‘filter clogged’ alarm pushbutton
• This function allows the automatic turning off of the hood after running
for 15 minutes at the speed previously set (the pushbutton shows a flicker-
ing light).
• After about 30 hours of running the pushbutton indicates the need for
washing the metal filters (the pushbutton shows a solid red light). To dis-
able the alarm press the pushbutton for a few seconds until the red light
turns off. Then turn the hood off and on again to check that the alarm has
disappeared.
FILTERS REMOVING AND REPLACING’S INSTRUCTIONS
H
1. METAL FILTERS
To remove the metal grease-trapping filter, simply pull the handle A until
releasing it from the front guide; then tilt it slightly downwards, and slide
it out of the rear guide. To reposition the filter, repeat the operation in the
reverse order.
Hoods with perimeter suction:
- Open the panel (see fig. 1). Use handle A to remove the metal grease filter.
A
2. CHARCOAL FILTERS
To replace the charcoal filters, proceed as follows: remove the metal filters
as described above. The two filters located at the ends of the motor can now
be easily accessed.
To install the new fi lters see picture.
In case of hood with the motor box the fi lter is located on the botton part of
the motor box.
To install the new fi lters see picture.
To order new charcoal fi lters contact the distributor/retailer.
VALID ONLY FOR ITALY: download the appropriate order form from:
www.falmec.com (access the assistance drop-down menu).
