20

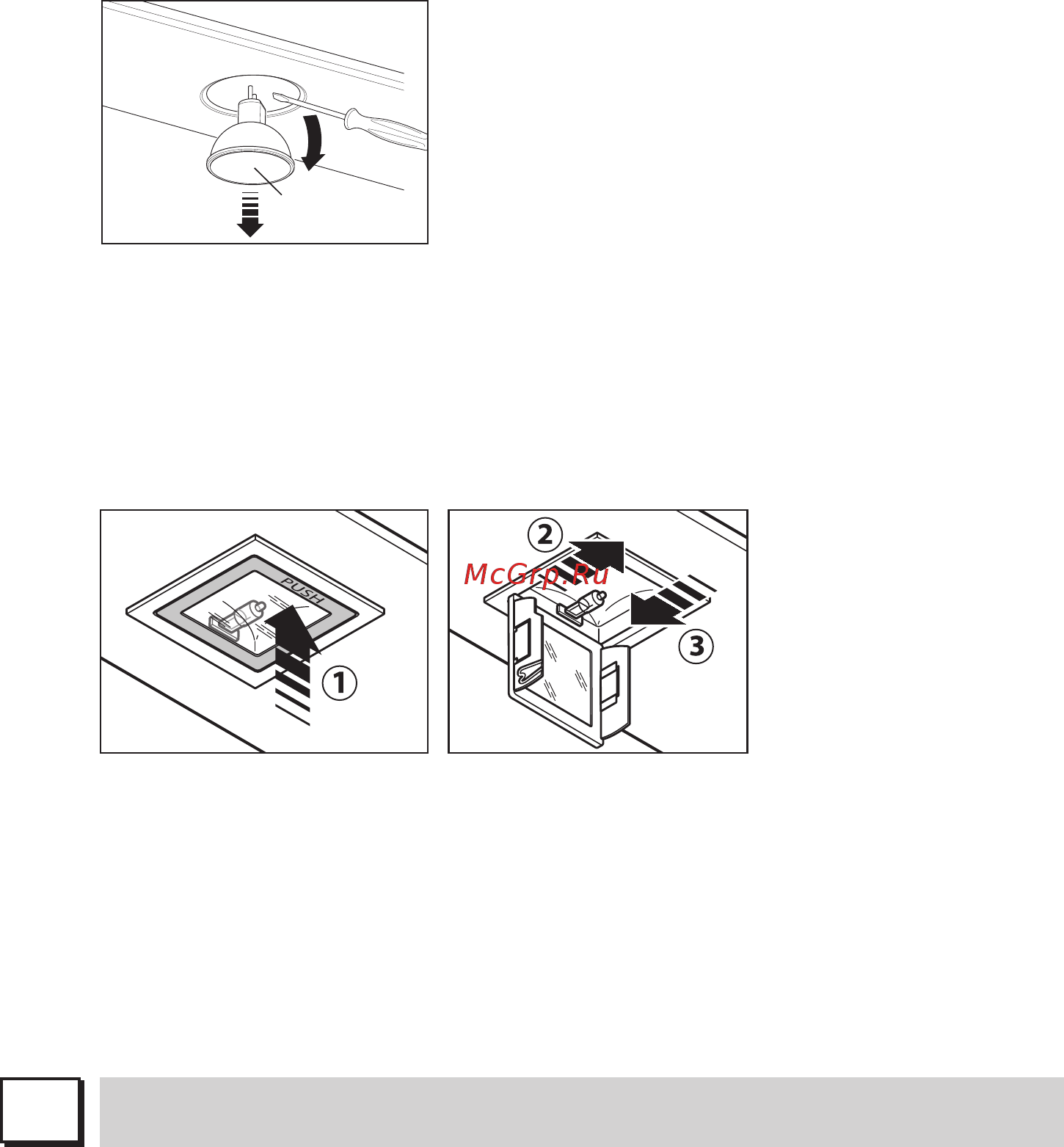

How to replace the dicroic lamp:
a) Check that the equipment is disconnected from the power supply.
b) Remove the lamp with the help of a screwdriver (see figure)
c) Replace the lamp with a similar one (dichroic, max 20 W, 12 Volt).
Dicroic spot
Lamp
How to replace a square halogen light:
a) Check that the equipment is disconnected from the power supply.
b) Open the panel completely till 90° (see figure) pressing the PUSH button
c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 con-
nection).
d) Close the panel. If the panel does not close correctly repeat the operation at
point b.
Square halogen light
3. FLUORESCENT TUBE
(Section reserved for qualified installers)
Replacing the fluorescent tube:
a) Disconnect the device from the mains;
b) Unscrew the fixing screws and remove the bottom panel;
c) Remove the fluorescent tube, by rotating through 90°, and replace it with
one of similar features (8W-13W-21W-28W according with the model);
d) Reconnect the device to the mains.
MAINTENANCE AND CLEANING
L
Constant maintenance ensures the correct operation and efficiency of the appli-
ance over time. Special attention should be paid to the metal grease-trapping
filters and the charcoal filters. Frequent cleaning of the filters and their supports
will ensure that fats and grease do not accumulate on the range hood, with the
consequent risk of fire.
1. METAL GREASE-TRAPPING FILTERS
These trap the fat and grease particles suspended in the air, and therefore
should be washed every month in hot water and detergent, without bending
them. Wait until they are completely dry before repositioning them.
