19

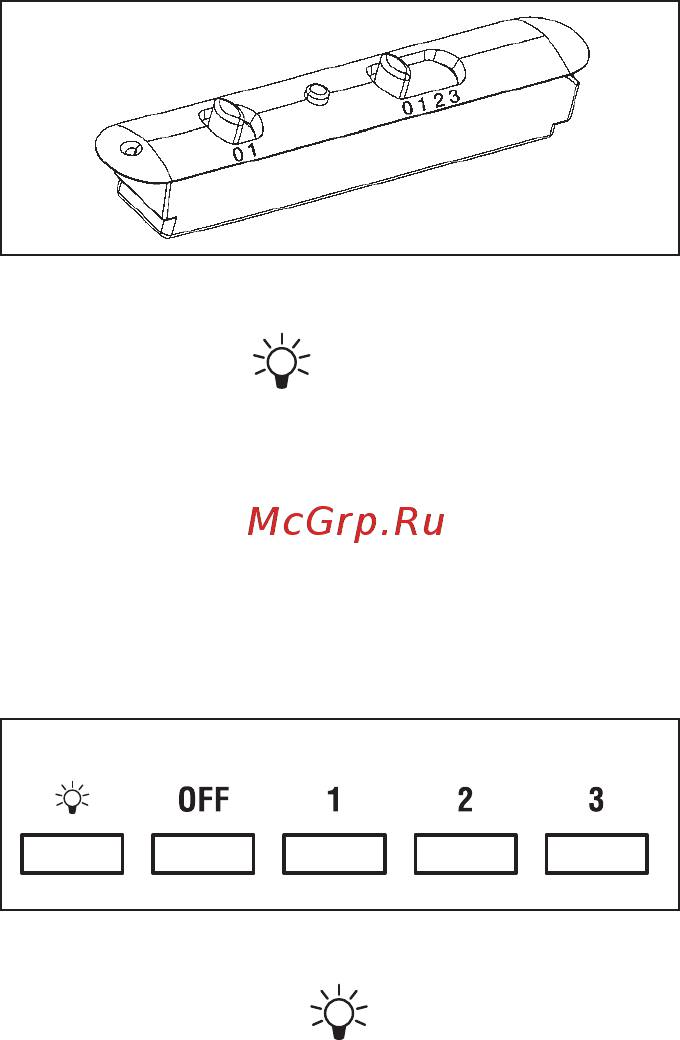

2. FIVE BUTTON CONTROL PANEL
LIGHT- button
Pressed: the light is on
Released: the light is off
MOTOR button - 1, 2, 3, OFF
1: starts the motor at minimum speed
2: starts the motor at medium speed
3: starts the motor at maximum speed
OFF: stops the motor
3. ELECTRONIC CONTROL PANEL
Light pushbutton
• ON: light on (the pushbutton is lit);
• OFF: light off;
Pushbutton -
Press to reduce motor speed
Speed 1, 2 and 3 are indicated by the number of LEDs that light up (exclud-
ing the light and the timer LEDs).
Pushbutton +
Press to increase motor speed
Speed 1, 2 and 3 are indicated by the number of LEDs that light up (exclud-
ing the light and the timer LEDs).
(In the 4-speed version the pushbutton + blinks. The fourth speed remains
on for a set duration of time. After 15 minutes the motor returns to the
third speed).
Mode pushbutton
Function: it turns hood motor on and off.
The function “desired speed” enables to start the motor at the speed that
was selected before the hood was last turned off.
Optional: version with remote control (some versions only).
WARNING:
Install the hood away from sources of electromagnetic waves, as these
could affect the correct operation of the electronic system.
Maximum operating distance: 5 metres. The maximum operating distance
could be less than 5 metres in case of electromagnetic interference by
other equipment.
