ISA Isabella 13 A LX [18/42] Technical specifications
![ISA Isabella 10 A LX [18/42] Technical specifications](/views2/1323206/page18/bg12.png)
18
ISABELLA LX
USE AND MAINTENANCE MANUAL
428000085
237
EN
ICE CREAM CABINETS

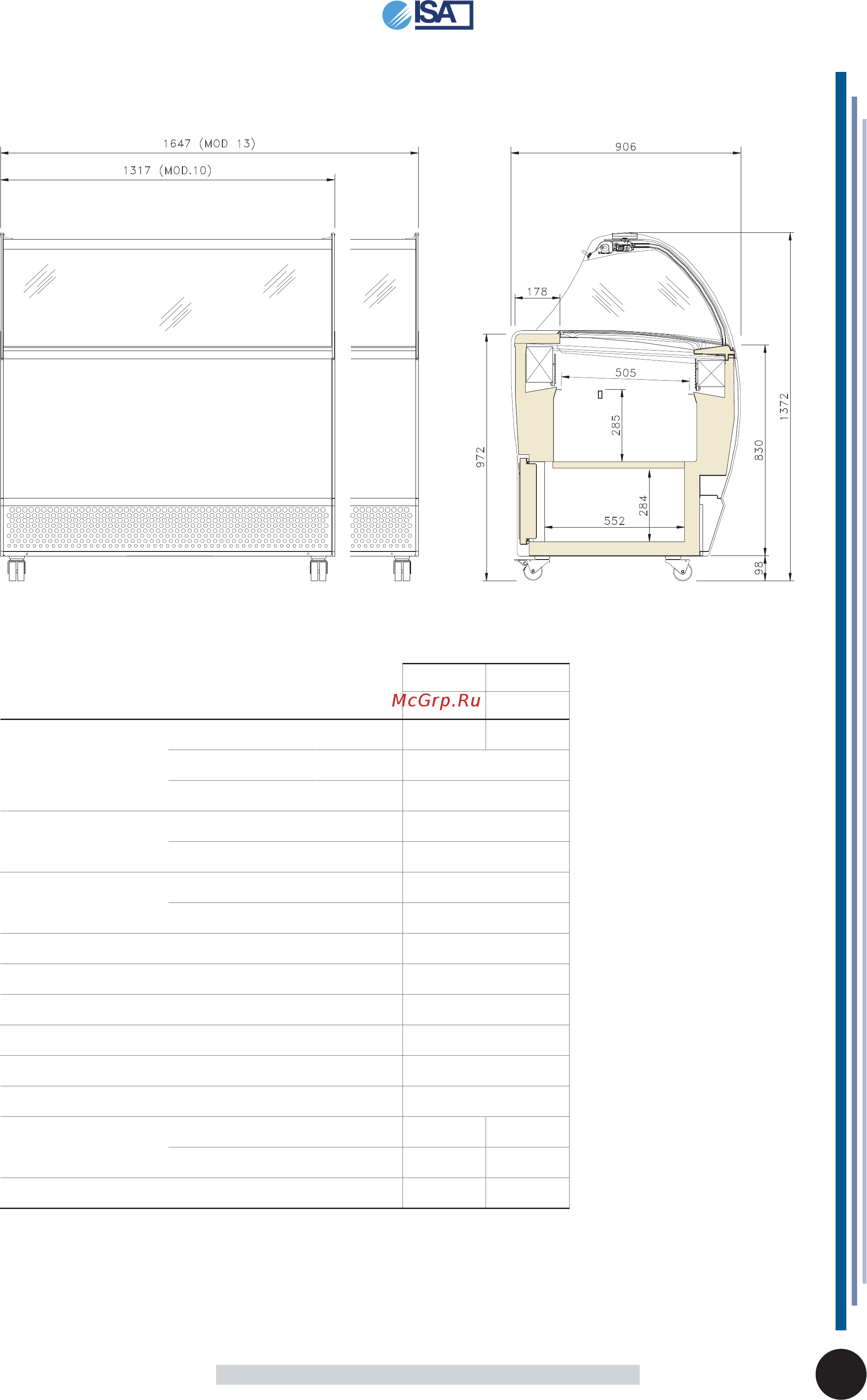

11. TECHNICAL SPECIFICATIONS
10 13
RS TB RS TB
External dimensions
Lenght mm 1317 1647
Depth mm 906
Height mm 1372
Refrigeration
DISPLAY Static
STORAGE ROOM Static
Defrosting
DISPLAY Hot Gas
STORAGE ROOM Manual
Climate class N° 4
Environmental conditions °C / %RH 30 / 55
Product class °C -16/-14
Safety class (IEC EN 60335-2-89) N° / °C 5 / 43 ± 2°C
Refrigerant R290
Power supply V / ph / Hz 230 / 1 / 50
Electrical input
Standard W / A 590 / 3 980 / 5.1
Defrosting W / A 1110 / 5.2 1240 / 5.8
Weight (net) Kg 132 192
