ISA Isabella 13 A LX [37/42] Attachment 6 wiring diagram 412100430000
![ISA Isabella 10 A LX [37/42] Attachment 6 wiring diagram 412100430000](/views2/1323206/page37/bg25.png)
37
EN
ISABELLA LX
USE AND MAINTENANCE MANUAL ICE CREAM CABINETS
428000085
237

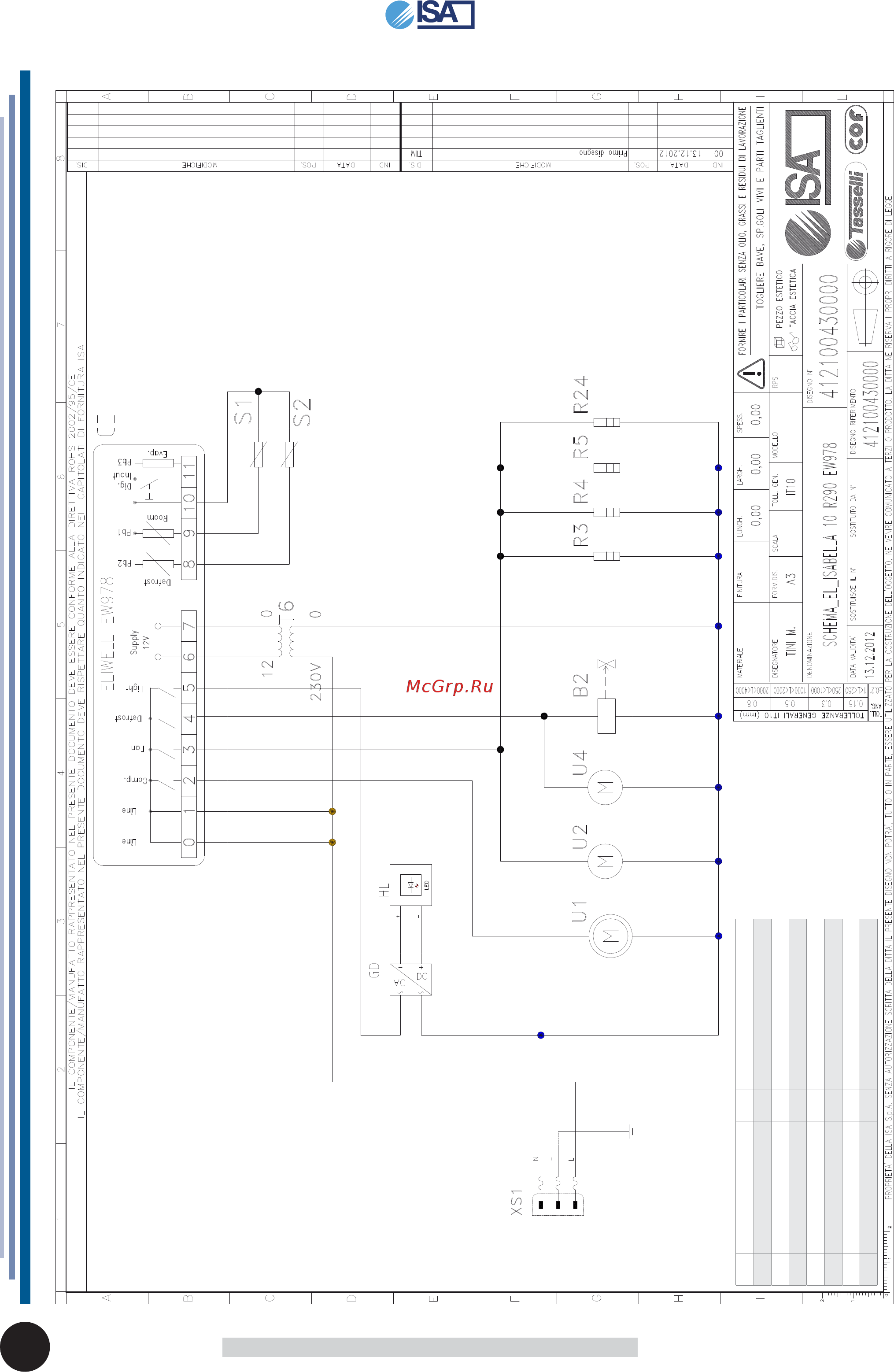

Attachment 6 - WIRING DIAGRAM - 412100430000
S1 Temperature probe
S2 Defrosting probe
CE Electronic control board
U1 Compressor
U2 Condenser fan
U4 Cleaning fan
HL LED lamp
GD Power supply LED
B2 Defrosting valve
T6 Trasformer
R3 Ouside perimeter heating resistor
R4 Heating resistor working surface
R5 Heating resistor frontal profi le
R24 Heating resistor evaporator
XS1 Plug power
