ISA Isabella 13 A LX [33/42] Attachment 2 wiring diagram 412100046100
![ISA Isabella 10 A LX [33/42] Attachment 2 wiring diagram 412100046100](/views2/1323206/page33/bg21.png)
33
EN
ISABELLA LX
USE AND MAINTENANCE MANUAL ICE CREAM CABINETS
428000085
237

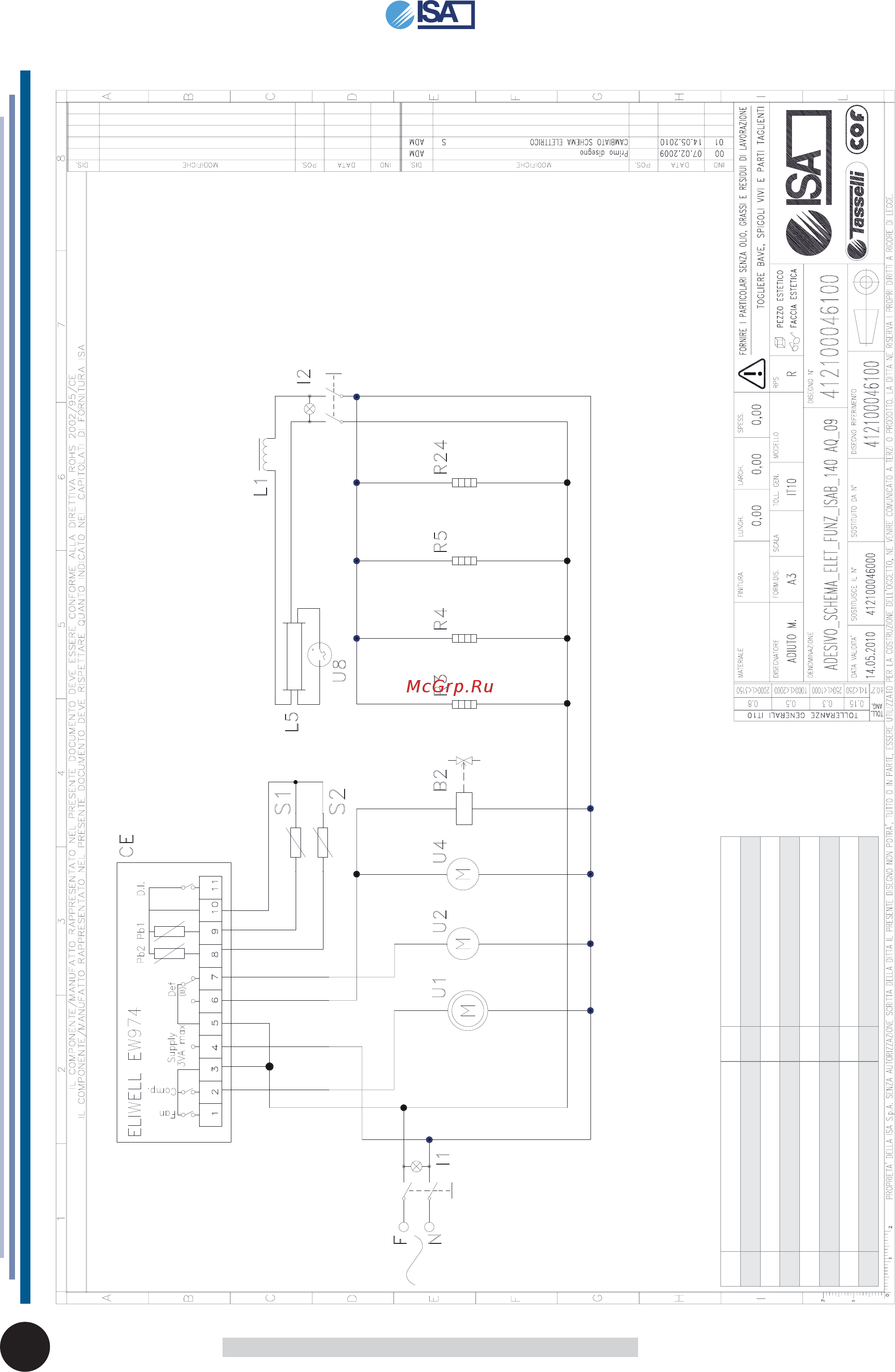

Attachment 2 - WIRING DIAGRAM - 412100046100
B2 Defrosting valve
C5 Electronic control board
I1 Switch cabinet
I2 Lighting switch
L1 Magnetic ballast-lamp
L5 Fluorescent tube T8
R3 Ouside perimeter heating resistor
R4 Heating resistor working surface
R5 Heating resistor frontal profi le
R24 Heating resistor evaporator
S1 Temperature probe
S2 Defrosting probe
U1 Compressor
U2 Condenser fan
U4 Cleaning fan
U8 Starter
