Mitsubishi Electric SEZ-KD35VAQ / SUZ-KA35VA [4/34] Parts names

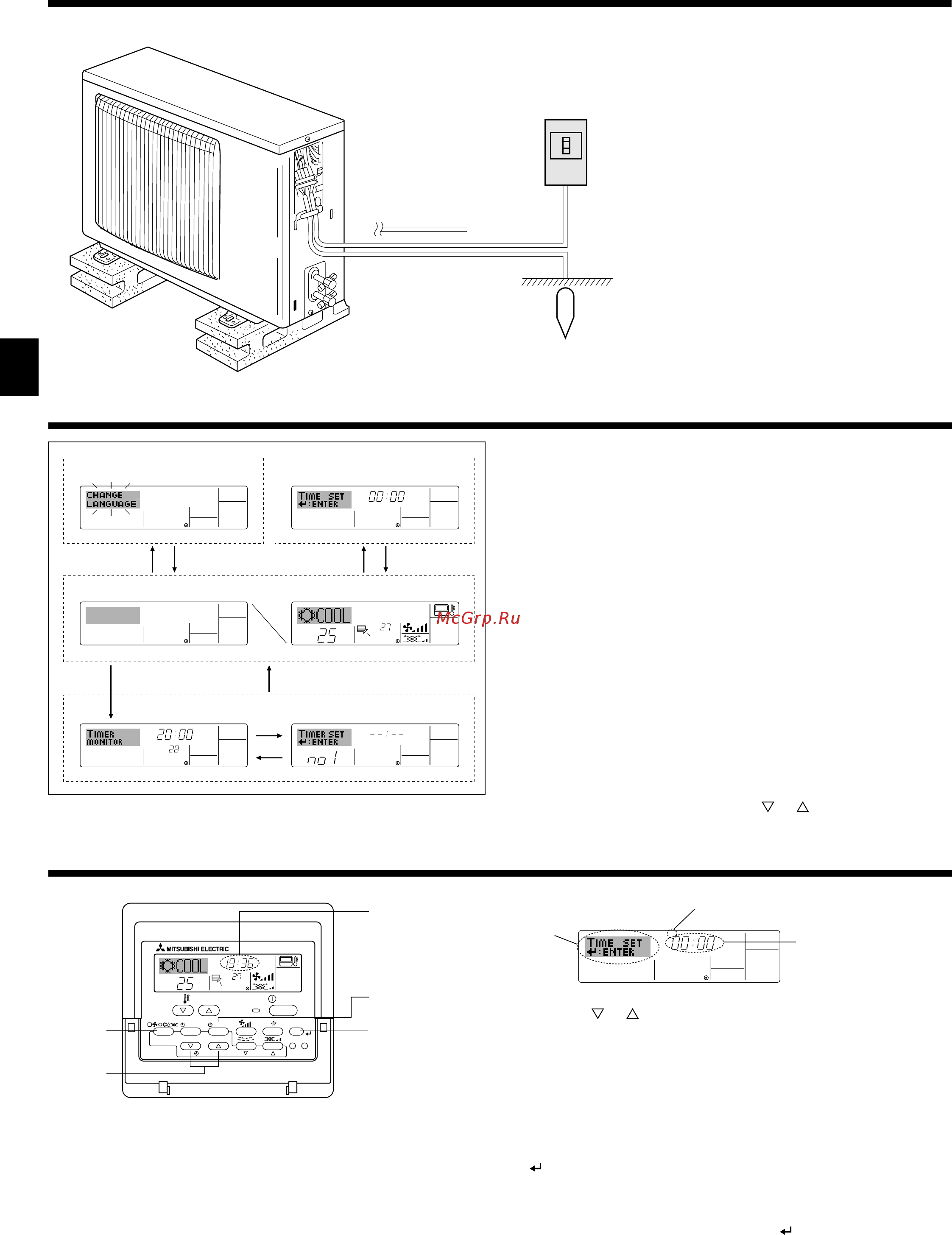

![Mitsubishi Electric SEZ-KD35VAQ / SUZ-KA35VA [4/34] Parts names](/views2/1324275/page4/bg4.png)
4
2. Parts Names
Note:
● The day and time will not appear if clock use has been disabled at Function
Selection of remote controller.
● After the power supply returns, the indoor unit does not operate for three
minutes. Above operation is normal.
3. Screen Configuration
■ Outdoor unit
<Screen Types>
For details on setting the language for the remote controller display, refer
to section 8. Function Selection.
The initial language setting is English.
● Function Selection of remote controller:
Set the functions and ranges available to the re-
mote controller (timer functions, operating restric-
tions, etc.)
● Set Day/Time: Set the current day of the week or time.
● Standard Control Screens:
View and set the air conditioning system’s oper-
ating status
● Timer Monitor: View the currently set timer (weekly timer, sim-
ple timer, or Auto Off timer)
● Timer Setup: Set the operation of any of the timers (weekly
timer, simple timer, or Auto Off timer).
<How to change the screen>
A :Hold down both the Mode button and the Timer On/Off button for 2
seconds.
B :Press the Timer Menu button.
C :Press the Mode (Return) button.
D :Press either of the Set Time buttons ( or ).
˚F˚C
TIMER
MON
OFF
WEEKLY
SUN MON TUE WED THU FRI SAT
WEEKLY
˚F˚C
˚C
TIME SUN
Function Selection of remote controller
Set Day/Time
Standard Control Screens
OFF ON
Timer Monitor Timer Setup
ADC
BC
B
1. Press the or Set Time button A to show display 2.
2. Press the Timer On/Off (Set Day) button 9 to set the day.
* Each press advances the day shown at 3 : Sun → Mon → ... → Fri →
Sat.
3. Press the appropriate Set Time button A as necessary to set the time.
* As you hold the button down, the time (at 4) will increment first in
minute intervals, then in ten-minute intervals, and then in one-hour in-
tervals.
4. After making the appropriate settings at Steps 2 and 3, press the Filter
button 4 to lock in the values.
Note:
● Your new entries at Steps 2 and 3 will be cancelled if you press the Mode
(Return) button
22
22
2 before pressing the Filter
button
44
44
4.
5. Press the Mode (Return) button 2 to complete the setting procedure.
This will return the display to the standard control screen, where 1 will
now show the newly set day and time.
4. Setting the Day of the Week and Time
Day of the Week &
Time display
˚C
˚C
TIME SUN
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
2
4
9
1
A
Time Setting
TIME SUN
2
3
4
Day of the Week Setting
Power
Earth
Indoor-Outdoor
Connection wire
Ref. Pipes
KB79H133H04_en.pm6 08.6.23, 2:48 PM4
