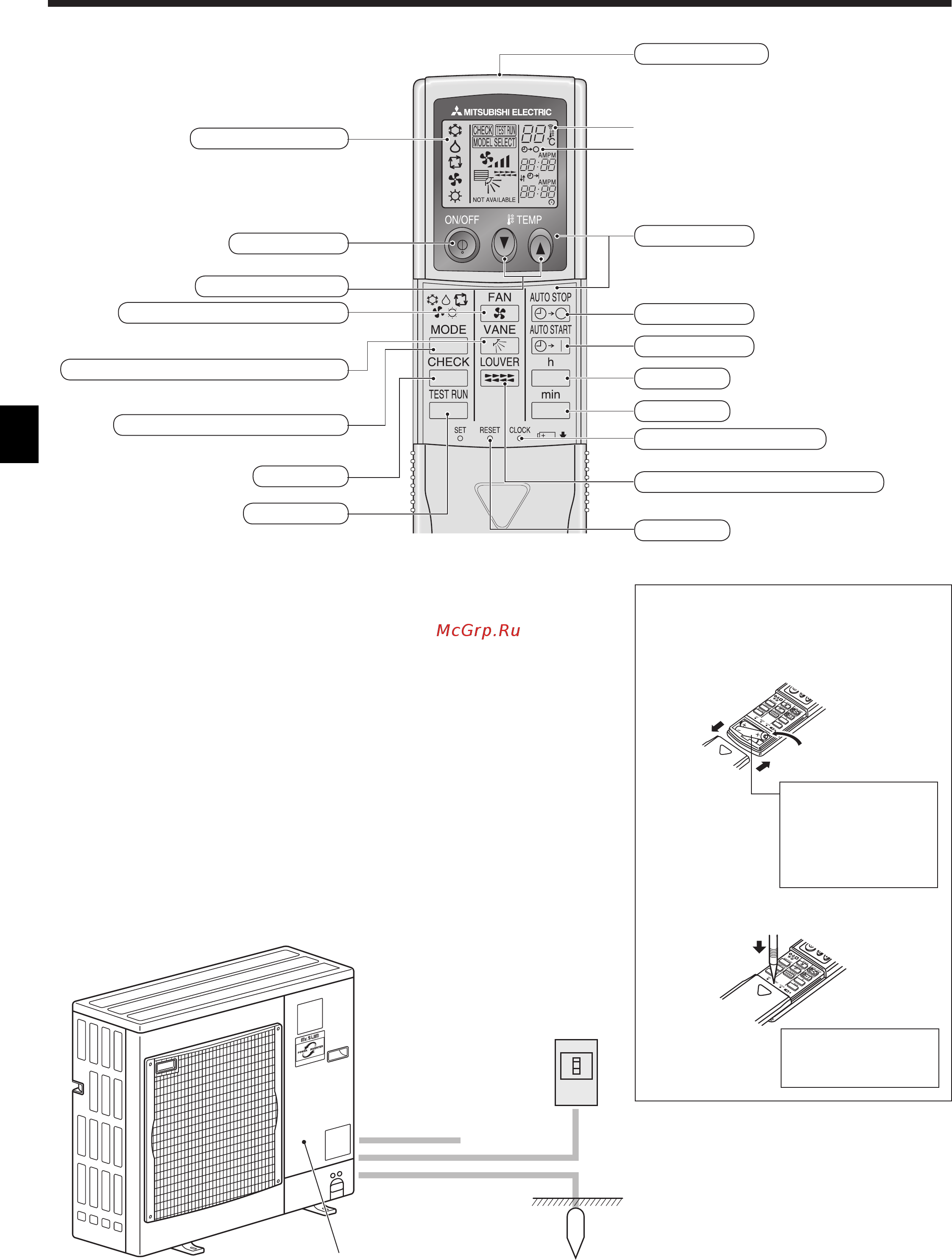

2. Parts Names
Transmission indicator
Timer indicator
When using the wireless remote controller, point it towards the receiver on the indoor unit.
If the remote controller is operated within approximately two minutes after power is
supplied to the indoor unit, the indoor unit may beep twice as the unit is performing the
initial automatic check.
The indoor unit beeps to confirm that the signal transmitted from the remote controller has
been received. Signals can be received up to approximately 7 meters in a direct line from
the indoor unit in an area 45° to the left and right of the unit. However, illumination such
as fluorescent lights and strong light can affect the ability of the indoor unit to receive
signals.
If the operation lamp near the receiver on the indoor unit is flashing, the unit needs to be
inspected. Consult your dealer for service.
Handle the remote controller carefully! Do not drop the remote controller or subject it to
strong shocks. In addition, do not get the remote controller wet or leave it in a location
with high humidity.
To avoid misplacing the remote controller, install the holder included with the remote
controller on a wall and be sure to always place the remote controller in the holder after
use.
* For explanation purposes, all of the items
that appear in the display are shown.
* All items are displayed when the Reset
button is pressed.
Remote controller display
ON/OFF button
Temperature set buttons
Fan Speed button (Changes fan speed)
Airflow button (Changes airflow up/down direction)
Mode button (Changes operation mode)
Check button
Test Run button
Transmission area
Operation areas
Timer Off button
Timer On button
Hour button
Minute button
Set Time button (Sets the time)
Louver button (Changes left/right direction)
Reset button
Battery installation/replacement
1. Remove the top cover, insert two AAA
batteries, and then install the top cover.
2. Press the Reset button.
1
2
3
Top cover
Two AAA batteries
Insert the negative
(–) end of each
battery first. Install the
batteries in the correct
directions (+, –)!
Press the Reset button
with an object that has
a narrow end.
