3. Installing the indoor unit
3.1. Check the indoor unit accessories (Fig. 3-1)
The indoor unit should be supplied with the following accessories.
PART NUMBER ACCESSORY
QUANTITY
LOCATION OF SETTING
32, 40, 50
1
Mount board 1
Fix at the back of the unit
2
Tapping screw 4 × 35
12
3
Felt tape 3
4
Band 3
5
Block of cushion 1
3.2. Installing the wall mounting fixture
3.2.1. Setting the wall mounting fixture and piping positions
Using the wall mounting fixture, determine the unit’s installation position
and the locations of the piping holes to be drilled.
Warning:
Before drilling a hole in the wall, you must consult the building contractor.

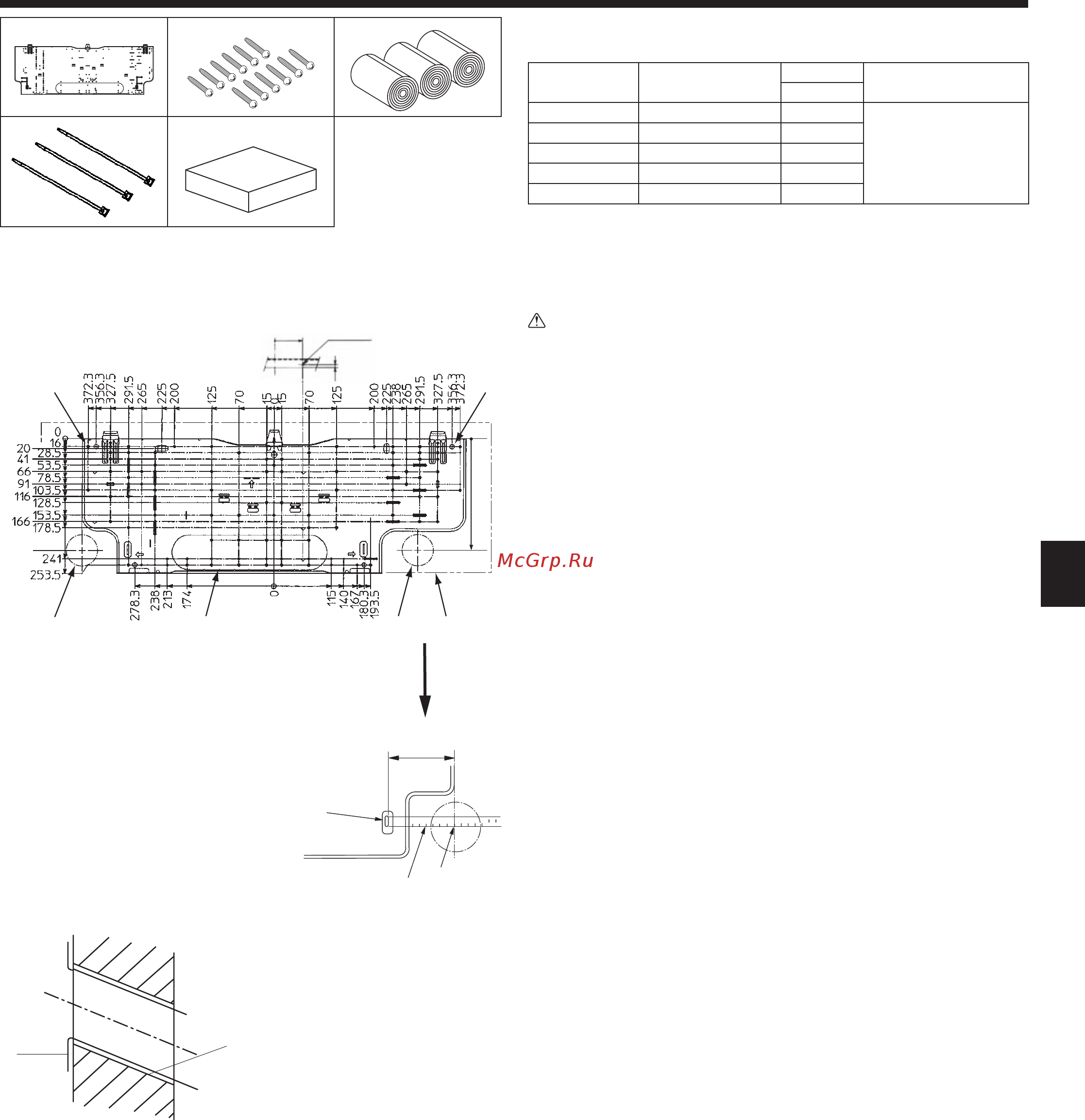

PKFY-P·VHM-E (Fig. 3-2)
AMount board 1
BIndoor unit
CBottom left rear pipe hole (ø65)
DBottom right rear pipe hole (ø65)
EKnockout hole for left rear hole (70 × 310)
FBolt hole (4-ø9 hole)
GCenter measurement hole (ø2.5 hole)
HTapping hole (77-ø5.1 hole)
IHole centre
JAlign the scale with the line.
KInsert scale.
3.2.2. Drilling the piping hole (Fig. 3-3)
Use a core drill to make a hole of 75-80 mm diameter in the wall in the
piping direction, at the position shown in the diagram to the left.
The hole should incline so that the outside opening is lower than the
inside opening.
Insert a sleeve (with a 75 mm diameter and purchased locally) through the
hole.
Note:
The
purpose of the hole’s inclination is to promote drain flow.
1 2 3
4 5
