2. Parts Names

■

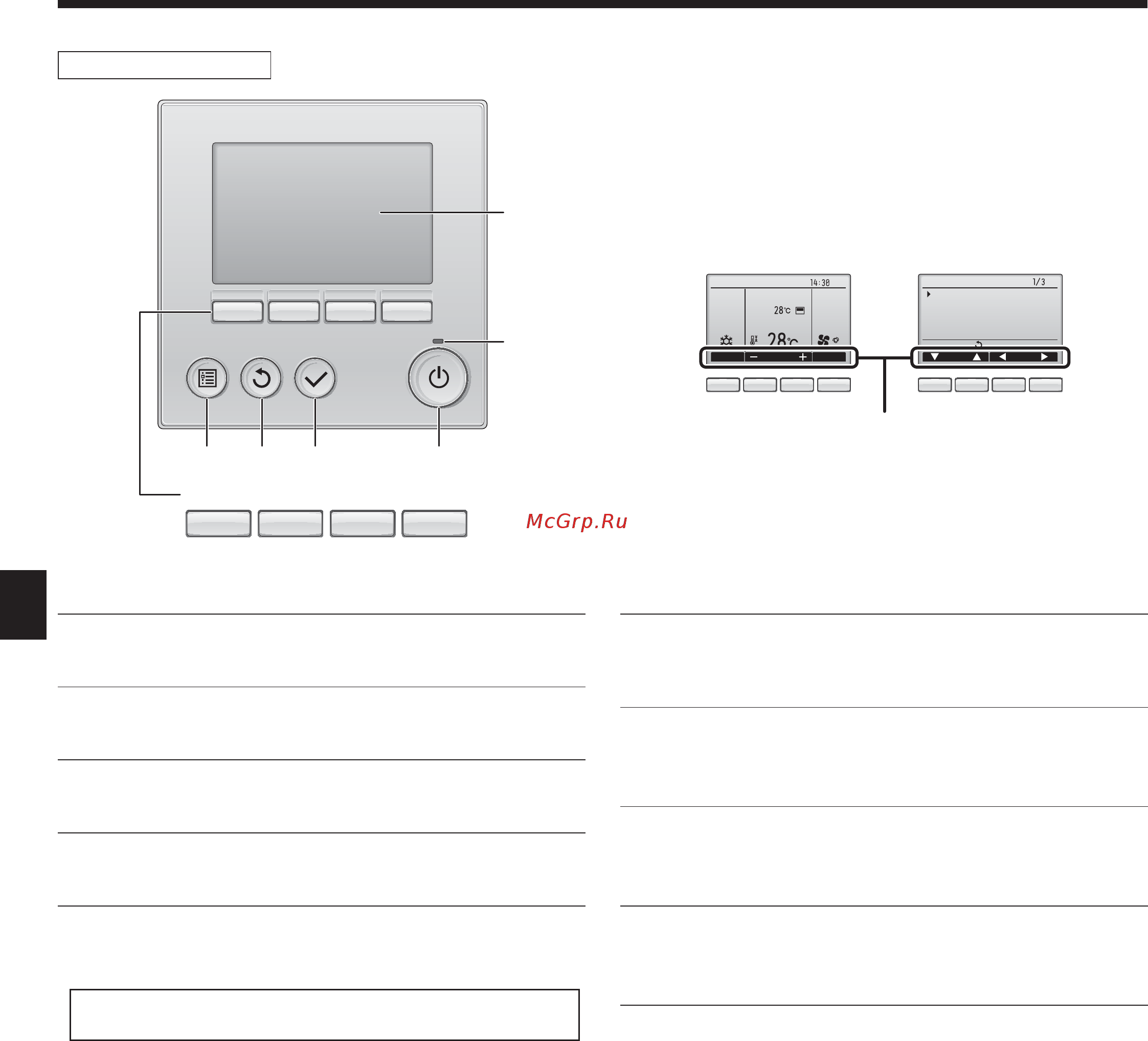

Wired Remote Controller

Function buttons

 





 

The functions of the function buttons change depending on the

screen.

Refer to the button function guide that appears at the bottom of the

LCD for the functions they serve on a given screen.

When the system is centrally controlled, the button function guide

that corresponds to the locked button will not appear.

Fri

Room

Set temp.

Mode Temp. Fan

Cool Auto

Main

Main display:

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay)

High power

Timer

Weekly timer

OU silent mode

Main display Main menu

Function guide

▌ [ON/OFF] button

Press to turn ON/OFF the indoor unit.

▌ [SELECT] button

Press to save the setting.

▌ [RETURN] button

Press to return to the previous screen.

▌ [MENU] button

Press to bring up the Main menu.

▌ Backlit LCD

Operation settings will appear.

When the backlight is off, pressing any button turns the backlight on

and it will stay lit for a certain period of time depending on the screen.

When the backlight is off, pressing any button turns the backlight on

and does not perform its function. (except for the [ON/OFF] button)

▌ ON/OFF lamp

This lamp lights up in green while the unit is in operation. It blinks while

the remote controller is starting up or when there is an error.

▌ Function button [F1]

Main display: Press to change the operation mode.

Main menu: Press to move the cursor down.

▌ Function button [F2]

Main display: Press to decrease temperature.

Main menu: Press to move the cursor up.

▌ Function button [F3]

Main display: Press to increase temperature.

Main menu: Press to go to the previous page.

▌ Function button [F4]

Main display: Press to change the fan speed.

Main menu: Press to go to the next page.
