Product Holding Bin
DHB2PT Series
CastleNet
®
Communications Network
The Prince Castle DHB Bins, external timers, and New Bun Cabinet
Timers can be inter-connected to form the CastleNet
®
Communication
Network. The network can be used for data transfer between bins and
timers for menu updates or to transfer product hold time from bin-to-
bin. A PDA (or similar device) or a notebook with Prince Castle
MenuView
®
software is used to connect to the network and enter the
desired changes.
Each bin is supplied with a standard 25' cable and allows units to be
“daisy-chained” together to form the network. If cable is too short, use
Prince Castle Extender Cable Kit, P/N PC-COMEXT.
The factory default address for Main bins and timers is address 1. The
factory default address for Specialty bins and timers is address 2. If a
third bin is used, the address must be set at 3.
IMPORTANT: Each timer must have a different address. If a
location has three bins, it is recommended that the bins and
timers be set consecutively to addresses 1 through 3.
2
Example
BIN 1BIN 2BIN 3
Use the UP or DOWN Arrow button to scroll to the desired
address. Press the PRINCE CASTLE LOGO button to store the
new address.
4
Available addresses are:
BIN
1 thru BIN9, BINA, BINB, BINC,
BIN
D, BINE and BINF.
IMPORTANT: Continue to Step 5 to
check the timer address. No two
timers can have the same address.
To change the timer address, turn the unit power switch off and
wait 15 seconds. Turn the power switch back on and
immediately press and hold the PRINCE CASTLE LOGO button
and the DOWN Arrow button for approximately 6 seconds or
until the display shows ADDR
entr BAR 2.
The address number will blink on/off.
6

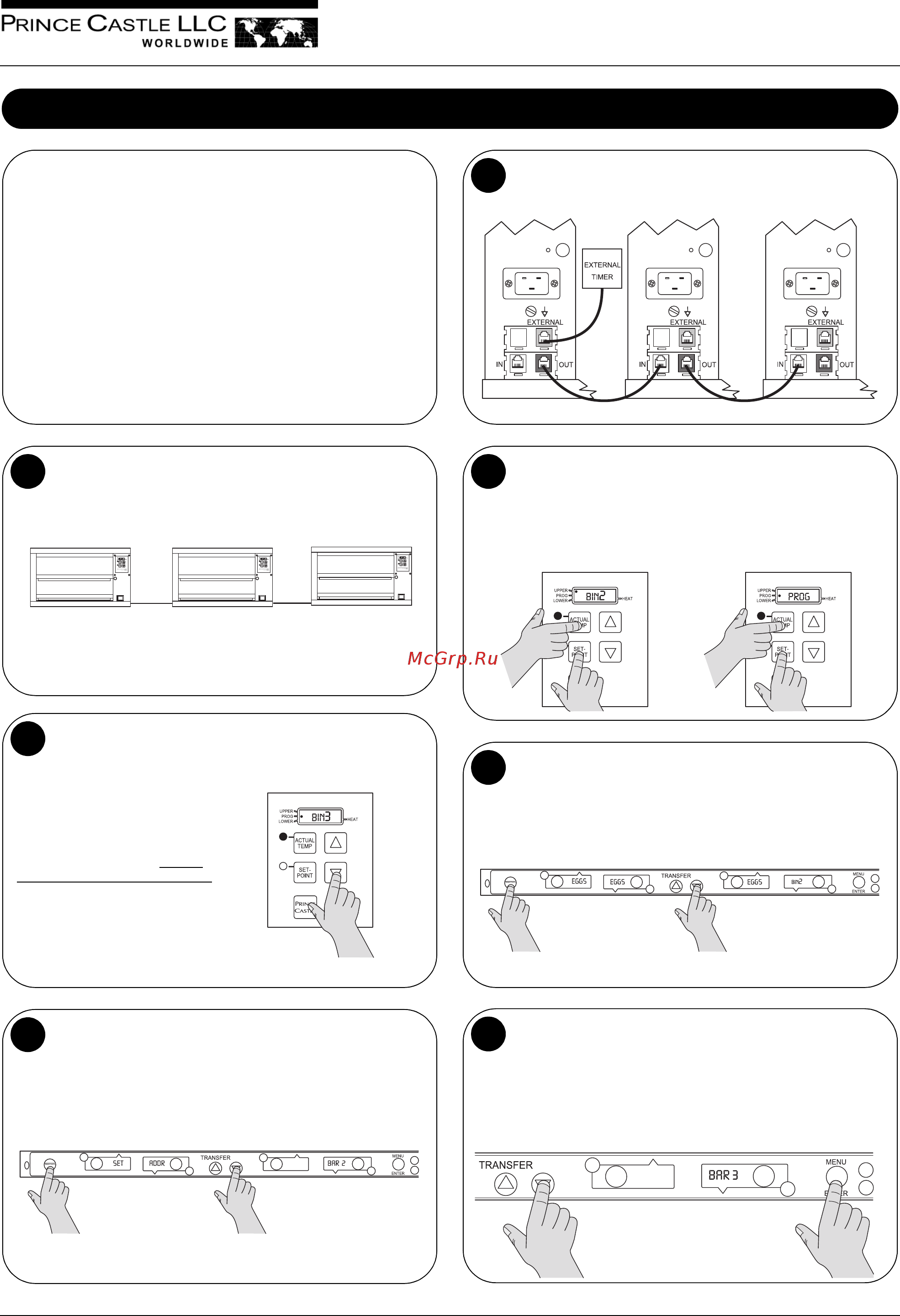

Telephone jack plugs are located on the back of the unit. Connect
the units using the cables provided as shown here.
1
BIN 1
Example
BIN 2 BIN 3
A Turn the power switch off, wait 15 seconds. Turn the switch to
ON while pressing and holding the ACTUAL TEMP and SET-
POINT buttons. The display will show the current bin address.
B. Continue to hold the buttons until PROG LED turns on.
3
A
B
To check the timer address, press and hold the PRINCE CASTLE
LOGO button and the DOWN Arrow button. The current timer
address will be displayed in the far right timer display.
To change the timer address, proceed to Step 6.
5
Use the UP or DOWN Arrow button to scroll to the desired
address. Press the MENU/ENTER button to store the new
address and return to normal Operating Mode.
Available addresses are:
BAR 1 thru BAR 9, BAR A, BAR B, BAR C, BAR D, BAR E and
BAR F.
