542-517revC-EN 15 Printed in USA 10/10 © 2010
Product Holding Bin
DHB2PT Series

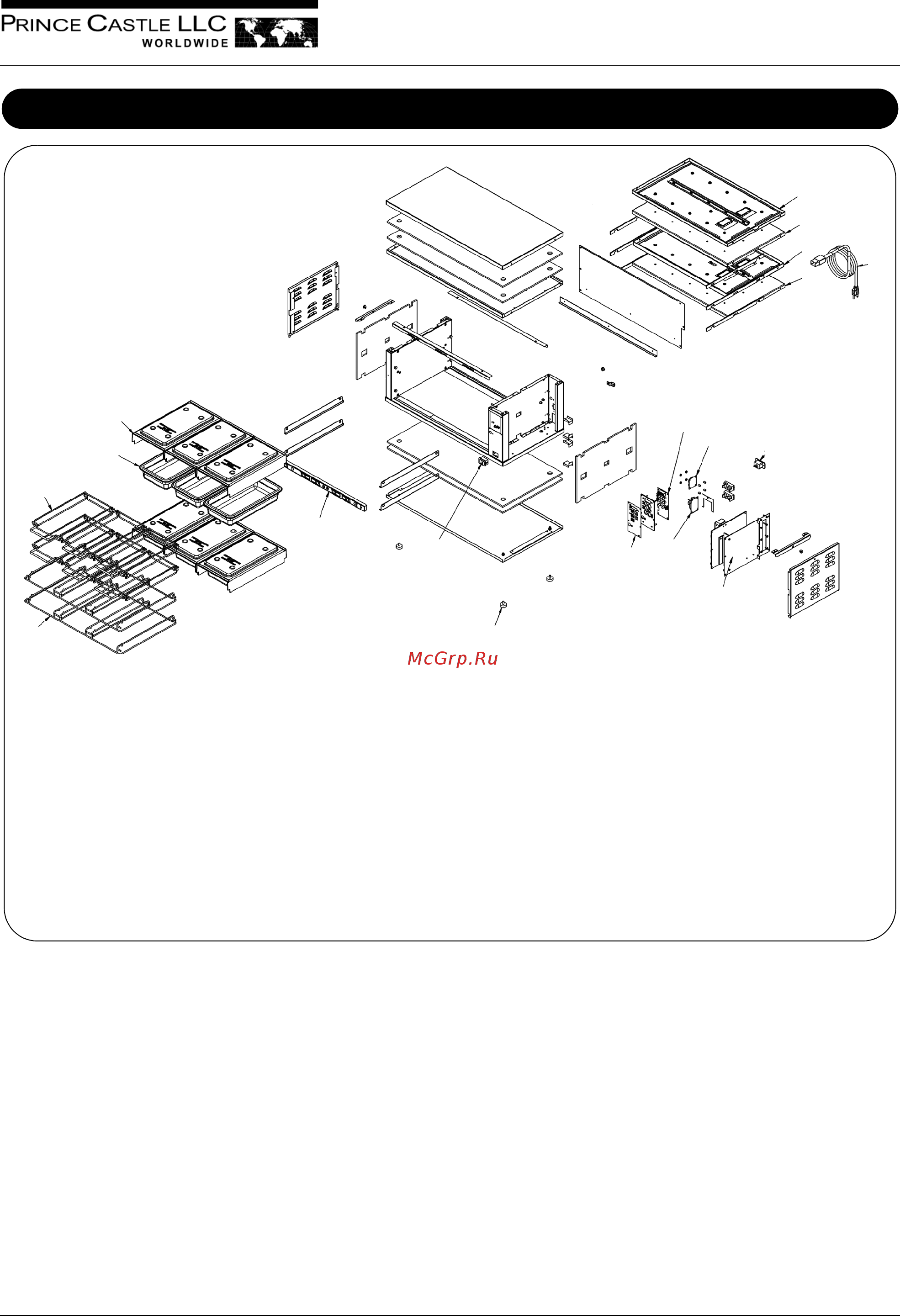

Exploded View and Parts List (DHB2PT-27B/-27BCE)
Ref. Part No. Description
1 541-833S Upper Heater Kit (DHB2PT-27B)
541-669S Upper Heat Assembly (DHB2PT-27BCE)
2 541-832S Lower Heater Kit (DHB2PT-27B)
541-695S Lower Heater Assembly (DHB2PT-27BCE)
3 541-724S Rack Kit
4 155695N-4 Pan (Pkg of 4)
5 541-723E4S Cover (Pkg of 4)
6 536-802S Display Overlay Kit
7 541-997S Timer Bar Kit
8 197-232S Mounting Foot (Pkg of 4)
9 541-734S Main PCB Kit
Ref. Part No. Description
10 541-719S Display PCB Kit
11 88-709-2-11S Speaker Kit
12 541-959S PCB Audio Interface Kit
13 78-184S Power Switch
14 88-609S Power Inlet Connector (DHB2PT-27B)
88-720-01S Power Inlet Connector (DHB2PT-27BCE)
15 72-200-15S Power Cord (DHB2PT-27B)
72-230S Power Cord (DHB2PT-27BCE)
Not Shown*
* 541-734S Control PCB (DHB2PT-27B)
* 541-735S Control PCB (DHB2PT-27BCE)
2
2
1
2
15
10
12
14
6
11
9
8
13
7
5
4
3
3
