Product Holding Bin
DHB2PT Series
Specifications
Model Volts Watts Hertz
DHB2PT-20B 120 1700 60
DHB2PT-27B 120 1650 60
DHB2PT-27BCE 230 2500 50
DHB2PT-33B 208 – 240 2500 50/60
Model Volts Watts Hertz
DHB2PT-20BCE 220 – 240 1500 50
DHB2PT-33BCE 240 2600 50
DHB2PT-33BGB 220 – 240 2500 50
Safety Information
Indicates information important to the proper operation of the unit.
Failure to observe may result in damage to the equipment and/or
severe bodily injury or death.
Indicates information important to the operation of the unit. Failure
to observe may result in damage to the equipment.
WARNING
CAUTION
Installation
A. Remove the unit from the carton and inspect for signs of damage. If
there is damage to the unit:
• notify the carrier within 24 hours of delivery
• save carton and packaging materials for inspection purposes
• contact your local dealer, or if purchased directly, the Prince Castle
Sales Department at 800-722-7853 or 1-630-462-8800 to arrange for a
replacement unit.
NOTE: When installing this unit, the ambient temperature at the mounting
site should not exceed 100°F.
B. Place the bin on a counter and seal the base to the counter with food-
approved sealant.
C. Plug the power cord into the bin and connect the plug into the proper
electrical outlet. All connections must be in accordance with local
electrical codes and any other applicable codes.
NOTE: The electrical receptacle should be a dedicated outlet. No other
equipment should be operating on the line (refrigerators, fryers, etc.).
D. If used, plug a Prince Castle external timer bar (consult factory for
model) data cable into the blue plug jack (external) located on the rear
of the Prince Castle holding bin. If cable from timer is too short, use
Prince Castle Extender Cable Kit, P/N PC-COMEXT.
E. Install the racks, pans and pan covers into the cavities.
F. Turn the power switch to ON. Allow 30 minutes for warm-up.
NOTE: If the unit is to be networked with other Prince Castle units, an
external timer may be connected to any one bin in the chain. Refer to
CASTLENET COMMUNICATIONS NETWORK in this manual.

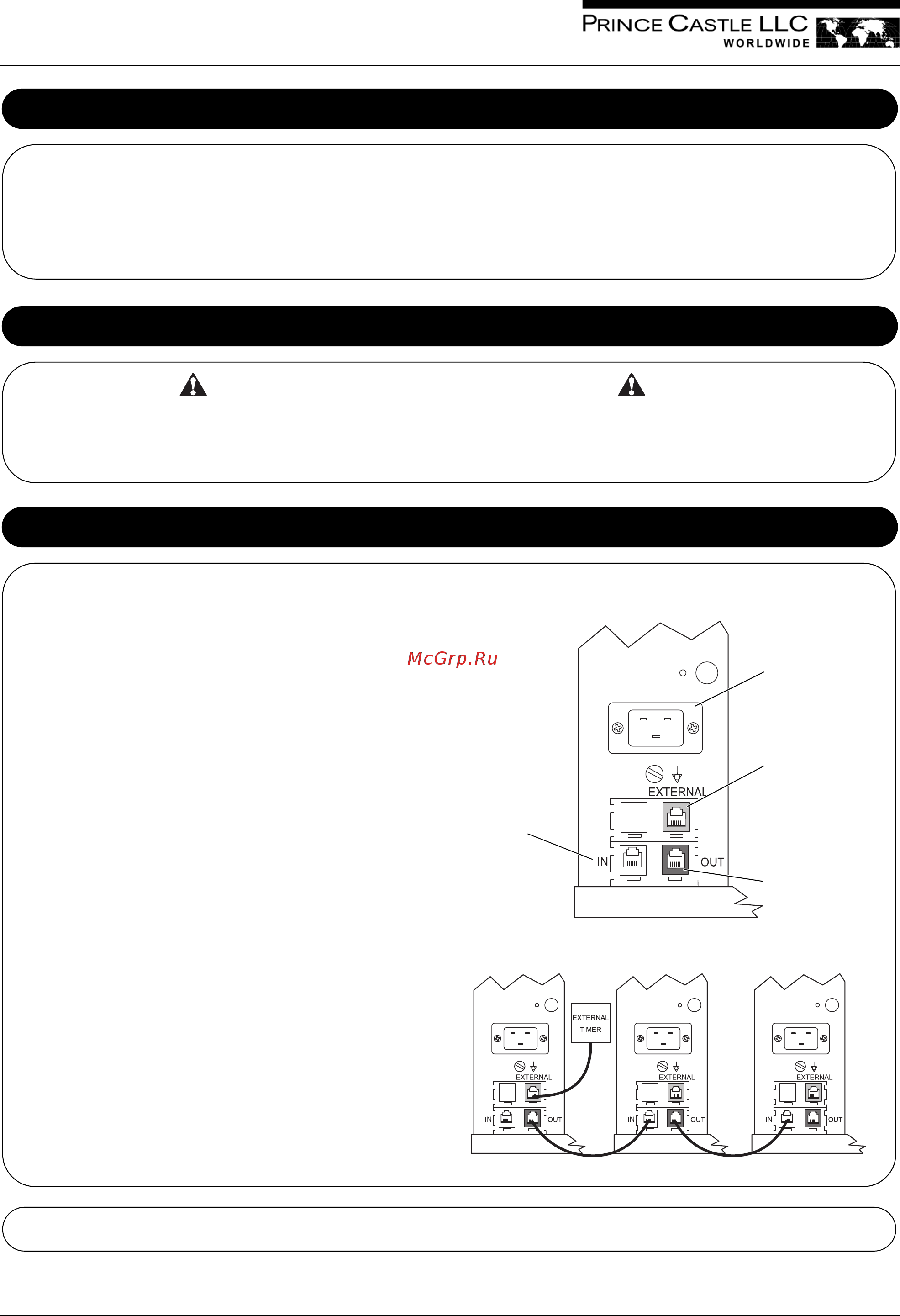

White Plug
Jack (in from
another unit)
Rear of PHU
Black Plug
Jack (out to
another unit)
Power Cord Inlet
Blue Plug Jack
(Plug external timer
data cable into here)
BIN 1 BIN 2 BIN 3
Prince Castle reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment.
