INSTALLATION AND USE MANUAL
Chapter 4
page 20
Installation and assembly
Technical service – MCZ S.p.A. all rights reserved - Reproduction prohibited
4. INSTALLATION AND ASSEMBLY
IMPORTANT!
The fireplace stove must be installed and connected
to the smoke duct only by a specialized technician, so
that all local and national regulations are complied
with.
Installation must in any case by carried out in
compliance with UNI 10683.
When the fireplace is unpacked, check for perfect operation of all
its parts or any damage which may have occurred during
shipping. The retailer or the carrier must be immediately
informed of any damage.
If the fireplace stove is installed in a place that is difficult to reach, its
weight can be reduced by removing the internal parts that make up the
fire box. However, be sure to put all of the parts back in place.
This operation is to be carried out only by specialized
personnel.
MCZ shall not be held liable if the preceding warning is not
complied with.
4.1. PREPARATION AND UNPACKING
Open the packaging, remove the stove unit from the pallet and position
it in the chosen location, taking care that its position complies with the
above instructions.
The fireplace stove must always be kept VERTICAL
while moving and only using hand trucks. Do not drag
the unit as this may damage the support feet.
Be especially careful that the door and its glass are protected from
mechanical collisions that could jeopardise their integrity.
Moving the product must be done with care. If possible, unpack the
fireplace stove in the area where it is to be installed.
The materials which make up the packaging are not toxic or harmful, so
no special procedures for disposal are required.
The final user must store, dispose or recycle packaging material in
accordance with local regulations.
4.2. SELECTION OF OPERATING MODE
IMPORTANT!
Before installation you will need to decide which
system to adopt.
FORMA can distribute hot air either by NATURAL CONVECTION (VN)
or by FORCED CONVECTION (VF) through the use a forced
ventilation.

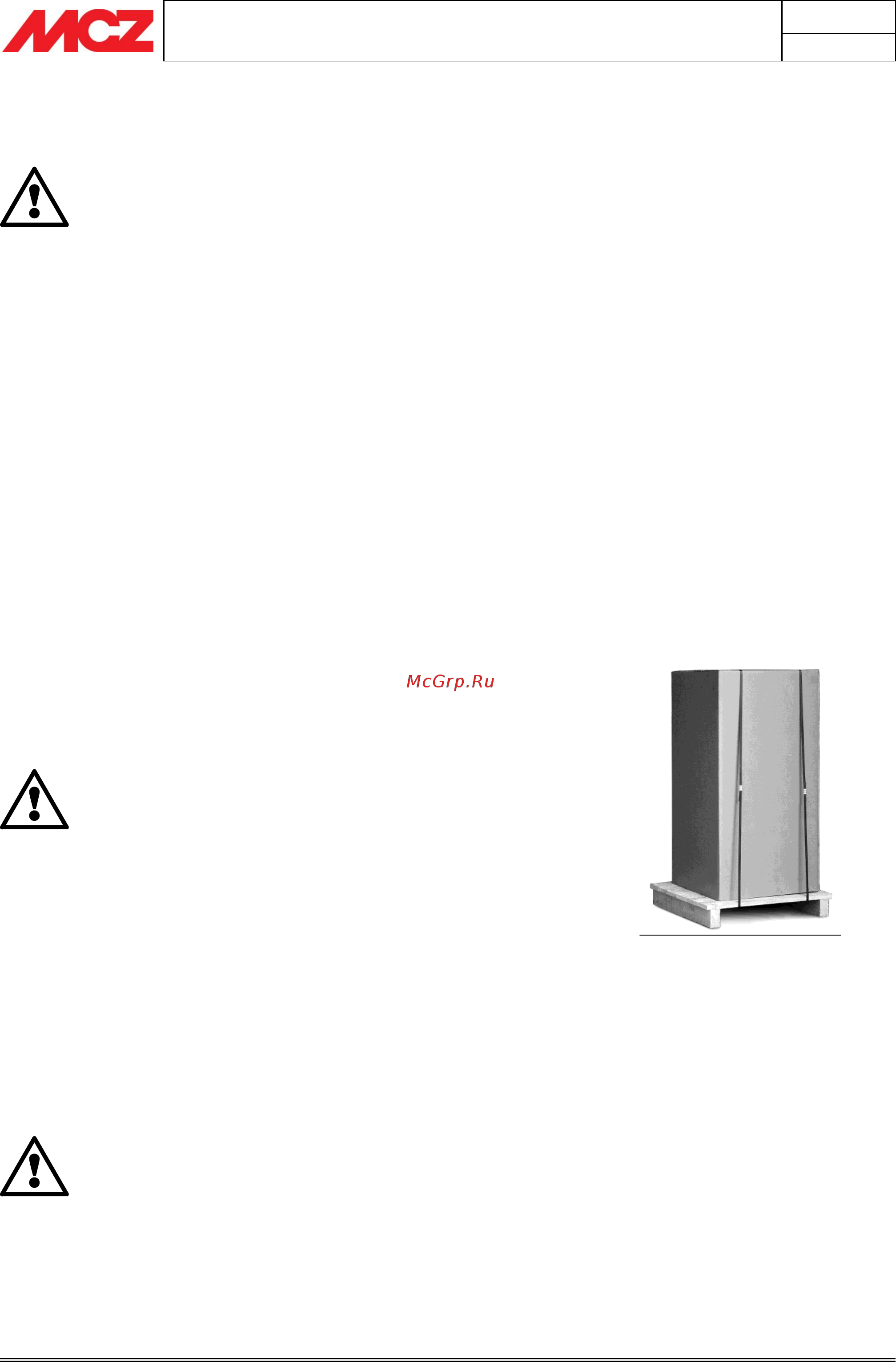

Example of fireplace stove packing
