INSTALLATION AND USE MANUAL
Chapter 4
page 22
Installation and assembly
Technical service – MCZ S.p.A. all rights reserved - Reproduction prohibited
For installation near flammable material, comply with the
following minimum safe distances: (Figure 3c)
A = 100 mm (distance from the sides and back)
B = 80 mm (height above floor)
If the stove is positioned over a floor or close to walls
made of flammable materials, it is advisable to use
sufficient insulation.
The hot air outlets must be placed at least 300 mm
from other materials. (e.g. curtains)
4.5. ADJUSTMENT OF HEIGHT AND BALANCING
The Forma Wood fireplace stove is provided with adjustment feet that
are to be screwed into the unit after you have decided its exact
position. Their purpose is to distance the stove unit from the floor and
to level the fire bed of the fireplace stove. They allow adjustment of
about 10 cm.
If you want to raise the fireplace stove more than 4 cm, you need to
create a masonry pedestal to set the product on. Do not eliminate
the feet. They are indispensable for levelling. Removing the
feet is considered a structural modification of the product and
therefore voids the guarantee.
In the VF forced ventilation configuration (i.e. with fan), you will need
to add the legs in the kit. Their purpose is to raise the fireplace stove as
shown in
figure 5b.
On the legs, you will need to install the provided
feet to adjust the level as described previously.
The levelling of the fireplace stove is essential so that
the fire door slides correctly.
If the floor is made of flammable material, the lower
part of the fireplace stove must be kept at least 8 cm
from the floor.
If the fireplace stove is not placed level, there is the
risk that door will not close perfectly, and that the
internal counterweights strike the structure, causing
noise each time the door is raised or lowered.
CHECK THAT THE DOOR MOVES CORRECTLY SEVERAL
TIMES BEFORE ENCLOSING THE FIREPLACE STOVE
IN THE CLADDING.

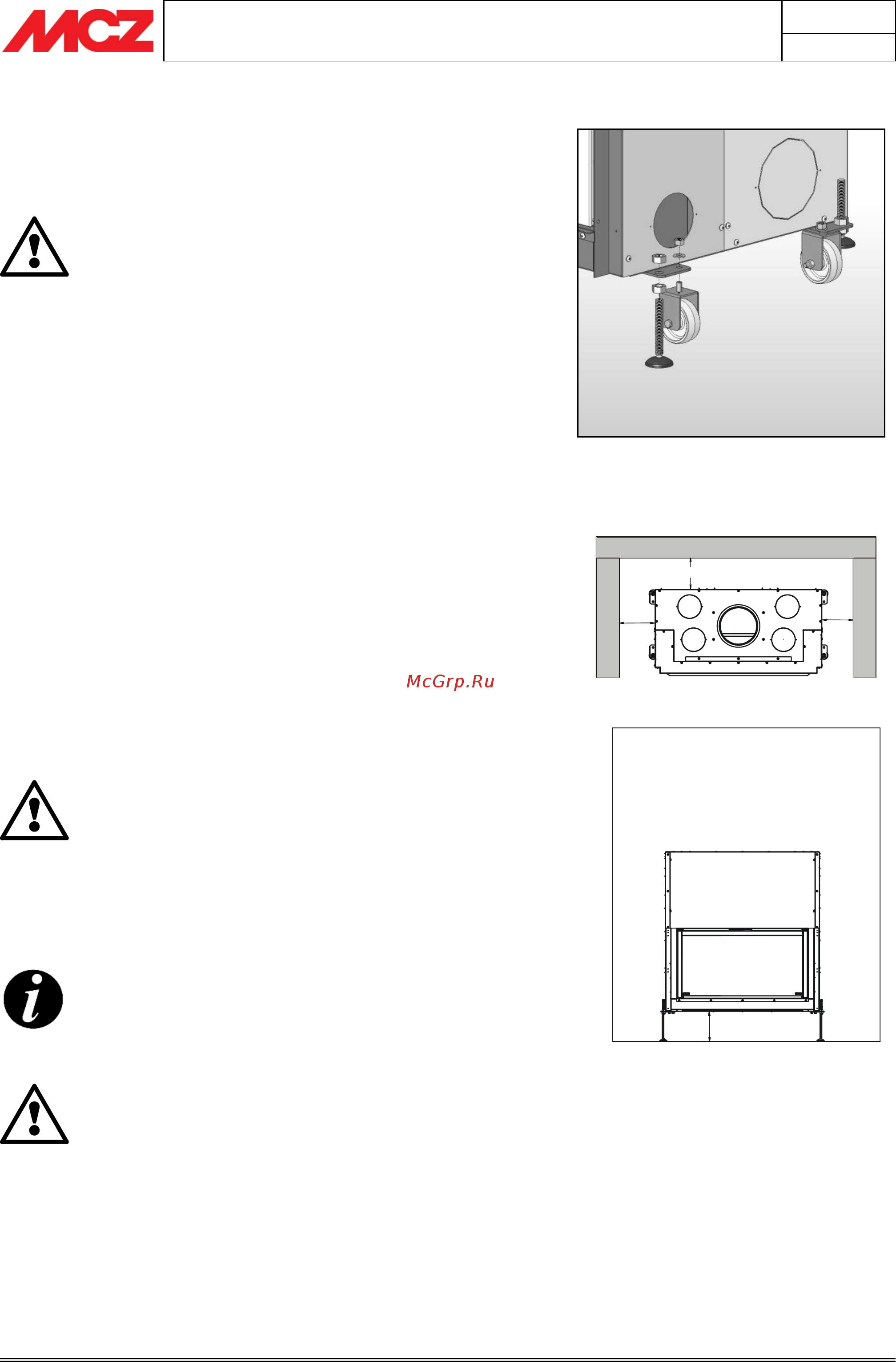

Figure 3b – Points of installation of castors and
feet
A
A
A
B
Figure 3c – Safe distances
