INSTALLATION AND USE MANUAL
Chapter 5
page 26
Comfort air kit
Technical service – MCZ S.p.A. all rights reserved - Reproduction prohibited
5. COMFORT AIR KIT– NATURAL VENTILATION AND FORCED
VENTILATION

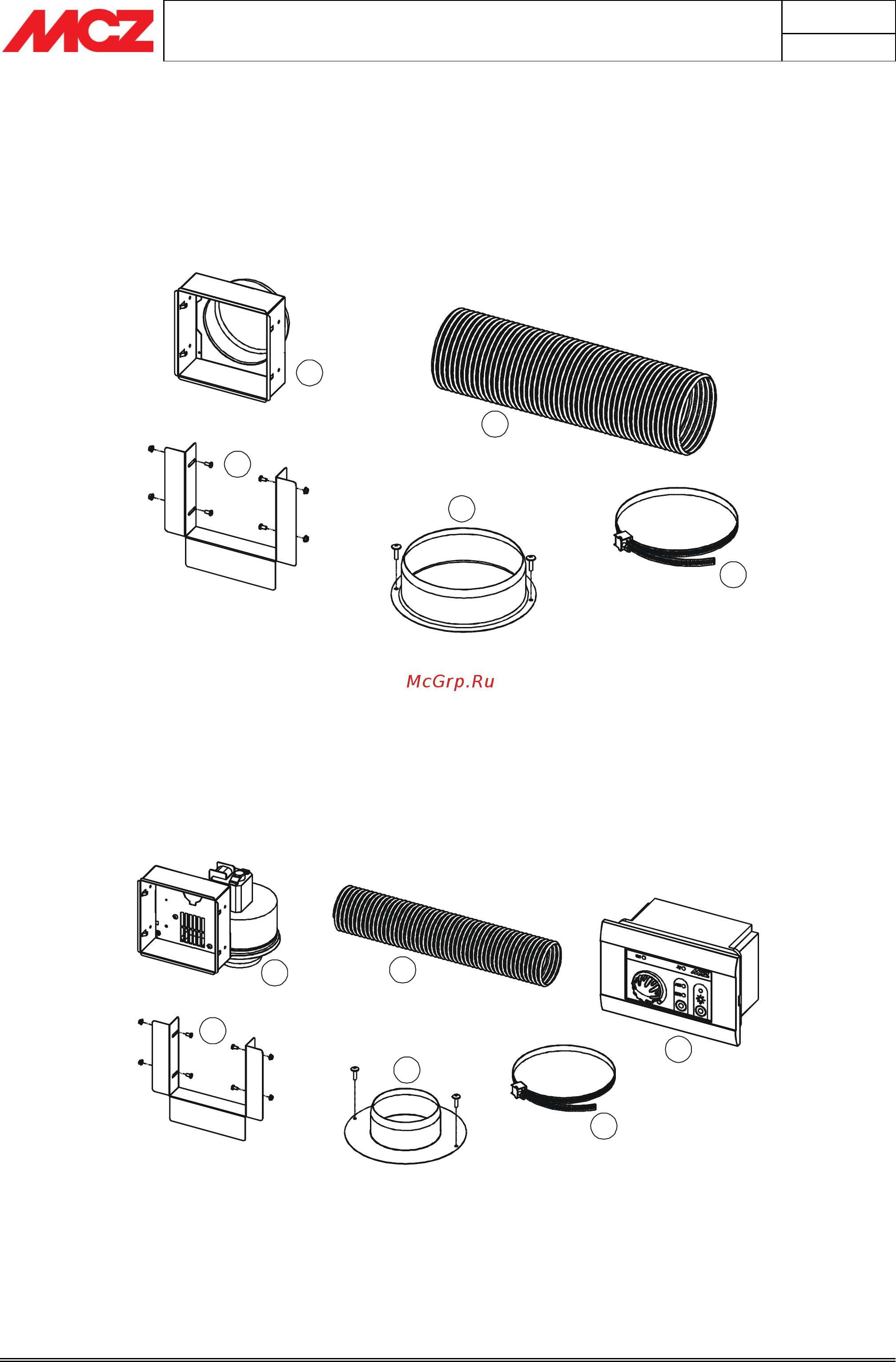

5.1.1. Components of natural ventilation kit with and without illumination
1
2
4
3
5
1. Structure of basic natural ventilation outlet (2
pieces)
2. Fastening bracket group (2 pieces)
3. Hose Ø 150 L=1.5 m (2 pieces)
4. Flange Ø 150 (2 pieces)
5. Hose clamp D.60-170 (4 pcs.)
5.1.2. Components of forced ventilation kit with and without illumination
1
2
3
4
5
6
1. Outlet structure with fan with and without
lighting (2 pieces)
2. Fastening bracket group (2 pieces)
3. Hose Ø 100 L=1.5 m (2 pieces)
4. Flange Ø 100 VF (2 pieces)
5. Hose clamp D.60-170 (4 pieces)
6. Control unit
