MCZ Forma 115 [35/46] Installation of temperature probe
![MCZ Forma 115 [35/46] Installation of temperature probe](/views2/1336204/page35/bg23.png)
INSTALLATION AND USE MANUAL
Chapter 5
page 35
Comfort air kit
Technical service – MCZ S.p.A. all rights reserved - Reproduction prohibited

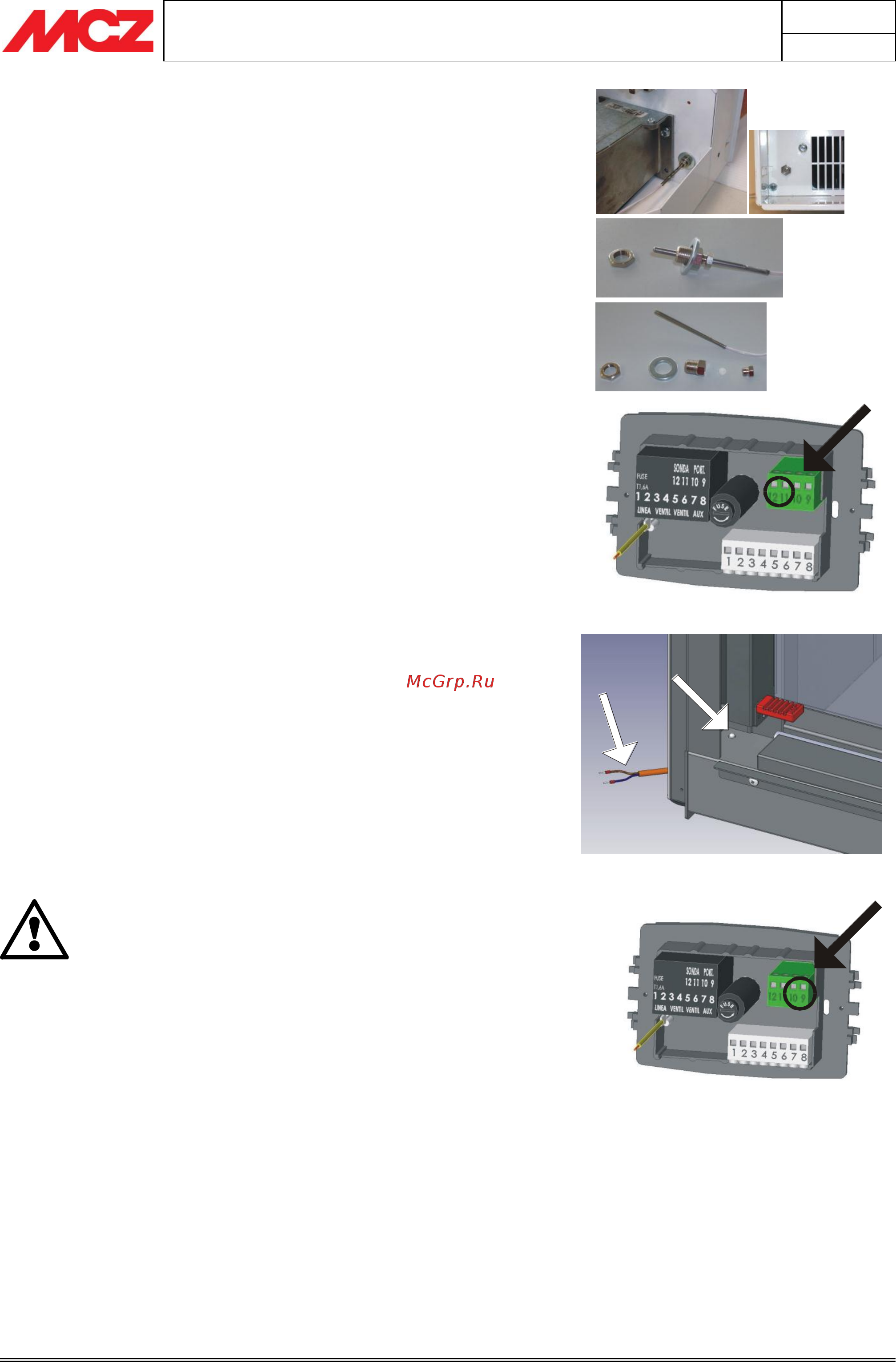

5.6. INSTALLATION OF TEMPERATURE PROBE
The temperature probe must be connected to the control unit and to
the duct (1) of a kit (see diagram below) and has a length of 2.5 m.
Greater distances require the use of and extension to be provided by
the installer.
PROBE INSTALLATION
Insert the plastic piece C in D and screw in B without forcing it.
On the threaded part of piece D insert washer E
The group thus formed A1 must be inserted on the rigid part of
the cable of probe A
Identify the pass-through hole for insertion of the probe on the
duct (1); on the grille at lower right alongside the fan.
Insert in the hole the cable of probe A with the block A1 and
secure it on the other side with the nut F
Insert the other end of the cable of probe A in the control unit
in the indicated position (12-11)
5.7. DOOR OPEN SWITCH
On fireplace stoves of the “Wood” line, MCZ has installed a switch
which, in the case of forced ventilation, must be connected to terminals
9-10 of the control unit, after removing the connection between the 2
terminals provided by the manufacturer. To this end, place an extension
of adequate length, in silicone material resistant to high temperatures.
Make sure the cable does not come into contact with the hot parts of
the fireplace stove.
This switch disables the fans when the door of the fireplace
stove is opened. This is indicated by the flashing of the fan active
indicator light (LED 2 see chap. 5.5).
IMPORTANT!
Mcz shall not be held liable for smoke coming out of
the air outlets if the switch is not properly connected
to the control unit.
