INSTALLATION AND USE MANUAL
Chapter 5
page 37
Comfort air kit
Technical service – MCZ S.p.A. all rights reserved - Reproduction prohibited

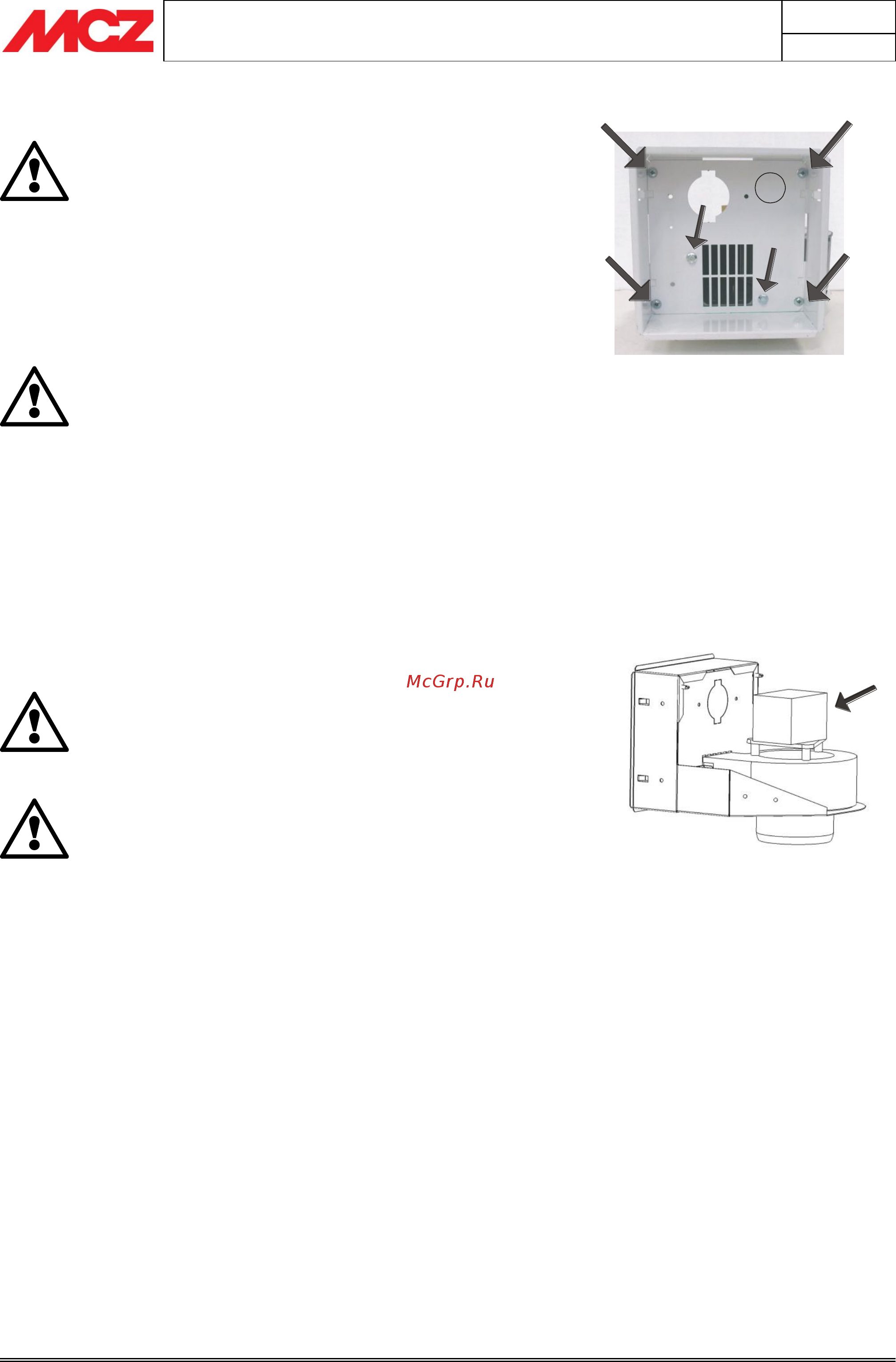

5.9. REPLACING THE FAN
ATTENTION!
DISCONNECT THE 230 V POWER SUPPLY.
Remove the air outlet
Loosen the four screws A that are located on the grille on the
four corners fig. 8
Loosen the two middle screws B that hold the fan to the duct
ATTENTION!
WHEN THE CABLES ARE DETACHED, MAKE SURE TO
SECURE THEM.
IF THEY FALL INSIDE THE CLADDING THERE IS NO
WAY TO GET THEM BACK OUT.
Extract grille C
Detach the cable of the fan
If the light fixture has a light bulb, disconnect the power cables
when extracting the flange.
It is now sufficient to turn the fan with respect to the duct to
allow passage without damaging the piece.
IMPORTANT!
THE FAN MUST FACE AS SHOWN IN FIG.9. NO OTHER
POSITIONS THAN THE ONE SHOWN ARE PERMITTED.
IMPORTANT!
All electrical connections must be performed by
qualified personnel in accordance with current laws in
each nation, using suitable equipment and in
compliance with the diagram indicated in this booklet.
All operations must be performed with the 230V 50 Hz
mains power cord disconnected.
Mcz shall not be held liable for damage to persons or
things due to incorrect connections or improper use of
the device
Figure 9– Fan position
A
A
A
A
B
B
C
Figure 8– Fan replacement
