Assembly and Disassembly
Attaching/Removing the Battery
Attaching the Battery
1. Slightly press the belt clip, and insert the tab at the top of the battery into the slots at
the top of the radio’s body, as shown in figure 1.
2. Slightly press the bottom of the battery until a click is heard. By then, the battery latch
locks with the main unit and assembly is finished. See figure 2 below.
Note: If the battery is not well locked, please remove the battery and attach it again.

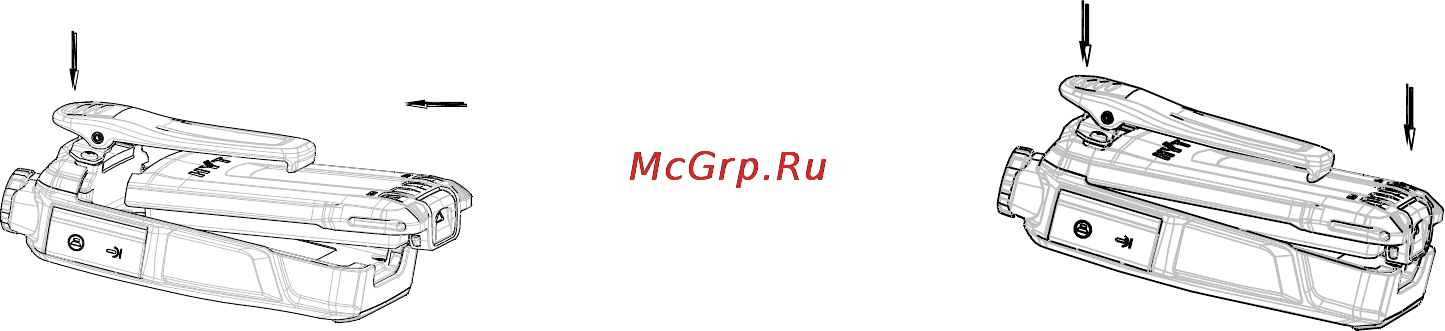

Figure 1 Figure 2
Removing the Battery
1. Please turn off the radio first. Then hold the top of radio unit and press the belt clip to
make its bottom up. Lift the battery latch, as shown in figure 3.
2. When the bottom of battery is lifted, release the battery latch and remove the battery
from the radio’s body, as shown in figure 4. Note: To avoid serious abrasion between
the top tap and the slot, do not tilt the battery to a large angle.
