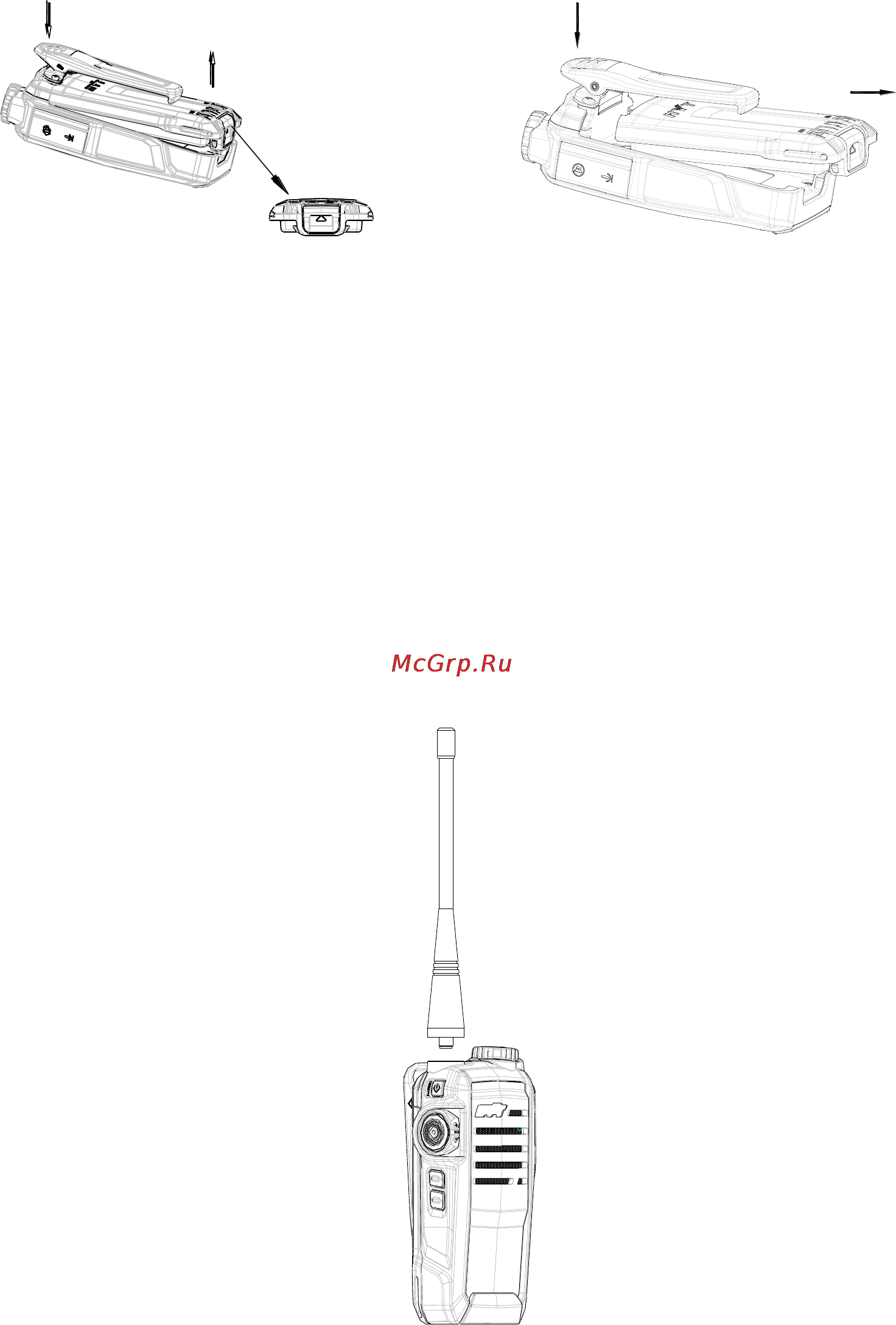

Figure 3 Figure 4
Attaching/Removing the Antenna
Attaching the Antenna
1. Align the threaded end of the antenna with the radio’s antenna connector.
2. Turn the antenna clockwise until it is screwed down, shown as figure 5.
Removing the Antenna
Turn the antenna counter-clockwise until it is loosened and screwed out.
Figure 5
Attaching/Removing the Belt Clip
Attaching the Belt Clip
Loosen the screws of belt clip from the main unit; fasten the belt clip to the main unit
(make sure the screw holes of belt clip are aligned with those of aluminum chassis); and
