12

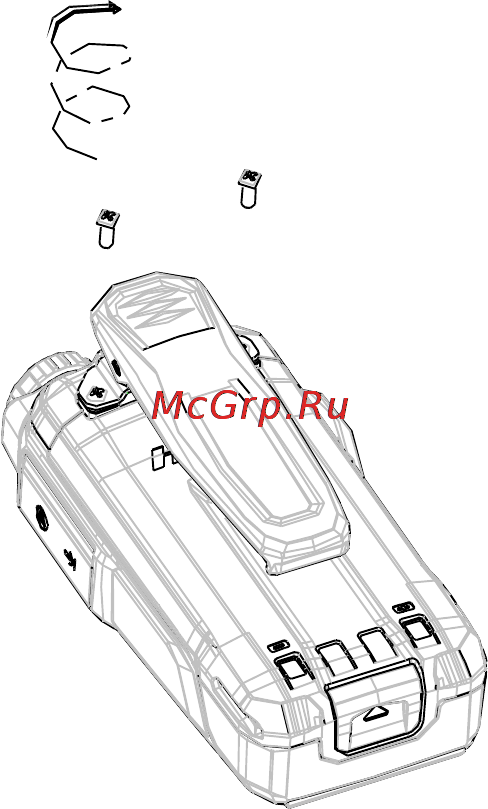

clockwise screw down the belt clip. See figure 6 below.
Figure 6
Removing the Belt Clip
Turn the screwdriver counter-clockwise to loosen the screw. Please refer to the
operations for attaching the belt clip.
Attaching/Removing the Earpiece or Microphone
Attaching the Earpiece/Microphone
1. Open (not remove) the accessory jack cover.
2. Plug the audio accessory firmly into the accessory jack, and then secure the screw,
shown as figure 7.
