ASRock 775i65G Motherboard

1616

EnglishEnglish

English

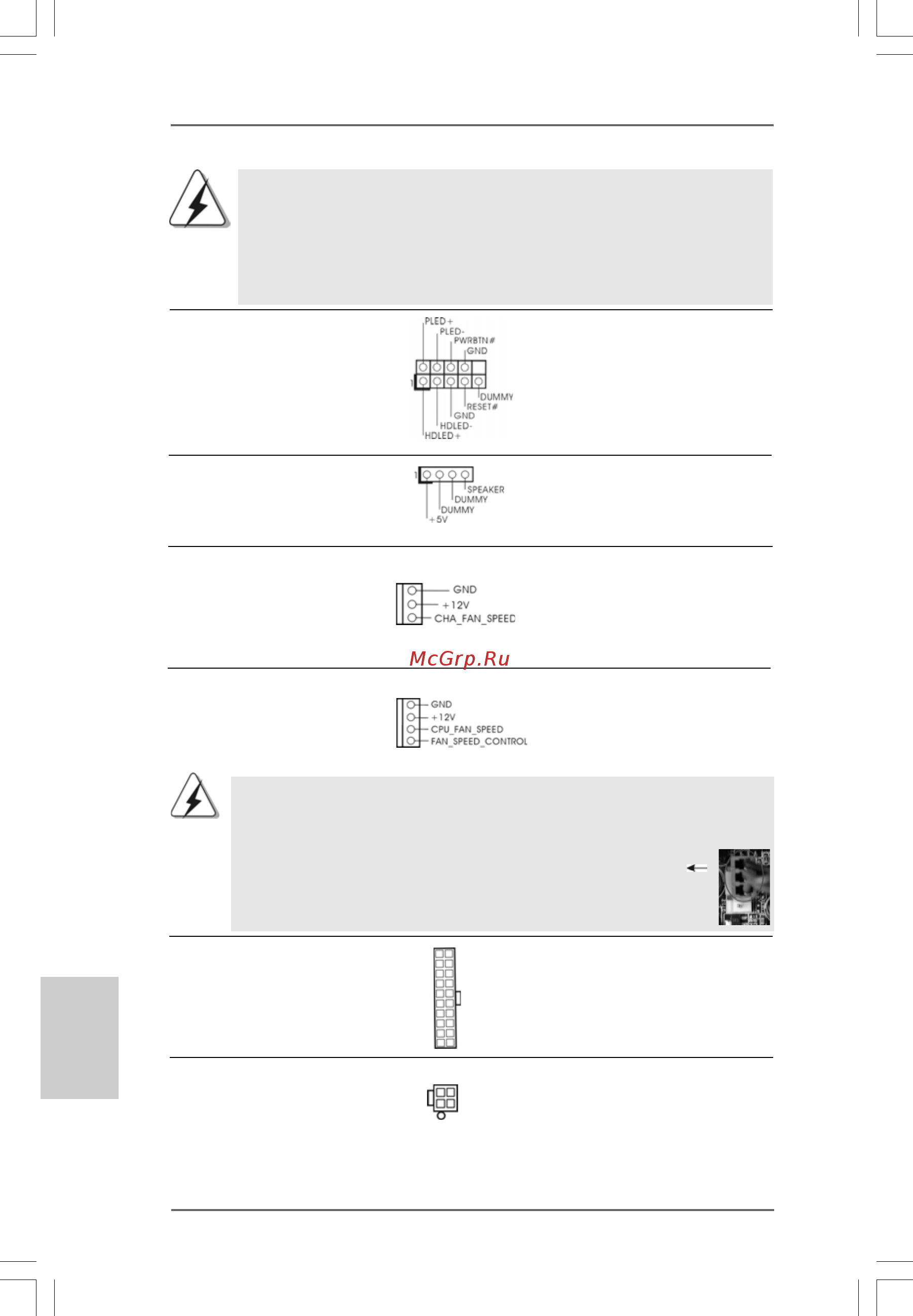

System Panel Header This header accommodates

(9-pin PANEL1) several system front panel

(see p.2 No. 14) functions.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this header.

(see p.2 No. 15)

Chassis Fan Connector Please connect the chassis fan

(3-pin CHA_FAN1) cable to this connector and

(see p.2 No. 13) match the black wire to the

ground pin.

CPU Fan Connector Please connect the CPU fan

(4-pin CPU_FAN1) cable to this connector and

(see p.2 No. 6) match the black wire to the

ground pin.

1. +5VA is used for audio power only, please don’t connect it to any

other power, such as USB.

2. HD (Azalia) audio front panel and AC’97 audio front panel have

different pin-definition. Incorrect connection of the audio front panel

and the front panel audio header may cause permanent damage to

this motherboard.

ATX Power Connector Please connect an ATX power

(20-pin ATXPWR1) supply to this connector.

(see p.2 No. 3)

ATX 12V Connector Please note that it is necessary

(4-pin ATX12V1) to connect a power supply with

(see p.2 No. 2) ATX 12V plug to this connector

so that it can provides sufficient

power. Failing to do so will cause

the failure to power up.

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

Pin 1-3 Connected
