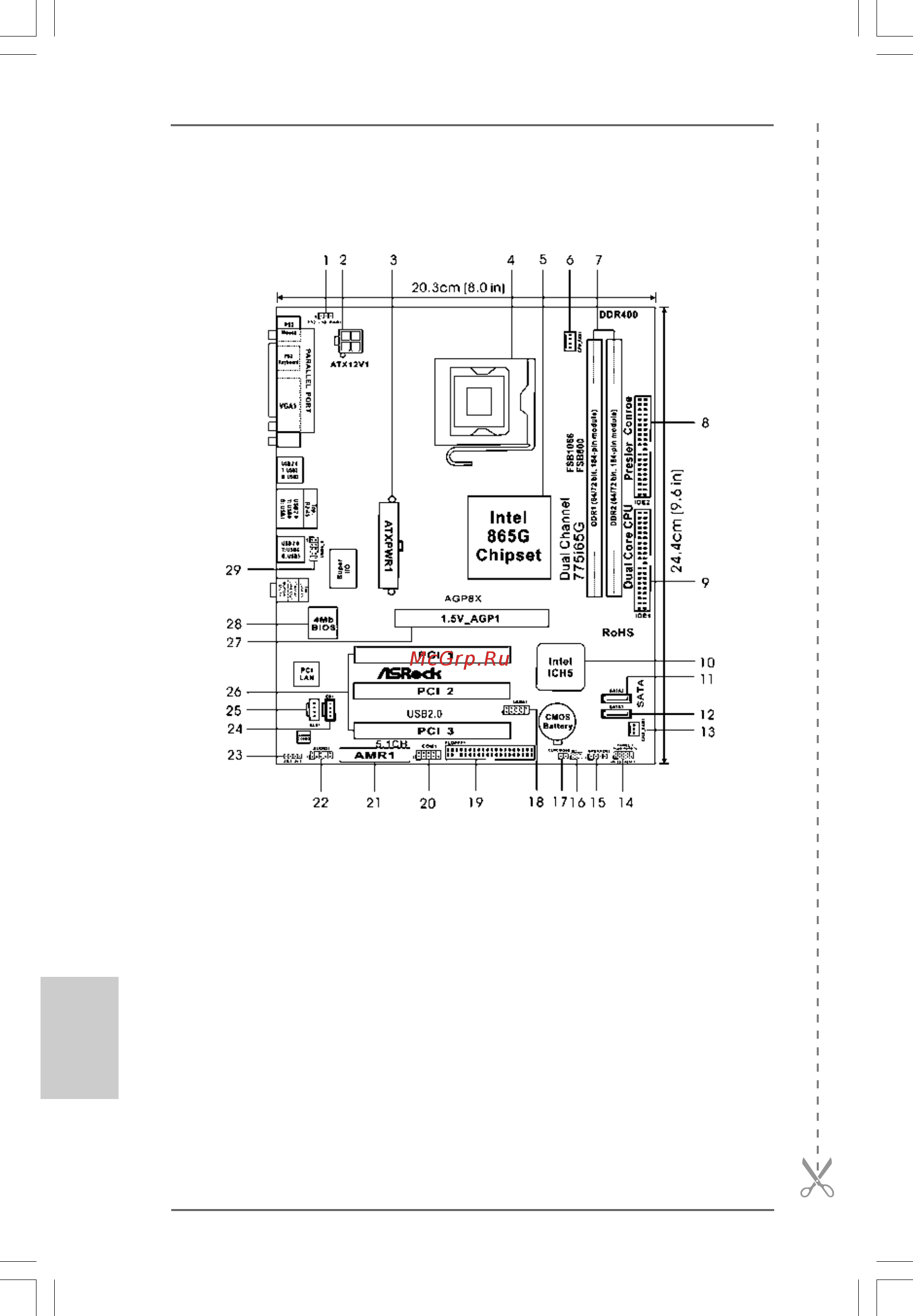

ASRock 775i65G Motherboard

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

EnglishEnglish

English

1 PS2_USB_PWR1 Jumper 16 Infrared Module Header (IR1)

2 ATX 12V Connector (ATX12V1) 17 Clear CMOS Jumper (CLRCMOS0)

3 ATX Power Connector (ATXPWR1) 18 USB 2.0 Header (USB67, Blue)

4 775-Pin CPU Socket 19 Floppy Connector (FLOPPY1)

5 North Bridge Controller 20 Serial Port Connector (COM1)

6 CPU Fan Connector (CPU_FAN1) 21 AMR Slot (AMR1)

7 184-pin DDR DIMM Slots (DDR1- 2) 22 Front Panel Audio Header (AUDIO1)

8 Secondary IDE Connector (IDE2, Black) 23 JR1 / JL1 Jumpers

9 Primary IDE Connector (IDE1, Blue) 24 Internal Audio Connector: CD1 (Black)

10 South Bridge Controller 25 Internal Audio Connector: AUX1 (White)

11 Secondary Serial ATA Connector (SATA2) 26 PCI Slots (PCI1- 3)

12 Primary Serial ATA Connector (SATA1) 27 AGP Slot (1.5V_AGP1)

13 Chassis Fan Connector (CHA_FAN1) 28 BIOS FWH Chip

14 System Panel Header (PANEL1) 29 Shared USB 2.0 Header (USB4_5, Blue)

15 Chassis Speaker Header (SPEAKER 1)
