24

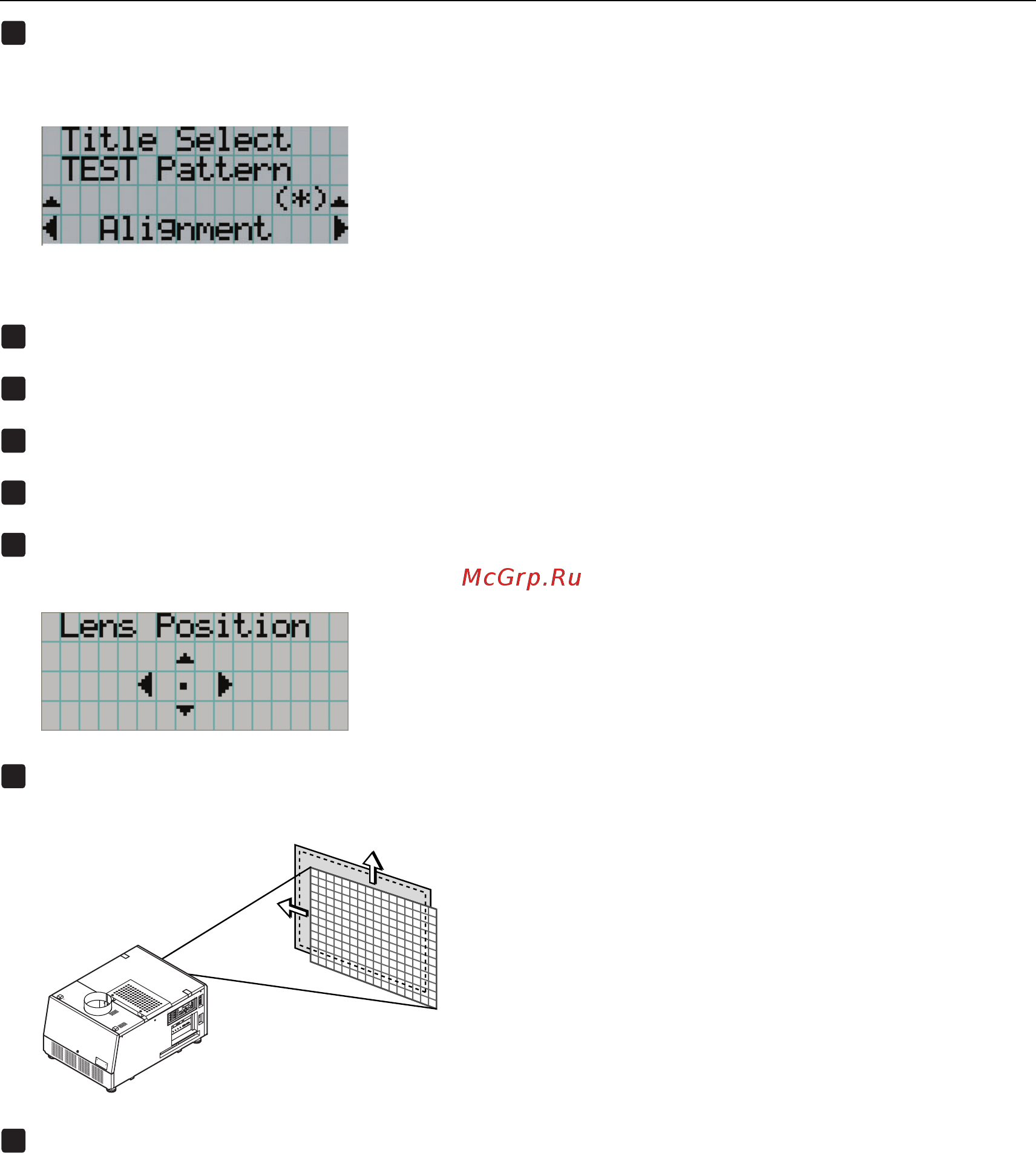

3. Projection of Images (Basic Operation)
7
Display on the LCD the name of the test pattern to be projected, then press the ENTER button.
The test pattern is displayed.
• To cancel the test pattern display, reselect the signal to be project.
3-4-2. Adjusting the position of the projected screen (Lens shift)
1
Press the MENU button.
2
Press the LEFT/RIGHT button to display “Configuration” on the LCD screen.
3
Press the DOWN button.
4
Press the LEFT/RIGHT button to display “Lens Control” on the LCD screen.
5
Press the DOWN button.
The screen (“Lens Position”) to adjust the position of the projected screen is displayed.
6
Press the UP/DOWN/LEFT/RIGHT button.
The position of the projected screen moves in the selected direction.
1
2
3
4
5
L
A
M
P
M
E
N
U
E
N
T
E
R
D
O
U
S
E
R
K
E
Y
L
O
C
K
E
X
I
T
I
M
B
6
7
8
7
Press the EXIT button when adjustment is complete.
The display will return to a menu one level above (where “Lens Control” is displayed).
