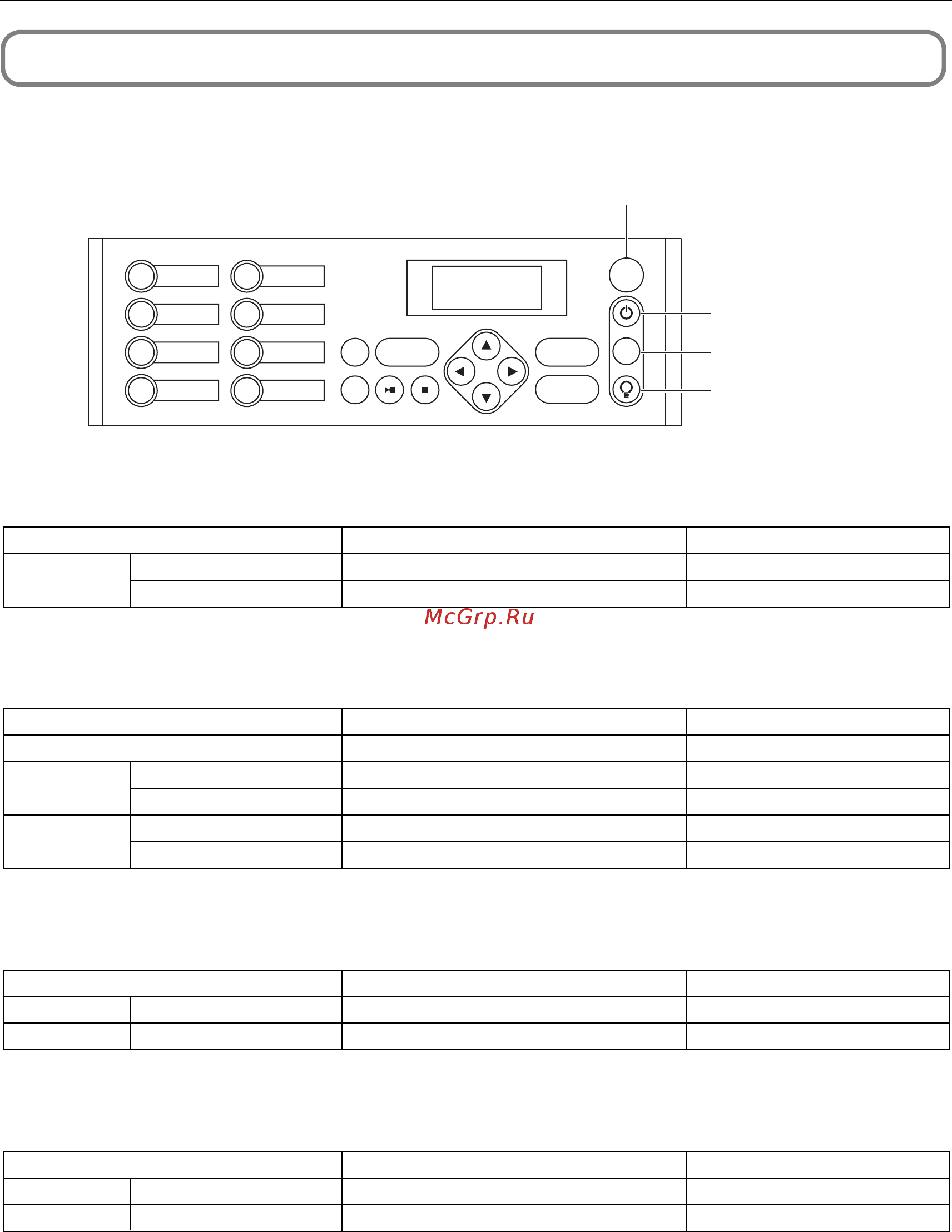

52
6. Appendix
6-2. Indicator display list
See the descriptions below when any of four buttons on the control panel or the Rear STATUS indicator on the rear of the
projector is lit or blinking. The projector also has a warning function that uses a buzzer.
1
2
3
4
5
LAMP MENU ENTER
DOUSER
KEY
LOCK
EXIT
IMB
6
7
8
POWER button
KEY LOCK button
DOUSER button
LAMP ON/OFF button
6-2-1. KEY LOCK button
Indicator condition
Steady light White
Orange
Projector condition
The key lock is off.
The key lock is on.
Note
-
-
6-2-2. POWER button
Indicator condition
Off
Blinking light
Steady light
Projector condition
The project power supply is off.
The projector is starting up.
The projector is cooling down.
The projector is turned on.
The projector is in standby.
Note
-
Wait for a moment.
Wait for a moment.
-
-
Green
White
Green
White
6-2-3. DOUSER button
Indicator condition
Blinking light White
Steady light Green
Projector condition
The douser is closed.
The douser is opened.
Note
-
-
6-2-4. LAMP ON/OFF button
Indicator condition
Blinking light White
Steady light Green
Projector condition
The lamp is off.
The lamp is on.
Note
-
-
