44
5. Maintenance of Your Projector
5-3-1. Replacing air filters for the lamp air inlet
Prepare the optional NC-80AF01 to replace air filters for the lamp air inlet. The NC-80AF01 contains six replacement air filters.
Two air filters are required for the lamp air inlet.
1
Turn off the power to the projector.
2

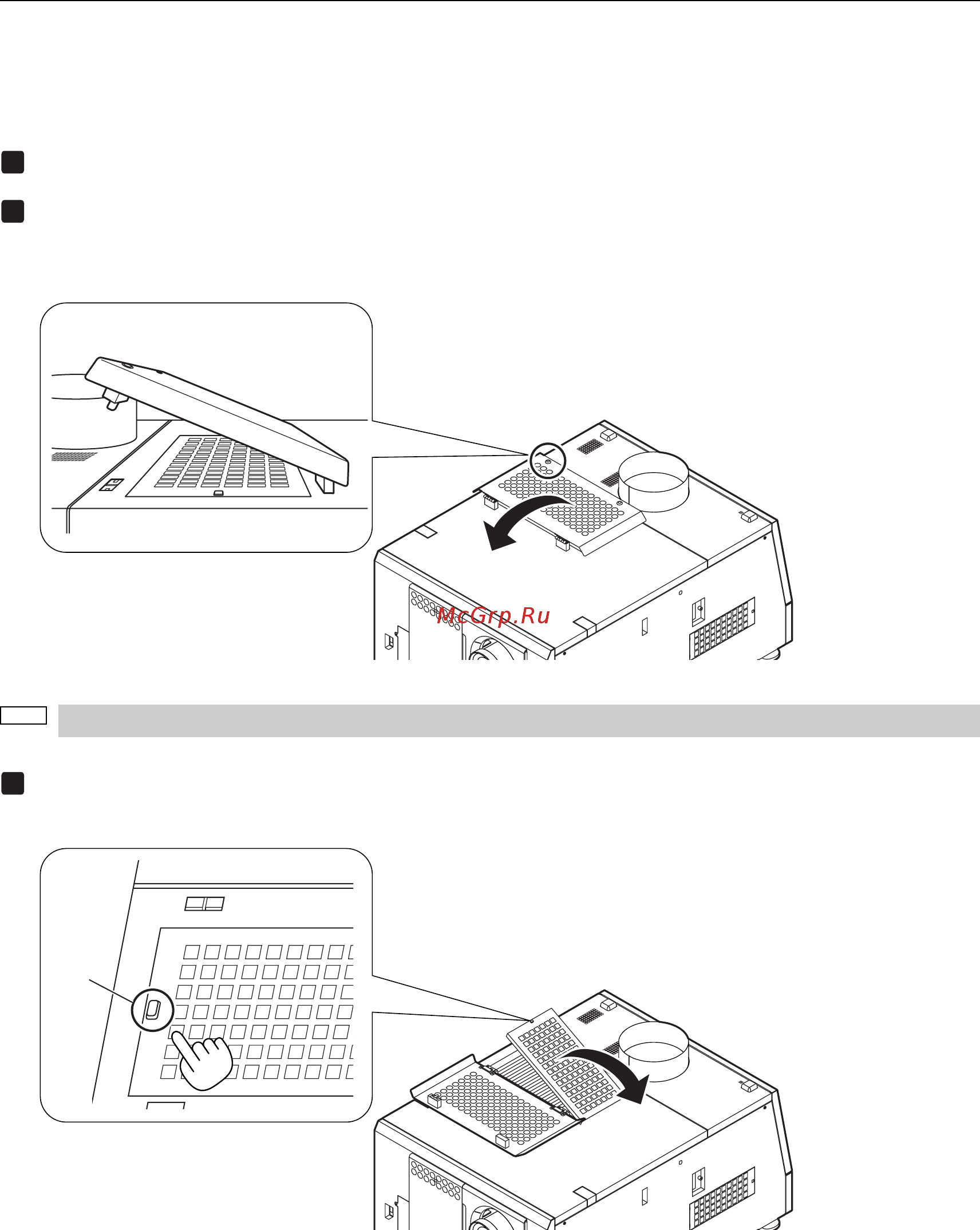

Open the air inlet cover.
The air inlet cover is fastened by a leg on the top left corner of the cover when the project is facing towards you. Lift the
leg up to open the air inlet cover.
NOTE
Take care not to damage the upper surface of the projector when opening the air inlet cover.
3
Remove the filter cover.
Push the latch until it clicks to unlock the filter cover.
Latch
