41
4. Using Menus
4-6-6. IP Address

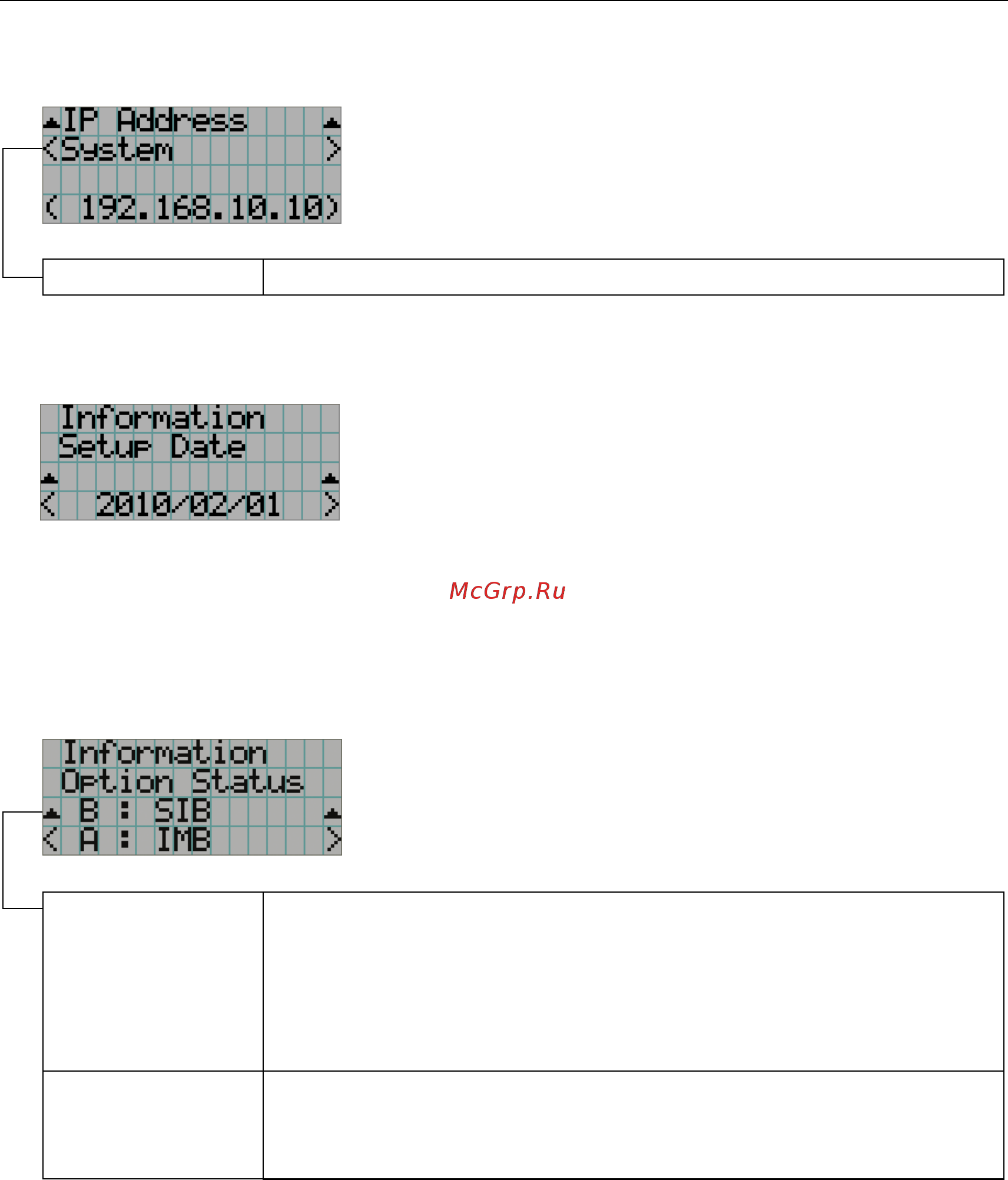

Displays the IP address set in the projector head.
System Displays the IP address set for the projector head (System).
← Displays the IP address.
4-6-7. Setup Date
Displays the date when the projector was set up (starting date of the warranty period).
← Displays the date when the projector was set up (starting date of the warranty
period).
4-6-8. Option Status
Displays the link status of the device mounted in slot A and slot B (signal input board, multi-media switcher, or media block) on
the projector.
Normally the device name mounted in slot A and slot B are displayed. The device name is displayed in ( ) when the projector
is in standby or when connection to the device cannot be confirmed.
B
A
Displays the link status of the device in slot B.
•
SIB: Signal input board
•
MMS: Multi-media switcher
•
IMB: Media block
•
No Board: No device mounted
Displays the link status of the device in slot A.
•
IMB: Media block
•
No Board: No device mounted
← Displays the link status of the device in slot B.
← Displays the link status of the device in slot A.
