40
4. Using Menus

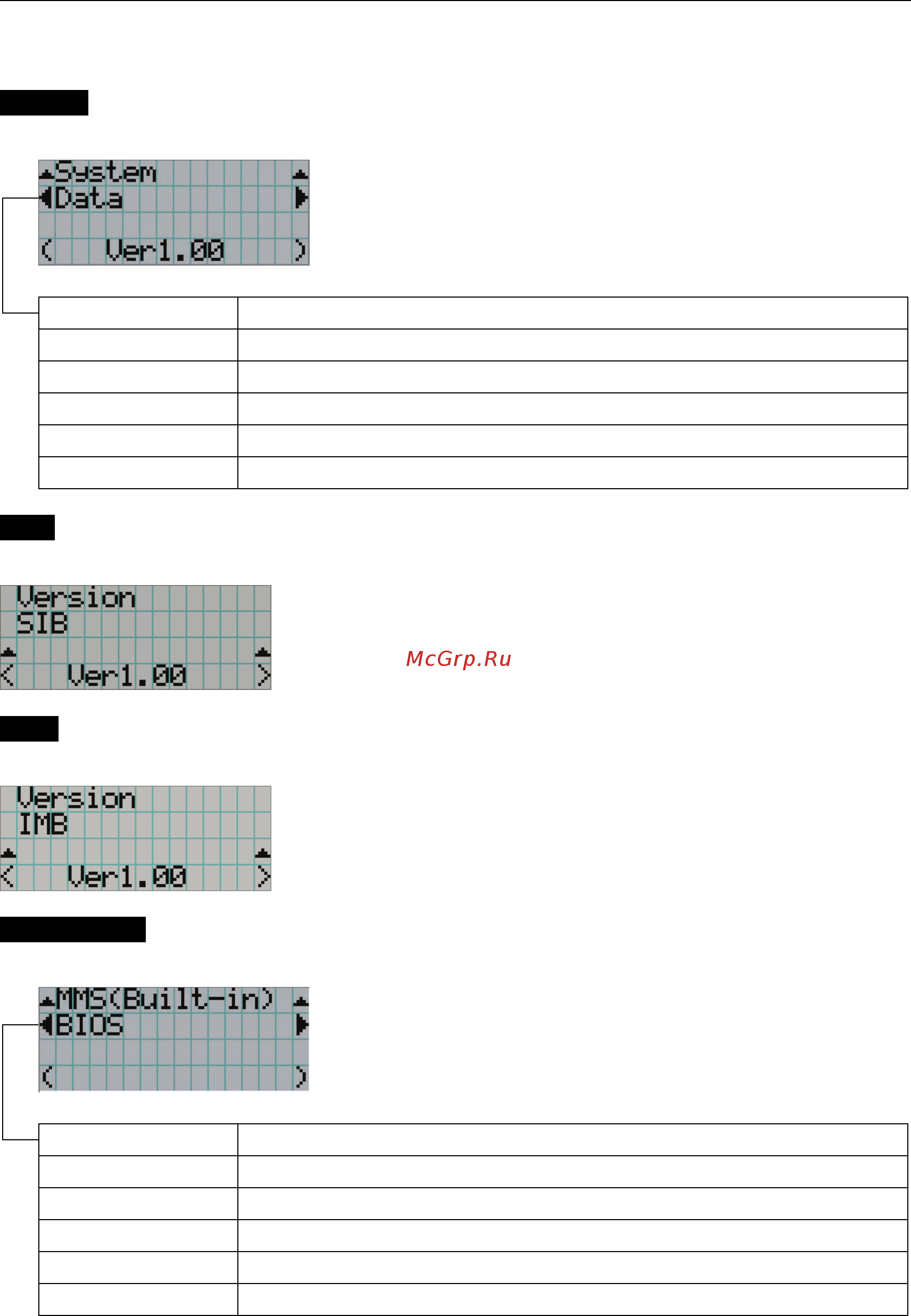

4-6-5. Version
Displays the versions of the projector head, and the multi-media switcher (MMS) (optional).
System
Displays the version information of the projector head.
BIOS
Firmware
Data
Lens
Serial No.
Model
Displays the BIOS version of the projector head.
Displays the firmware version of the projector head.
Displays the data version of the projector head.
Displays the firmware version of the lens mount on the projector.
Displays the serial number of the projector head.
Displays the model name of the projector head.
← Selects the item to display.
← Displays the version information.
SIB
Displays version information of the signal input board (NC-80LB01).
← Displays the version information.
IMB
Displays the version information of the media block (NC-80MB01).
← Displays the version information.
MMS (Built-in)
Displays the version of the built-in multi-media switcher (MM3000B) connected to the projector head.
BIOS
Firmware
Data
FPGA
Cfg FPGA
Serial No.
Displays the BIOS version of the built-in multi-media switcher (MM3000B).
Displays the firmware version of the built-in multi-media switcher (MM3000B).
Displays the data version of the built-in multi-media switcher (MM3000B).
Displays the FPGA version of the built-in multi-media switcher (MM3000B).
Displays the configuration FPGA version of the built-in multi media switcher (MM3000B).
Displays the serial number of the built-in multi-media switcher (MM3000B).
← Selects the item to display.
← Displays the version information.
