ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

Digital Time Alignment settings

Digital Time Alignment sets the delay time of the speaker output to

create a more suitable environment for your vehicle.

• For more information,

Determining the value for [DISTANCE] and [GAIN] of

[DTA SETTINGS].

DTA SETTINGS

POSITION

Selects your listening position (reference point).

ALL

:Not compensating;

FRONT RIGHT:

Front right seat;

FRONT LEFT

:Front left seat;

FRONT ALL

:Front seat

•

[FRONT ALL]

is displayed only when

[2-WAY X’OVER]

is selected.

( 6)

DISTANCE 0CM

610CM

:Fine adjust the distance to compensate. (Before

making an adjustment, select the speaker you want to adjust.)

GAIN –8DB

0DB

:Fine adjust the output volume of the selected speaker.

(Before making an adjustment, select the speaker you want to adjust.)

DTA RESET YES

:Resets the settings (

[DISTANCE]

and

[GAIN]

) of the selected

[POSITION]

to default.;

:Cancels.

CAR SETTINGS

Identify your car type and rear speaker location in order to make the

adjustment for

[DTA SETTINGS]

CAR TYPE COMPACT

FULL SIZE CAR

WAGON

MINIVAN

SUV

MINIVAN(LONG)

:Selects the type of vehicle.;

OFF:

Not compensating.

R-SP LOCATION

Selects the location of the rear speakers in your vehicle to calculate the

furthest distance from the listening position selected (reference point).

•

DOOR

REAR DECK

:Selectable only when

[CAR TYPE]

is selected as

[OFF]

[COMPACT]

[FULL SIZE CAR]

[WAGON]

[SUV]

•

2ND ROW

3RD ROW

:Selectable only when

[CAR TYPE]

is selected

[MINIVAN]

[MINIVAN(LONG)]

AUDIO SETTINGS

•

Before making an adjustment for

[DISTANCE]

and

[GAIN]

[DTA SETTINGS]

, select the

speaker you want to adjust:

When 2-way crossover is selected:

FRONT LEFT

FRONT RIGHT

REAR LEFT

REAR RIGHT

SUBWOOFER

– You can only select

[REAR LEFT]

[REAR RIGHT]

and

[SUBWOOFER]

if a setting other

than

[NONE]

is selected for

[REAR]

and

[SUBWOOFER]

[SPEAKER SIZE]

( 21)

When 3-way crossover is selected:

TWEETER LEFT

TWEETER RIGHT

MID LEFT

MID RIGHT

WOOFER

– You can only select

[WOOFER]

if a setting other than

[NONE]

is selected for

[WOOFER]

[SPEAKER SIZE]

( 21)

•

[R-SP LOCATION]

[CAR SETTINGS]

is selectable only if:

– 2-way crossover is selected.

( 6)

– A setting other than

[NONE]

is selected for

[REAR]

[SPEAKER SIZE]

( 21)

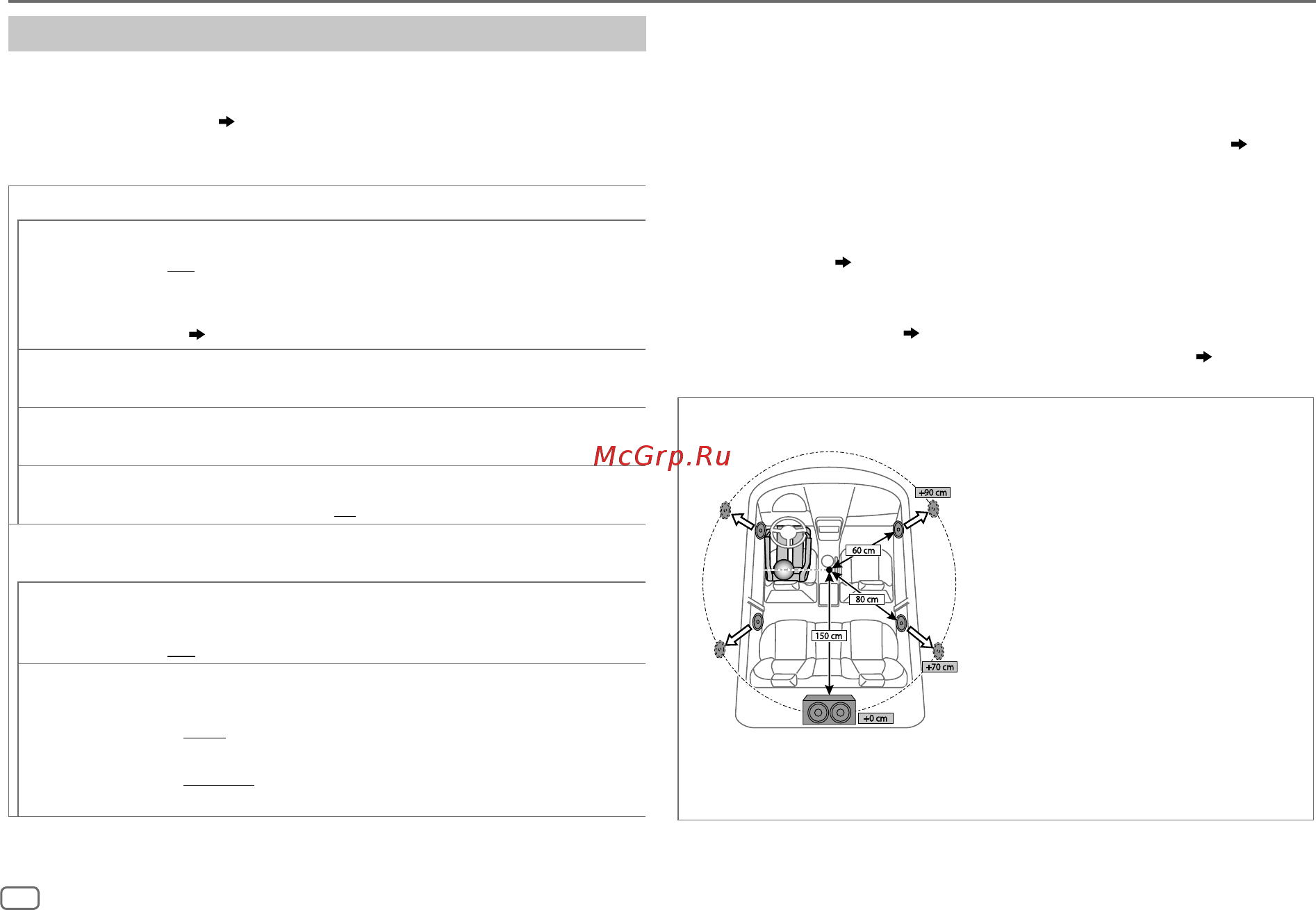

Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS]

If you specify the distance from the center of the

currently set listening position to every speaker,

the delay time will be automatically computed

and set.

Determine the center of the currently set

listening position as the reference point.

Measure the distances from the reference

point to the speakers.

Calculate the differences between the

distance of the furthest speaker (rear

speaker) and other speakers.

Set the

[DISTANCE]

calculated in step

for

individual speakers.

Adjust

[GAIN]

for individual speakers.

Example: When

[FRONT ALL]

is selected as the

listening position

JS_KWD_KMM_BT304_ENE2N_EN_3.indd 22JS_KWD_KMM_BT304_ENE2N_EN_3.indd 22 8/7/2017 9:48:28 AM8/7/2017 9:48:28 AM
