ENGLISH
27
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Basic procedure
1
Remove the key from the ignition switch, then disconnect the
[
terminal of the car battery.
2
Connect the wires properly.
See Wiring connection.
( 28)
3
Install the unit to your car.
See Installing the unit (in-dash mounting).
4
Connect the
[
terminal of the car battery.
5
Press to turn on the power.
6
Detach the faceplate and reset the unit within 5 seconds.
( 3)
Do the required
wiring.
( 28)
Dashboard of
your car
Bend the appropriate tabs to hold the
mounting sleeve firmly in place.
How to remove the unit
1
Detach the faceplate.
2
Remove the trim plate.
3
Insert the extraction keys deeply into the
slots on each side, then follow the arrows
as shown on the illustration.

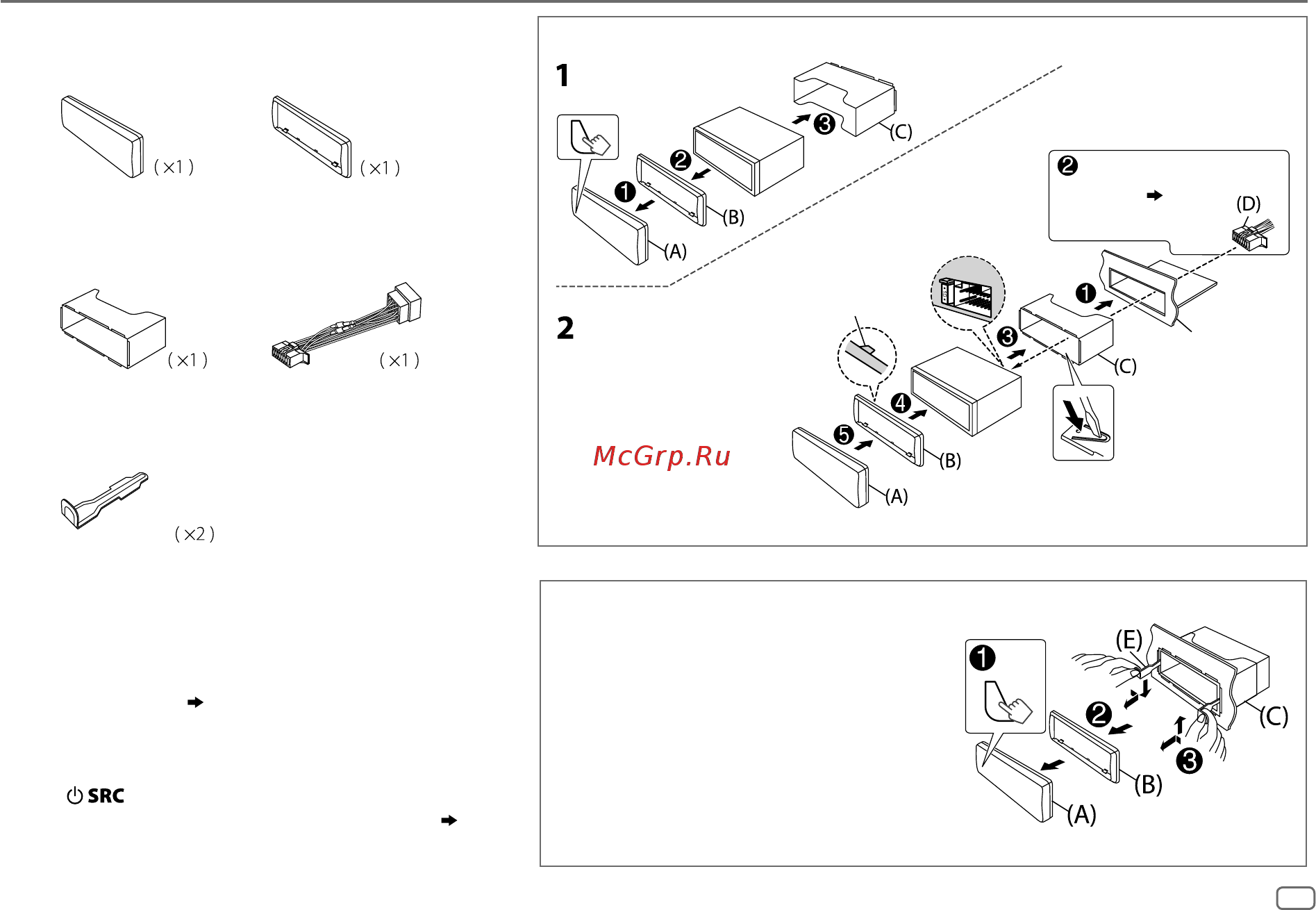

Installing the unit (in-dash mounting)
Hook on the top side
Orientate the trim plate as
illustrated before fitting.
Part list for installation
(A)
Faceplate
(B)
Trim plate
INSTALLATION/CONNECTION
(C)
Mounting sleeve
(D)
Wiring harness
(E)
Extraction key
JS_KWD_KMM_BT304_ENE2N_EN_3.indd 27JS_KWD_KMM_BT304_ENE2N_EN_3.indd 27 8/7/2017 9:48:30 AM8/7/2017 9:48:30 AM
