5 Product description
11
5 Product description
5.1. User interface

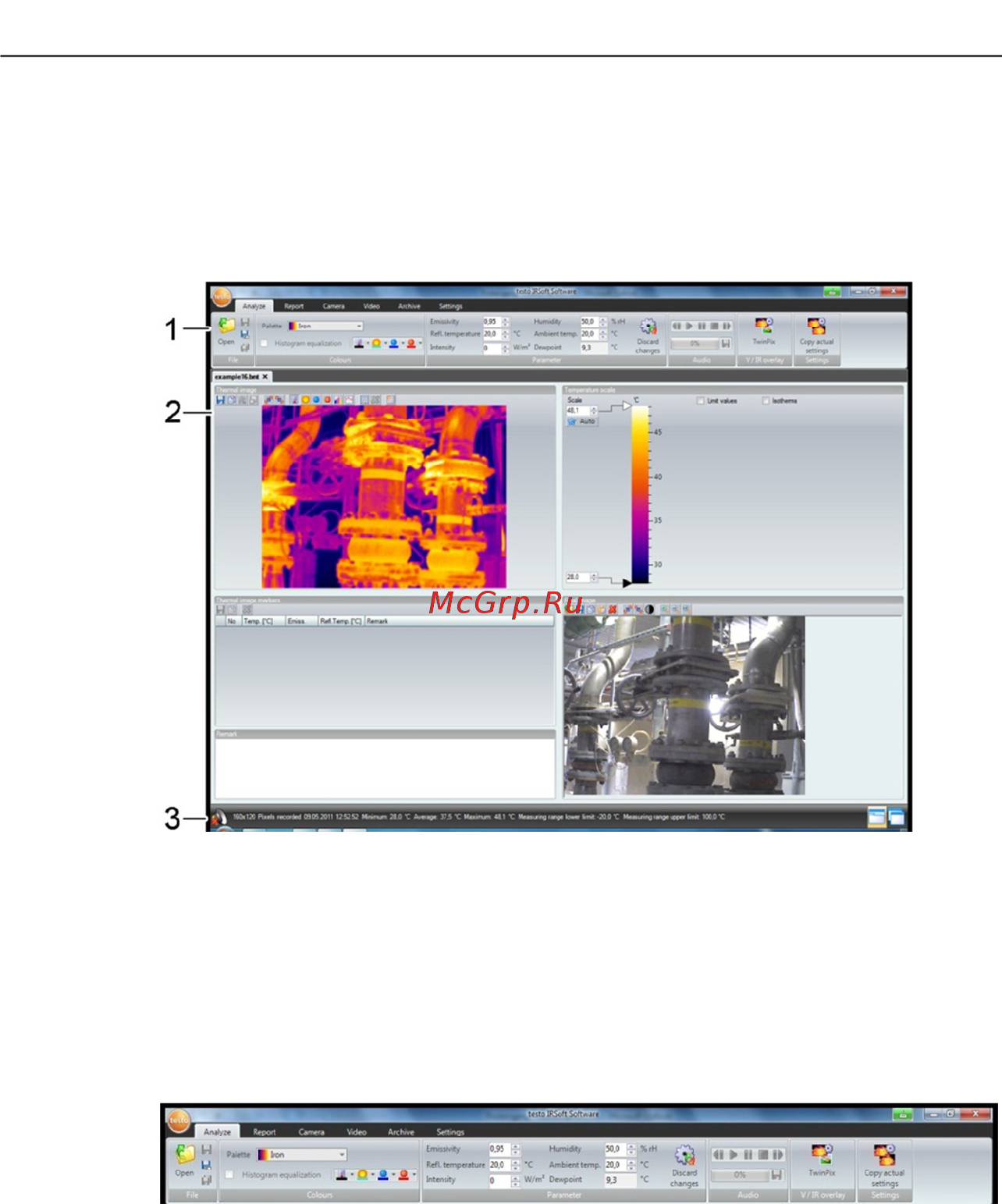

1 Ribbon
2 Work space
3 Status bar
Explanations of the individual areas: see below.
5.2. Ribbon
The ribbon helps you to carry out modifications and settings and to
find the relevant functions and commands quickly.
The functions are divided into different groups on four tabs:
Analysis, Report, Imager and Settings.
The functions/commands vary depending on the tab selected.
The tab Analysis contains function/commands for:
• Opening and saving infrared images
• Setting and copying image properties
• Playing/saving audio comments
• Creating image overlays (IR image - real image)
• Copying image settings
