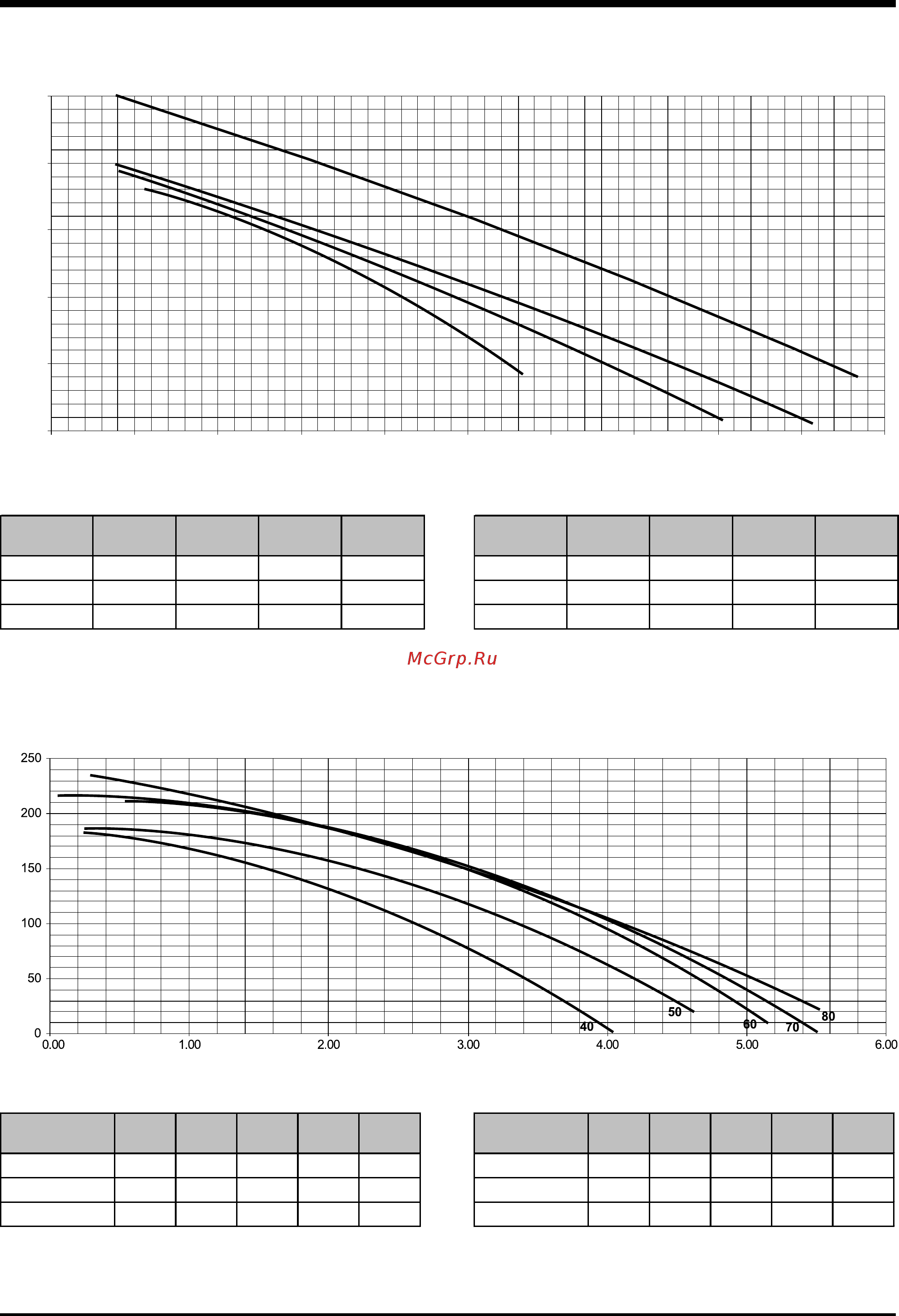

Unit external static pressure
0
50
100
150
200
250
0.40 0.60 0.80 1.00 1.20 1.40 1.60 1.80 2.00 2.20 2.40
20
25
30
35
kPa
Water flow
(
l/s
)
Model 20 Model 25 Model 30 Model 35
Nominal (1) 1.03 1.24 1.43 1.63
Minimum (2) 0.69 0.83 0.95 1.09
Maximum (3) 1.71 2.07 2.38 2.72
kPa
Water flow (l/s)
Water flow
(
l/s
)
Model 20 Model 25 Model 30 Model 35
Nominal (1) 1.1 1.3 1.57 1.79
Minimum (2) 0.74 0.87 1.04 1.19
Maximum (3) 1.84 2.17 2.61 2.98
Water flow
(
l/s
)
Model
40
Model
50
Model
60
Model
70
Model
80
Nominal (1) 1.89 2.28 2.67 3.2 3.63
Minimum (2) 1.26 1.52 1.78 2.13 2.42
Maximum (3) 3.15 3.81 4.45 5.34 6.05
Water flow
(
l/s
)
Model
40
Model
50
Model
60
Model
70
Model
80
Nominal (1) 2.15 2.58 2.96 3.49 3.82
Minimum (2) 1.43 1.72 1.97 2.33 2.55
Maximum (3) 3.58 4.3 4.94 5.81 6.37
Models 20, 25, 30 & 35
Water flow (l/s)
Cooling mode Heating mode
(1) Eurovent conditions, Water : 12 / 7 °C, Air : 35 °C.
(2) With water ∆t : 7.5 K at nominal capacity.
(3) With water ∆t : 3 K at nominal capacity.
(1) Eurovent conditions, Water : 40 / 45 °C, Air : 7 °C.
(2) With water ∆t : 7.5 K at nominal capacity.
(3) With water ∆t : 3 K at nominal capacity.
Models 40, 50, 60, 70 & 80
Cooling mode Heating mode
(1) Eurovent conditions, Water : 12 / 7 °C, Air : 35 °C.
(2) With water ∆t : 7.5 K at nominal capacity.
(3) With water ∆t : 3 K at nominal capacity.
(1) Eurovent conditions, Water : 40 / 45 °C, Air : 7 °C.
(2) With water ∆t : 7.5 K at nominal capacity.
(3) With water ∆t : 3 K at nominal capacity.
Remark : the unit external static pressure curves are based on water average temperature of 10 °C.
