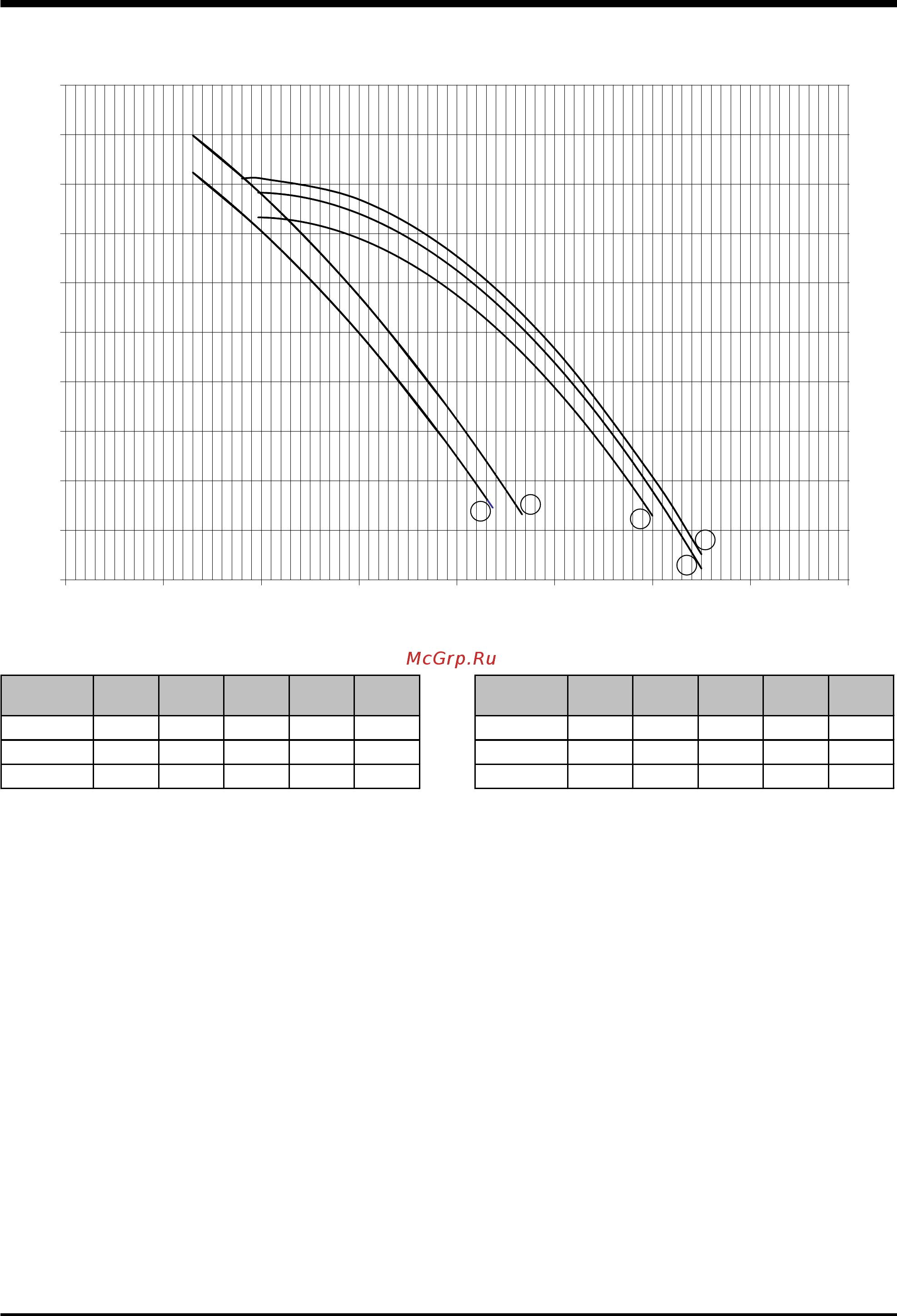

Unit external static pressure (continued)
Models 90 to 130
kPa
Water flow (l/s)
Water flow
(
l/s
)
Model
90
Model
100
Model
110
Model
120
Model
130
Nominal (1) 4.13 4.68 5.35 5.84 6.26
Minimum (2) 2.75 3.12 3.57 3.89 4.17
Maximum (3) 6.88 7.80 8.92 9.73 10.43
Water flow
(
l/s
)
Model
90
Model
100
Model
110
Model
120
Model
130
Nominal (1) 4.56 5.09 6.00 6.49 6.74
Minimum (2) 3.04 3.40 4.00 4.33 4.49
Maximum (3) 7.60 8.49 10.00 10.81 11.23
Cooling mode Heating mode
(1) Eurovent conditions, Water : 12 / 7 °C, Air : 35 °C.
(2) With water ∆t : 7.5 K at nominal capacity.
(3) With water ∆t : 3 K at nominal capacity.
(1) Eurovent conditions, Water : 40 / 45 °C, Air : 7 °C.
(2) With water ∆t : 7.5 K at nominal capacity.
(3) With water ∆t : 3 K at nominal capacity.
Remark : the unit external static pressure curves are based on water average temperature of 10 °C.
