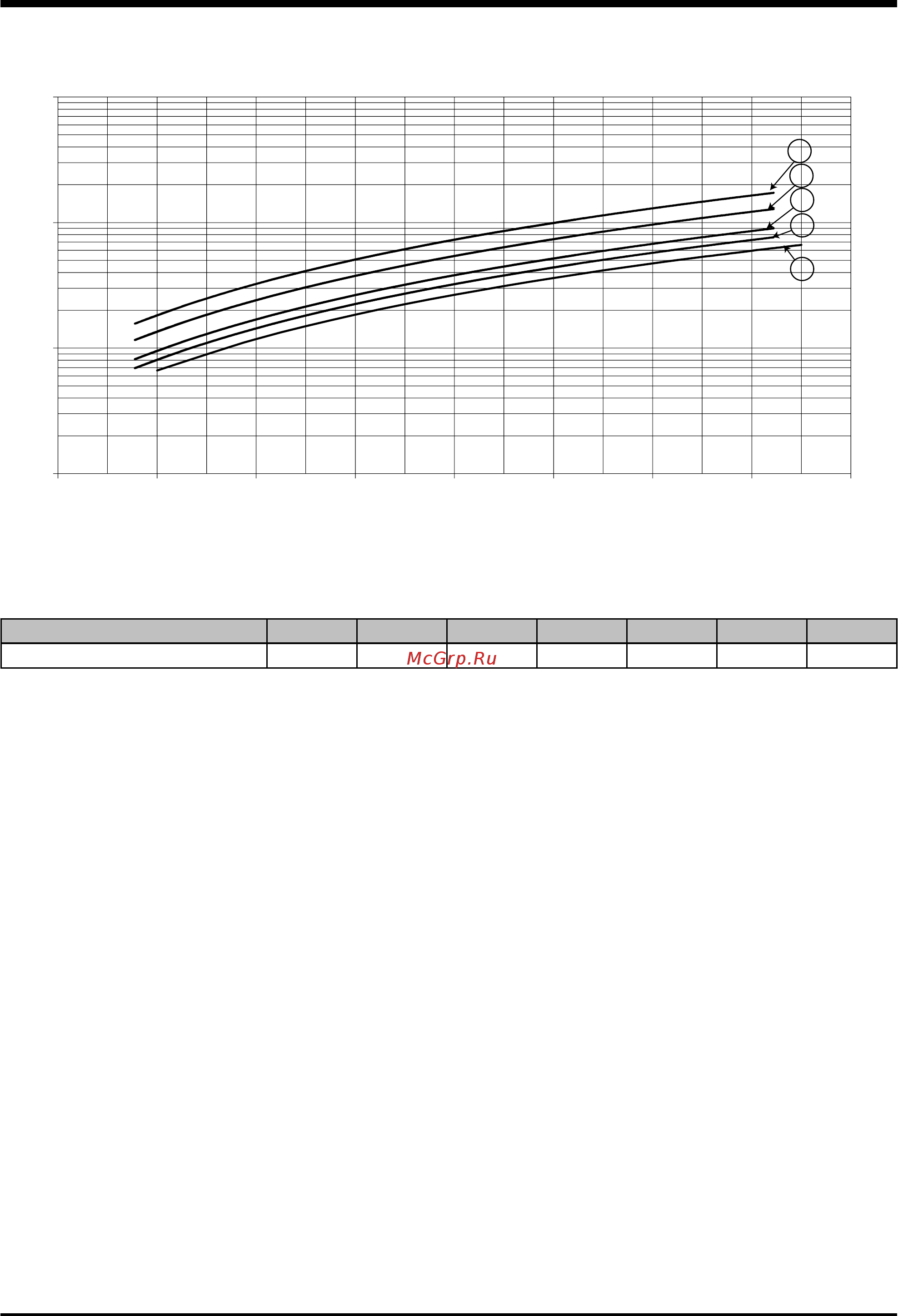

Airwell AQH 130 [20/28] Heat exchanger water pressure drop continued
![Airwell AQH 130 [20/28] Heat exchanger water pressure drop continued](/views2/1408576/page20/bg14.png)
Page 20
kPa
Water flow (l/s)
1
10
100
1000
1098765432
110
90
100
130
120
Remark : the heat exchanger water pressure drop curves are based on water average temperature of 10 °C. For temperatures different
from 10 °C, use the correction factors as stated below :
5 101520304050
Correction factors 1.02 1.00 0.98 0.97 0.95 0.93 0.91
Water average temperature (°C)
Heat exchanger water pressure drop (continued)
Models 90 to 130
